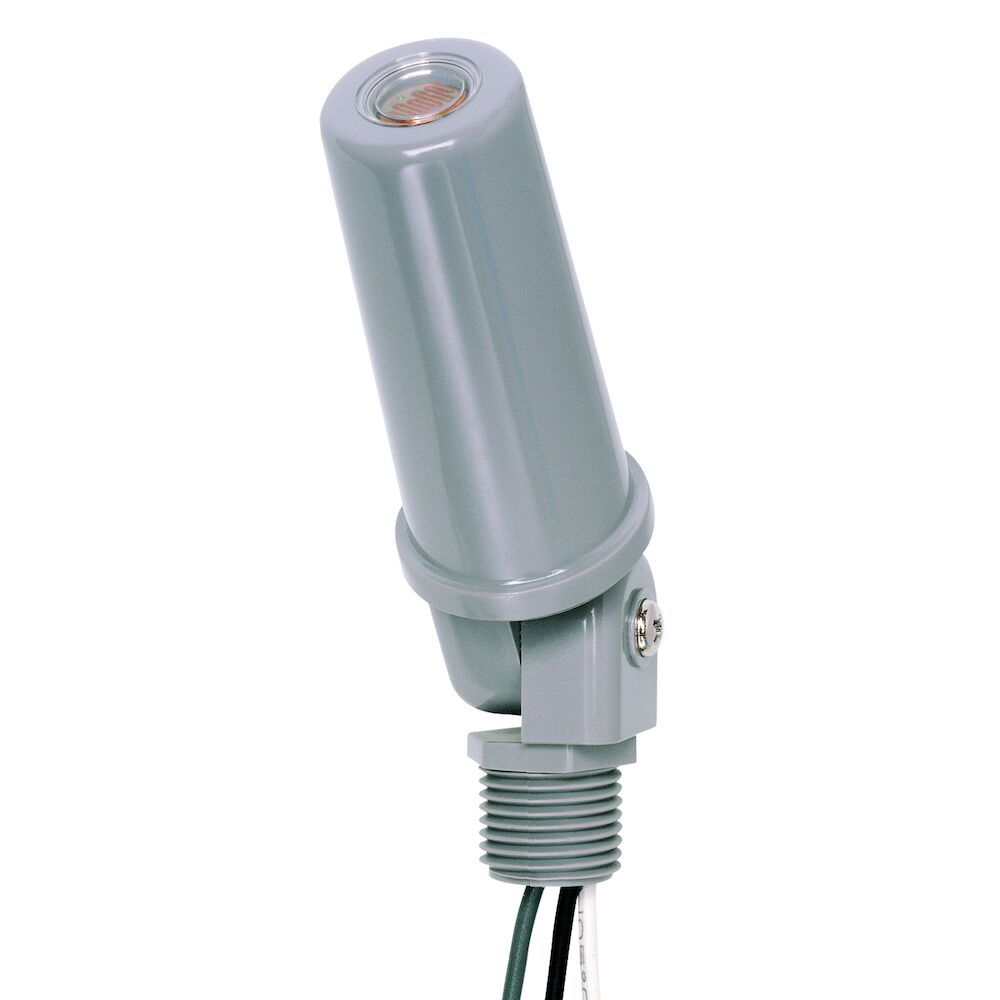

Intermatic K4253 Stem and Swivel Mount Thermal Photocontrol 208 to 277 VAC 50/60 Hz K4253

Product Description

Intermatic K4253 is a stem and swivel mount thermal photocontrol designed for use in outdoor lighting applications. This photocontrol operates on an input voltage of two hundred eight to two hundred seventy-seven volts AC and is suitable for fifty to sixty hertz frequency. It is optimal for controlling lighting fixtures, ensuring functionality during dusk and dawn automatically.

• Swivel arm allows flexible installation on various standard outdoor light fixtures.
• Delay feature helps avoid unwanted off switching caused by headlights or lightning.
• Made from high-strength, UV-resistant plastic for durability.

Product Highlights

This photocontrol is ideal for outdoor lighting control, featuring a mechanical bimetal switch and cadmium sulfide photocell.

Product Information

Standard Information

• Brand: Intermatic
• MPN: K4253

Technical Specifications

• Power Consumption: 2 W
• Operating Temperature: -40 to 158 degrees F
• Mounting Type: Stem and Swivel Fixed Mount
• Supply Voltage: 208 to 277 VAC
• Frequency Rating: 50/60 Hz
• Dimensions: 1-3/8 diameter x 4 height inches
• Sensor Type: Cadmium Sulfide
• Wire Length: 152 mm
• Weather Resistance: UV resistant housing
• Standard: C/US Approval, CSA, Title CA 20 Listed, California Title 24 Compliant
