Intermatic K4251 Photocontrol Thrm 120VAC 1800W 1000VA Replacement MPN

Product Description

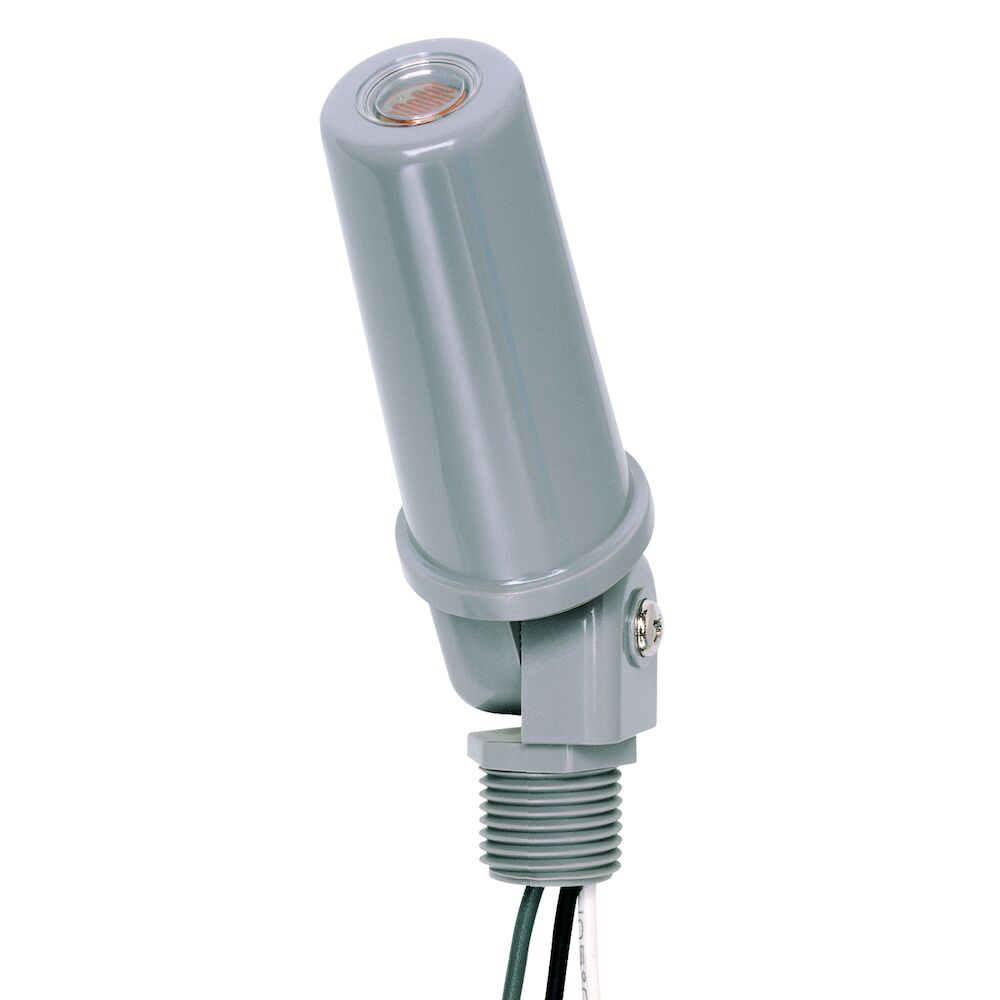

The Intermatic K4251 is a thermal photocontrol designed for 120VAC systems. It provides control for lighting systems up to eighteen hundred watts for tungsten and one thousand volt-amperes for ballasts. This photocontrol is suitable for both outdoor light fixtures and electrical boxes due to its swivel arm installation design.

• Thermal-type photocontrol with cadmium sulfide sensor
• Includes washer gasket and locking nut
• Operates in environments between negative forty to one hundred fifty-eight degrees Fahrenheit

Product Highlights

The K4251 photocontrol helps manage external lighting by automatically switching based on ambient light levels. Designed to mount easily with a swivel base, it ensures long-lasting performance and reliable operation.

Product Information

Standard Information

• Manufacturer: Intermatic
• Brand: Intermatic

Technical Specifications

• Catalog Number: K4251
• Voltage Rating: 120 VAC
• Amperage Rating: 15 A
• Tungsten Load: 1800 W
• Ballast Load: 1000 VA
• Contact Form: SPST
• Timing Range: 30 to 90 seconds
• Cadmium Sulfide Sensor
• Environmental Conditions: -40 to 158 degrees F
• Dimensions: 1-3/8 inches diameter x 4 inches height
