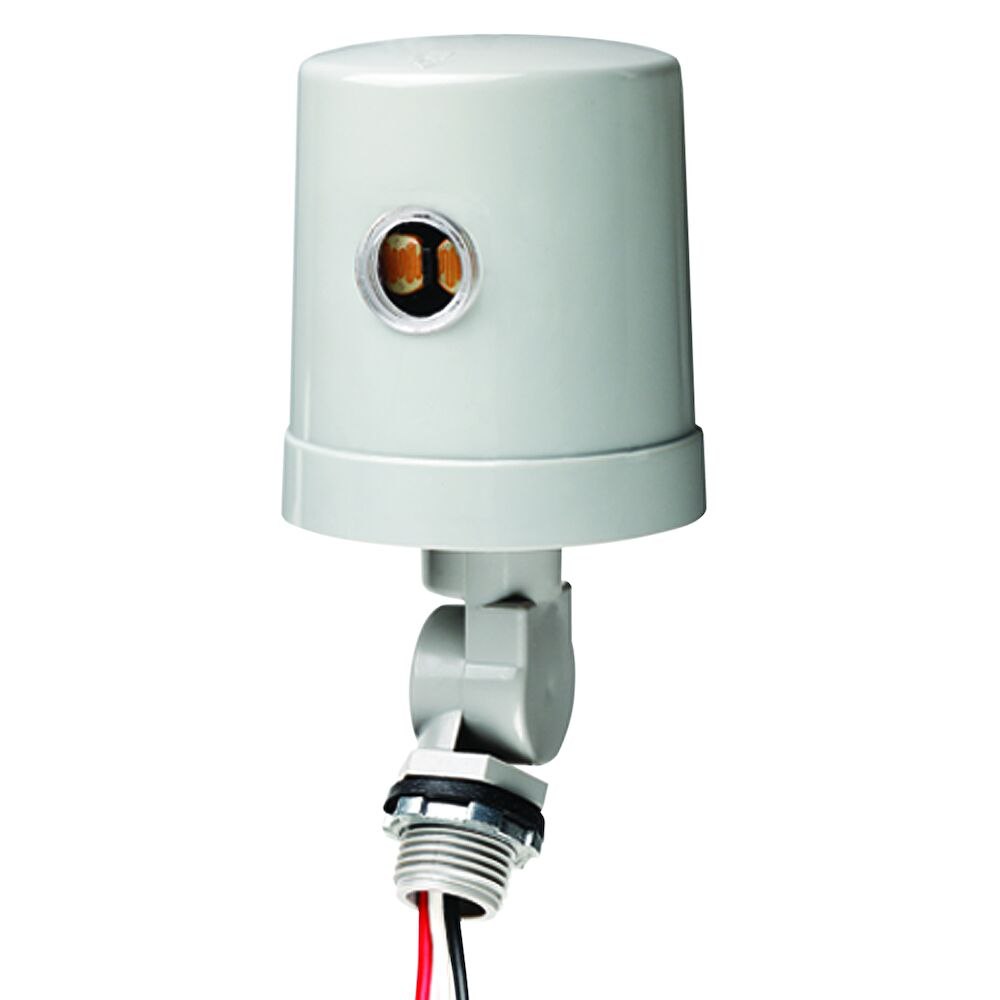

Intermatic K4236C Stem and Swivel Mount Thermal Photocontrol 120 to 277 VAC 1800 to 4150 W

Product Description

The Intermatic K4236C is a stem and swivel mount thermal photocontrol for outdoor lighting applications. It operates at a voltage range of one hundred twenty to two hundred seventy-seven VAC and can handle a power rating between one thousand eight hundred and four thousand one hundred fifty watts. This unit is ideal for various lighting setups including parking lots, streets, and pathways.

• Swivel arm for flexible installation on fixtures
• Delay feature to prevent undesired switching
• Robust UV-resistant construction for durability

Product Highlights

This photocontrol utilizes a mechanical bimetal switch with a Cadmium Sulfide photocell, providing efficient dusk till dawn operation.

Product Information

Standard Information

• Brand: Intermatic
• MPN: K4236C

Technical Specifications

• Input Voltage: 120 - 277 VAC
• Power Rating: 1800 - 4150 W
• Amperage: 15/8.3 A
• Mounting Type: Stem and Swivel Fixed Mount
• Temperature Rating: -40 to +158 °F
• Wire Size: 18 AWG
• Material: Polycarbonate
• Sensor Type: Thermal photocontrol
• Warranty: 2 years
