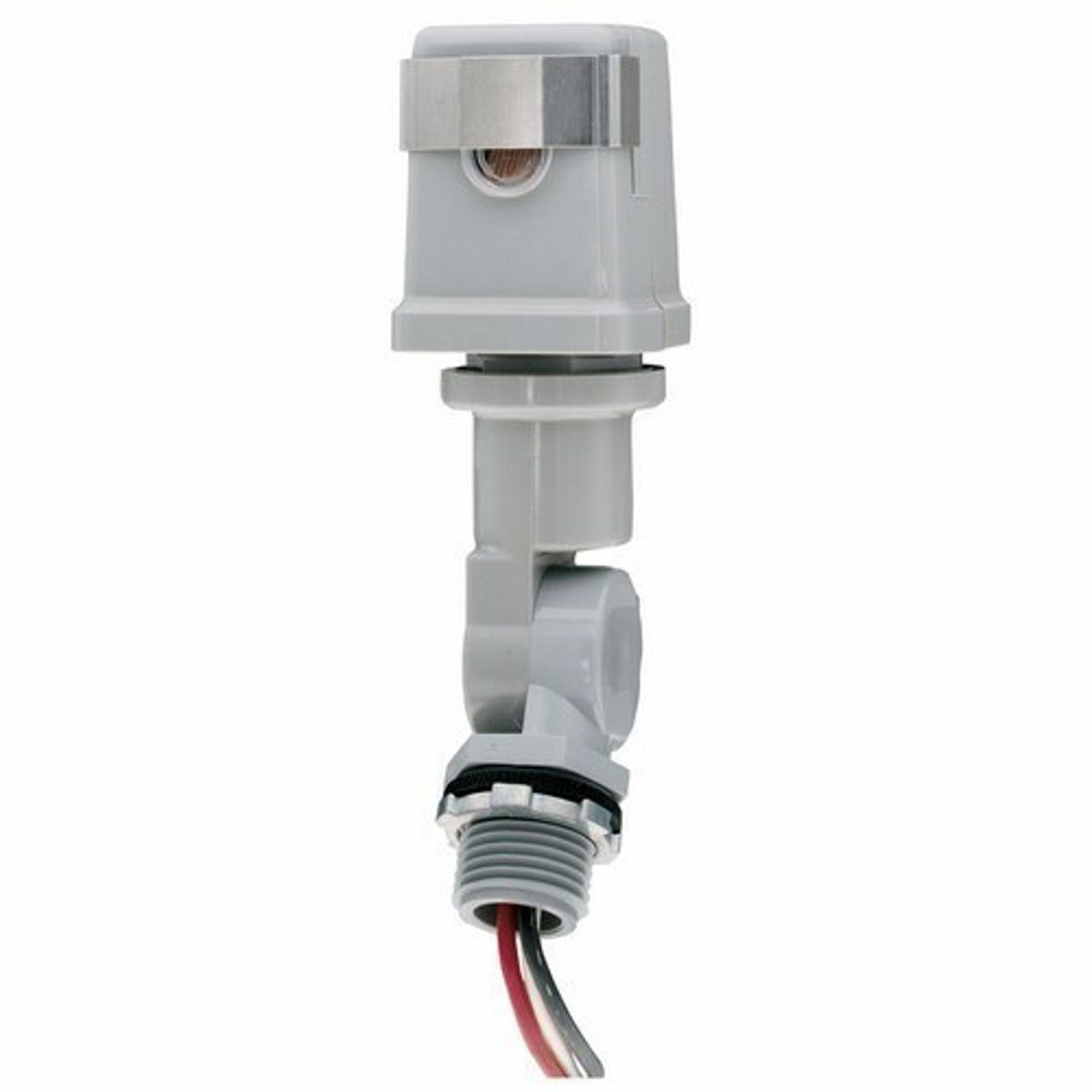

Intermatic K4223C Stem and Swivel Mounting Photocontrol 208 to 277 VAC

Product Description

The Intermatic K4223C is a stem and swivel mounting photocontrol that operates at a voltage range of 208 to 277 VAC. It controls lighting and is designed for outdoor use, enabling easy installation on standard lighting fixtures or electrical boxes.

• Operates within the voltage range of 208 to 277 VAC.
• Features a thermal photo control with a Cadmium Sulfide sensor.
• Includes a swivel arm for flexible mounting options.

Product Highlights

This product provides effective dusk-to-dawn lighting control, ensuring reliability in various environmental conditions.

Product Information

Standard Information

• Manufacturer: Intermatic
• Catalog Number: K4223C

Technical Specifications

• Voltage Rating: 208 to 277 VAC
• Amperage Rating: 15/8.3 A
• Tungsten Rating: 3100 to 4150 W
• Ballast Load: 1700 to 2300 VA
• Contact Form: SPST
• Timing Range: 30 to 90 s
• Environmental Conditions: -40 to 158 deg F operating temperature
• Wire Size: 18 AWG with 6 in leads
