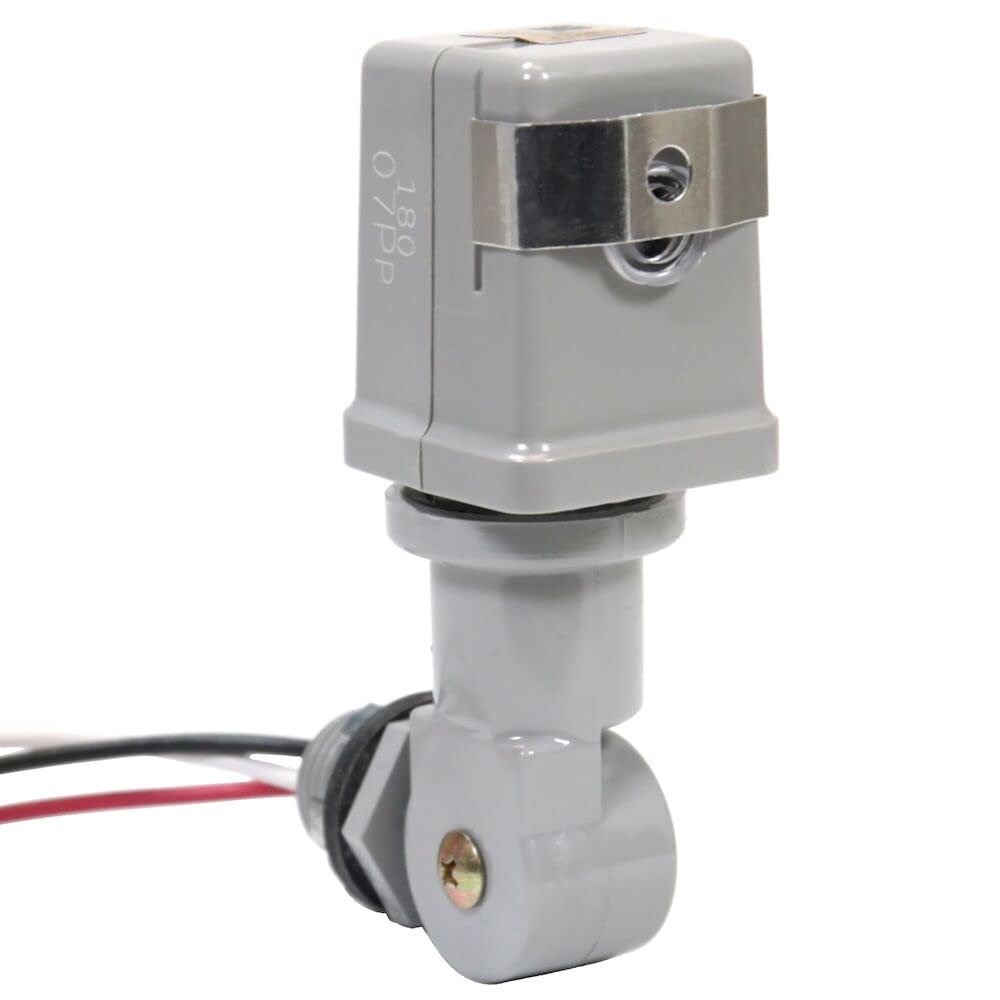

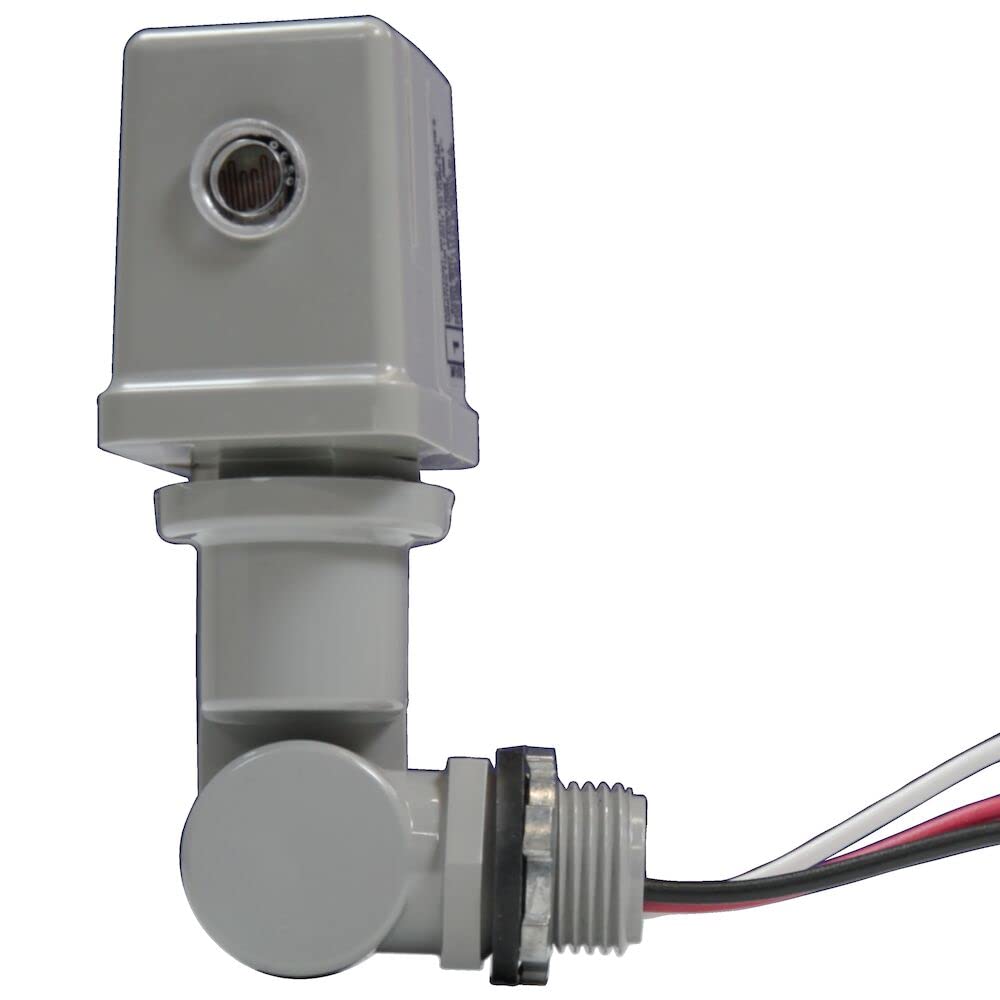

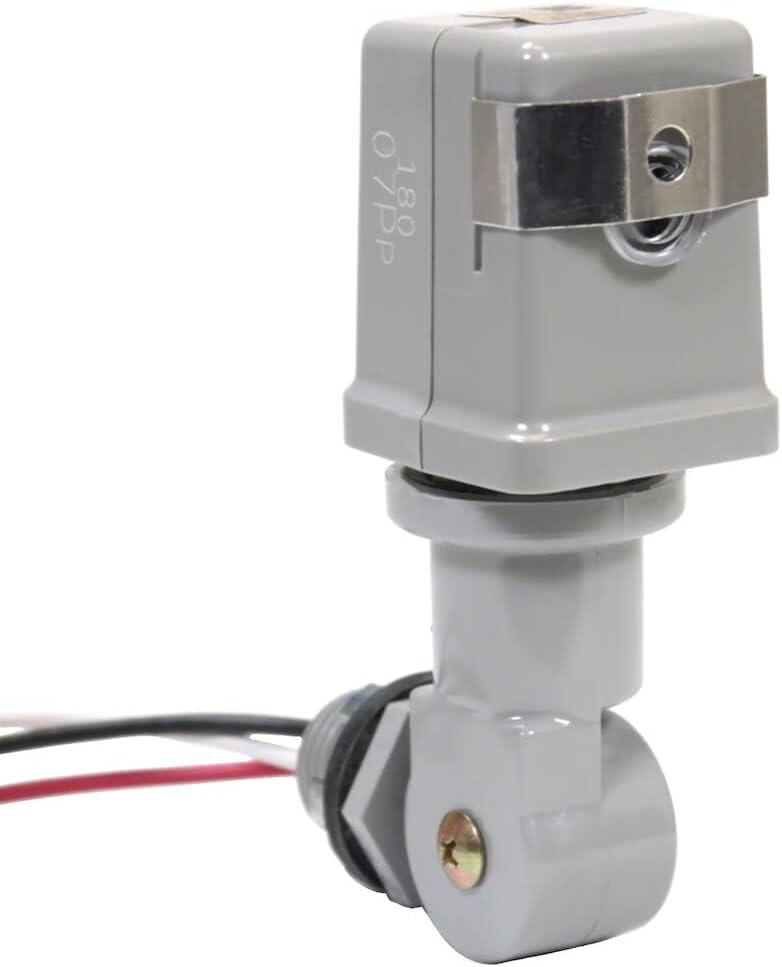

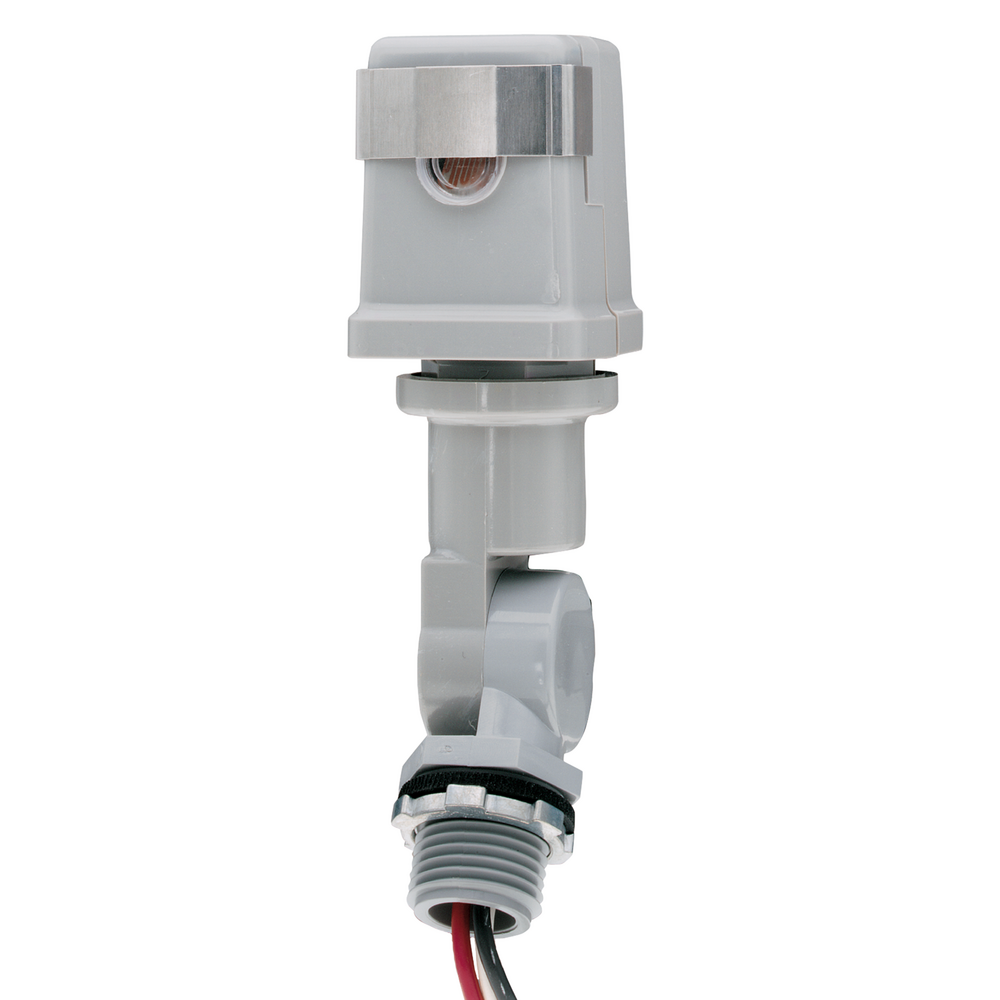

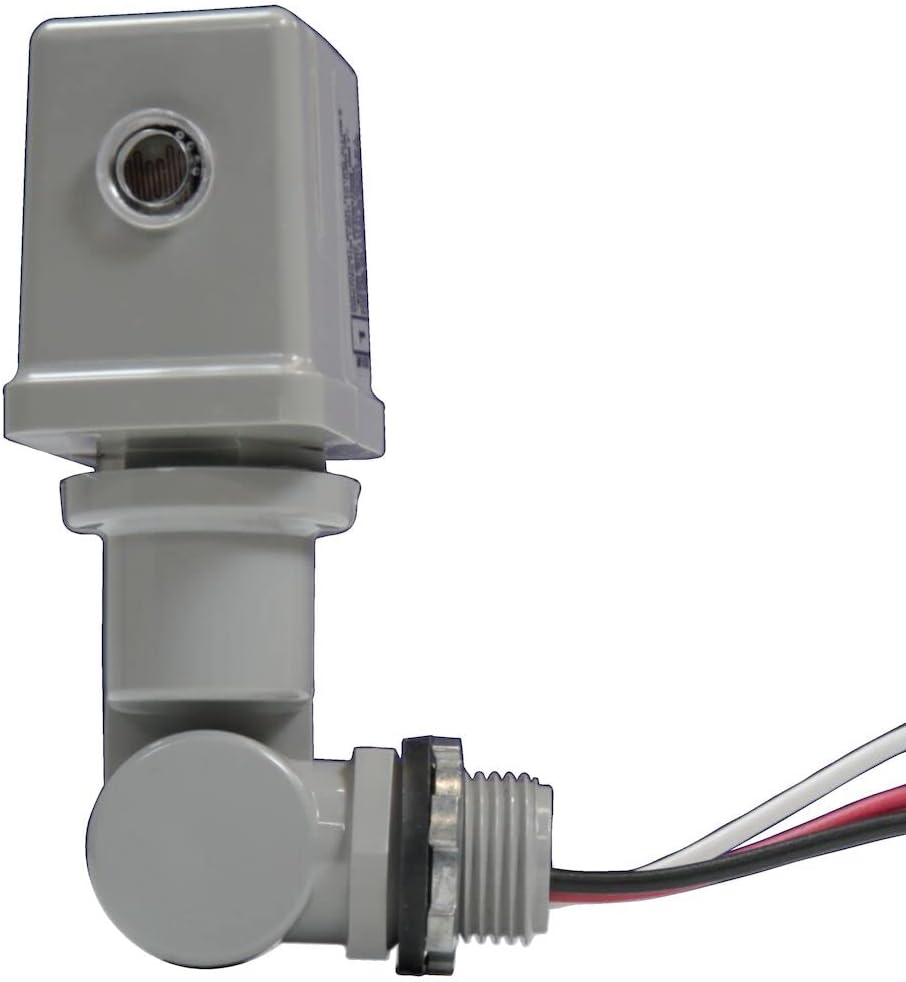

Intermatic K4221C Stem and Swivel Mount Thermal Photocontrol 120-Volt 1/2 Inch Male Pipe Thread

Product Description

The INTERMATIC K4221C is a 120-Volt Stem and Swivel Mount Thermal Photocontrol designed for reliable dusk-to-dawn control of outdoor lighting. This unit features a mechanical bimetal switch with a Cadmium Sulfide photocell, ensuring automatic ON/OFF operation. Its high-strength, UV-resistant housing and 1/2 inch-14 NPSM threaded stem allow for flexible installation on standard outdoor light fixtures or electrical boxes. It is compatible with Fluorescent, HID, and Incandescent lighting applications.

• 120-Volt operation for various lighting systems.
• Stem and Swivel Mount design for flexible installation and optimal sensor positioning.
• Mechanical bimetal switch with Cadmium Sulfide photocell for reliable dusk-to-dawn control.

Product Highlights

Provides automatic dusk-to-dawn lighting control for outdoor fixtures.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: K4221C
• Country of Origin: MEXICO

Technical Specifications

• Brand: Intermatic
• MPN: K4221C
• Model Number: K4221C
• Part Number: K4221C
• Color: Gray
• Photocontrol Style: Stem and Swivel Mount
• Housing Material: Hard Plastic, CVC material
• Certifications: cCSAus, cULus
• Input Voltage: 120 VAC, 50/60 Hz
• Activation Off: 3 to 15 fc
• Activation On: 1 to 5 fc
• Load Compatibility: Fluorescent, HID, Incandescent
• Fail Mode: ON
• Magnetic Ballast Load Rating: 8.3 A, 1000 VA
• Photo Control Switch Type: Mechanical Bimetal
• Photocell Type: Cadmium Sulfide
• Photocontrol Sensor Location: Side
• Photocontrol Type: Thermal
• Sensor Time Delay: 30 sec to 90 sec
• Stem Diameter: 1/2"
• Stem Thread Size: 1/2" - 14
• Stem Thread Type: NPSM
• Electrical Switch Type: SPST
• Tungsten Incandescent Load Rating: 15 A, 1800 W
• Usage Environments: Outdoor
• Wire Size Max: #18 AWG
• Wiring Option: Wire leads
• Operating Temperature Max (C): 70
• Operating Temperature Max (F): 158
• Operating Temperature Min (C): -40
• Operating Temperature Min (F): -40
• Housing Features: High strength, UV resistant
• LED Compatibility: Not suited for LED applications
