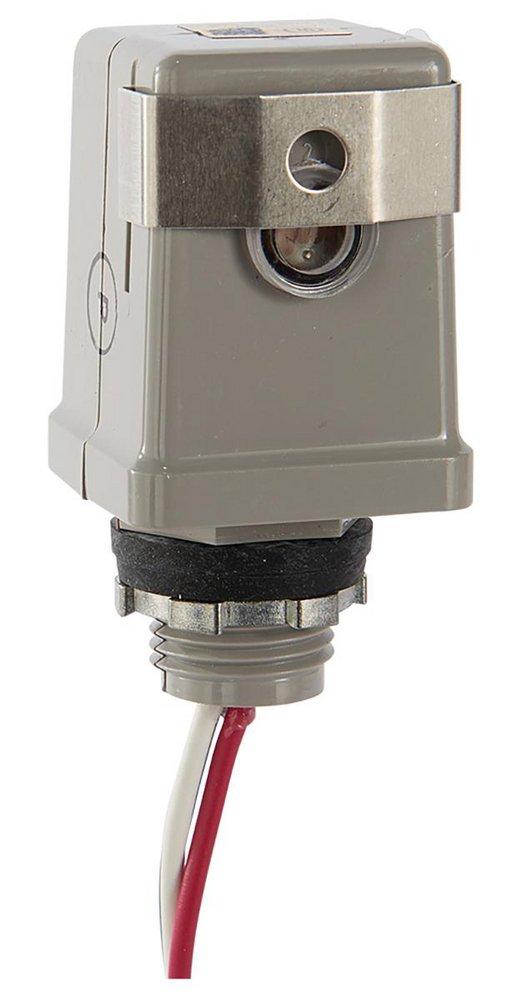

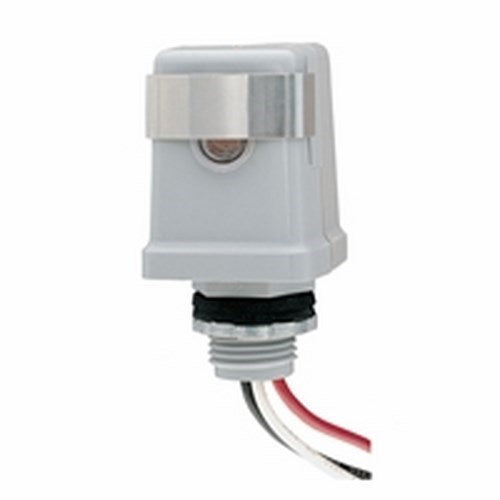

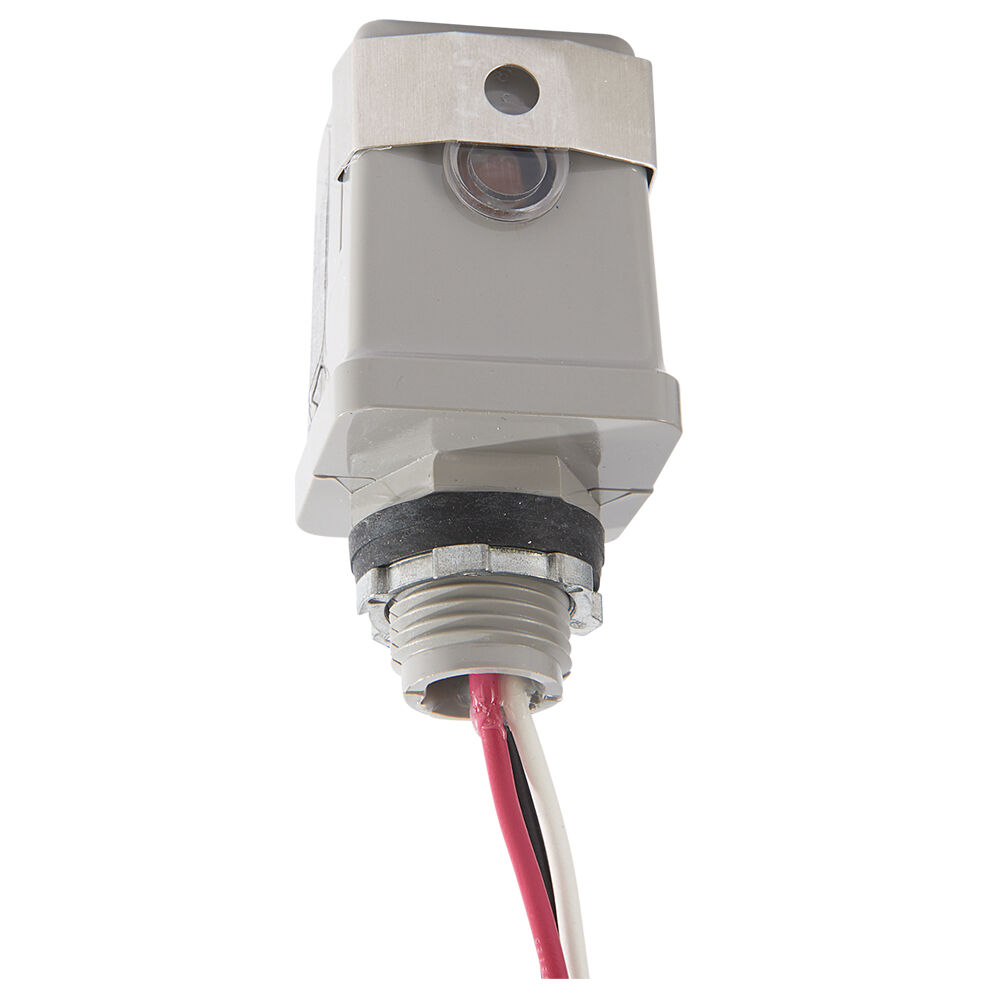

Intermatic K4123C Stem Mounting Photocontrol 208 to 277VAC

Product Description

Intermatic Stem Mounting Photocontrol K4123C is designed for outdoor applications. It operates on a voltage range of 208 to 277VAC and is suitable for controlling dusk-to-dawn lighting. This unit uses a thermal cadmium sulfide sensor for reliable light detection.

• Designed for outdoor fixtures and electrical boxes
• Delay feature prevents unwanted off-switching
• Easy installation with included washer gasket and locking nut

Product Highlights

The photocontrol provides automatic ON/OFF operation based on ambient light levels.Certified for compliance with California Title 24 standards.

Product Information

Standard Information

• Manufacturer: Intermatic
• Catalog Number: K4123C

Technical Specifications

• Voltage Rating: 208 to 277VAC
• Amperage Rating: 15/8.3 A
• Frequency Rating: 50/60 Hz
• Tungsten Rating: 3100 to 4150 W
• Ballast Load: 1700 to 2300 VA
• Sensor Type: Thermal/Cadmium Sulfide
• Mounting Type: Stem
• Dimensions: 1-9/16 in L x 1-9/16 in W x 3 in H
• Environmental Conditions: -40 to 158 degrees F
