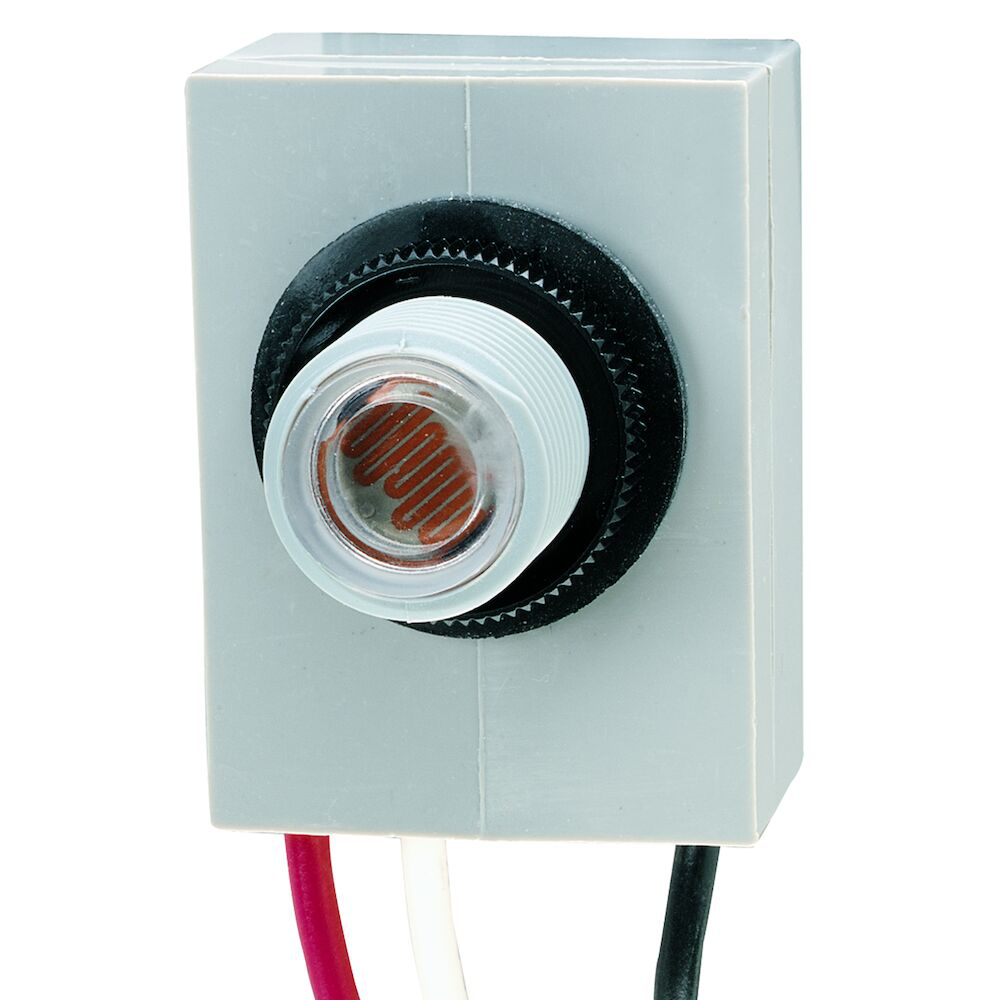

Intermatic K4023C Photocontrol HSG 208 To 277VAC FL 15A

Product Description

The Intermatic K4023C is a thermal photocontrol designed for 208 to 277 volts AC applications. It features a compact design that fits into standard outlet boxes, post lamps, or in-wall boxes. This unit provides dusk-to-dawn ON/OFF control for outdoor lighting systems.

• Thermal type photocontrol for reliable performance
• Delay function prevents unwanted OFF switching from car headlights
• Easy installation into various fixtures

Product Highlights

The K4023C is suited for various outdoor lighting applications such as parking lots and street lighting.

Product Information

Standard Information

• Brand: Intermatic
• MPN: K4023C

Technical Specifications

• Voltage Rating: 208 to 277 VAC
• Amperage Rating: 15 A
• Tungsten Rating: 3100 to 4150 W
• Ballast Load: 1700 to 2300 VA
• Frequency Rating: 50/60 Hz
• Operating Temperature: -40 to 158 degrees F
• Dimensions: 46 mm H x 23.8 mm W x 20.6 mm D
• Wire Size: 18 AWG
• Mounting Type: Flush Mount
• Environmental Conditions: IP rated for moisture resistance
