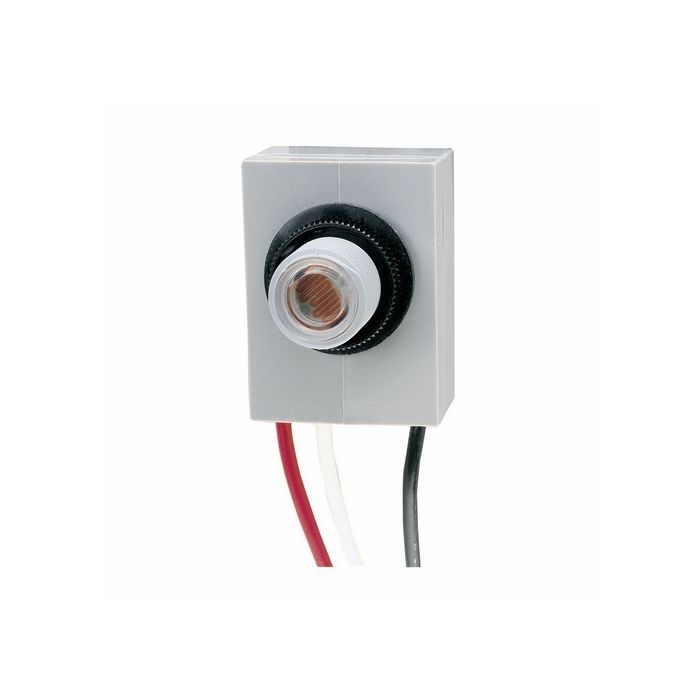

Intermatic K4021C 120 thermal photocontrol 120 vac 15 amp fixed mount

Product Description

The INTERMATIC K4021C 120 Thermal Photocontrol is designed for automatic dusk-to-dawn ON/OFF control of outdoor lighting. This compact 120 VAC, 15 A unit features a mechanical bimetal switch with a Cadmium Sulfide photocell, ensuring reliable operation. It fits into standard lighting fixtures, post lamps, and wall boxes, providing efficient light management for various outdoor applications.

• Mechanical bimetal switch with Cadmium Sulfide photocell
• Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures
• Delay feature prevents unwanted OFF switching

Product Highlights

Dusk-to-dawn control for outdoor lighting with compact, reliable design.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: K4021C 120

Technical Specifications

• Manufacturer: INTERMATIC
• Input Voltage: 120 VAC
• Current Rating: 15 A
• Frequency: 50/60 Hz
• Timing Range: 30 to 90 s
• Wire Size: 18 AWG
• Sensor Type: Photocontrol
• Color: Gray
