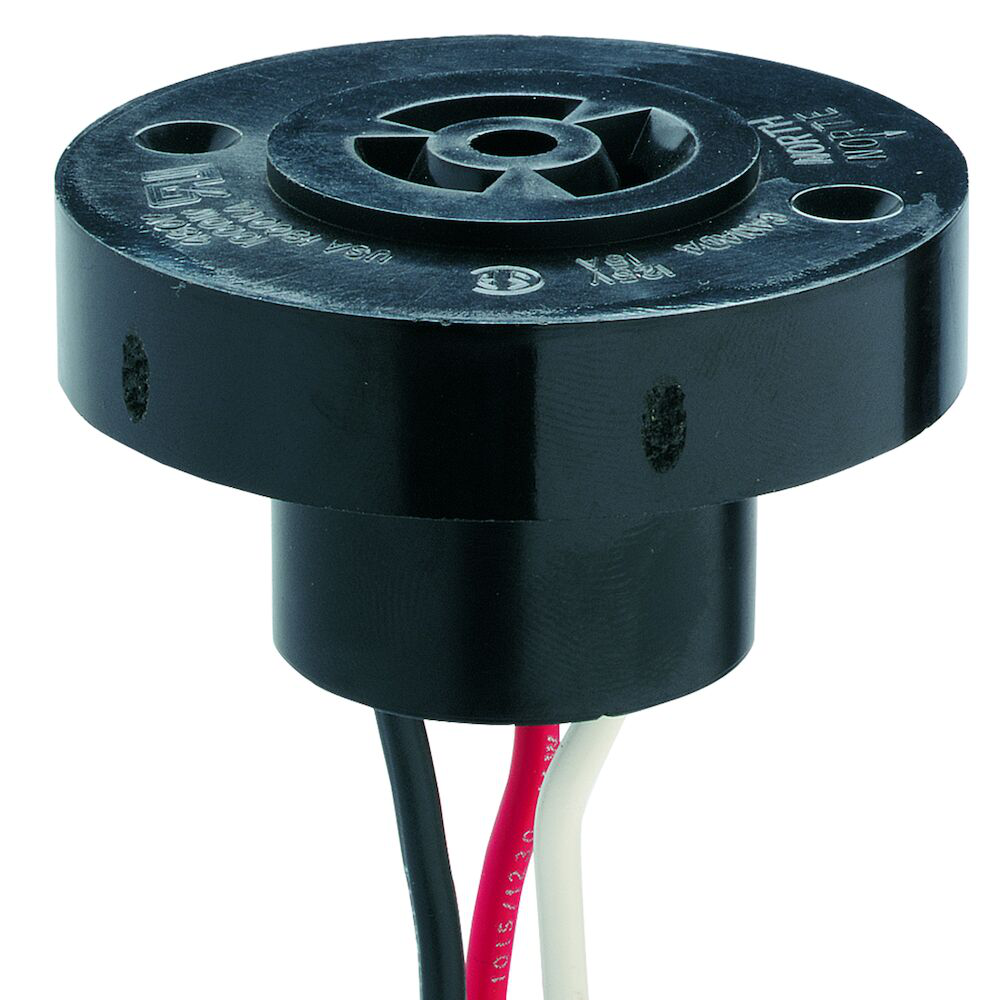

Intermatic K121 receptacle turn-lock twistlock pole brkt

Product Description

The Intermatic K121 is a NEMA receptacle designed for twist lock photocontrols. It operates on a voltage range of one hundred five to four hundred eighty volts alternating current and supports a maximum amperage of fifteen amps. This receptacle features pole bracket mounting, making it suitable for various applications including lighting fixtures in outdoor settings. The K121 can be installed directly in lighting fixtures or externally with a mounting bracket when using K122.

• Voltage rating: 105 to 480 VAC
• Amperage rating: 15 A
• NEMA 3-prong receptacle with 9-inch wire lead

Product Highlights

This receptacle is compliant with ANSI C136.10 standards, ensuring reliability in outdoor and commercial lighting applications.

Product Information

Standard Information

• Brand: Intermatic
• MPN: K121

Technical Specifications

• Type: 2-Conductor Phenolic
• Material: Phenolic
• Dimensions: 3 inches diameter x 2.75 inches length
• Mounting configuration: Pole Bracket
• Photocontrol type: Twistlock
• Includes: Gasket
• Suitable for use with: Twist lock photocontrols
