Intermatic IOS-HB-U 15-80FT Ceiling Mnt 1200-2800SF Occ Snr

Product Description

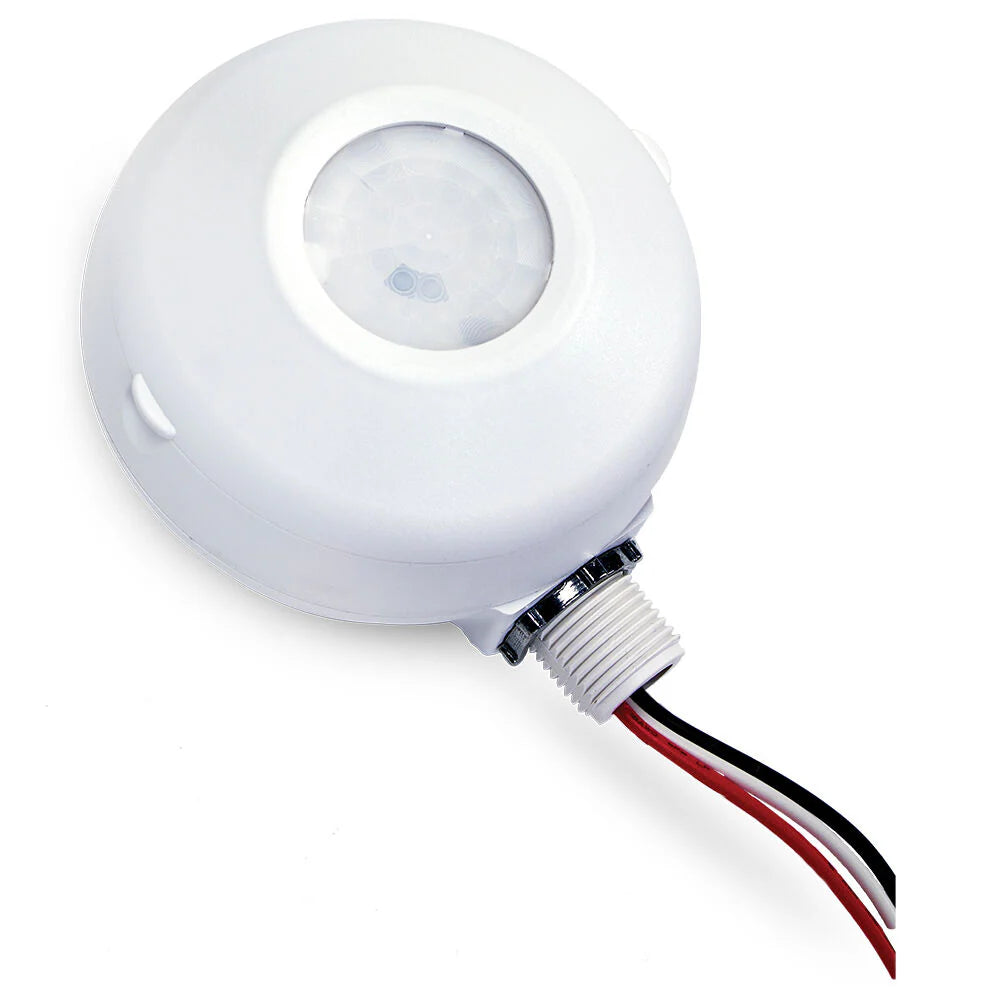

The Intermatic IOS-HB-U is an occupancy sensor tailored for high bay applications in commercial and industrial environments. It features passive infrared sensing technology to automate lighting control in areas such as warehouses, gymnasiums, and similar settings. The sensor can manage light activation based on the presence or absence of people, improving energy efficiency and operational convenience.

• Passive Infrared (PIR) sensing for effective presence detection.
• Offers coverage of up to two thousand eight hundred square feet with interchangeable lenses.
• Compatible with various lamp types including CFL, fluorescent, incandescent, and LED.

Product Highlights

This product is constructed for ceiling mounting and operates within a voltage range of one hundred twenty to two hundred seventy-seven volts. With a response time adjustable between fifteen seconds and thirty minutes, it suits different lighting requirements.

Product Information

Standard Information

• Catalog Number: IOS-HB-U
• Brand: Intermatic

Technical Specifications

• Manufacturer: Intermatic
• Voltage: 120-277 V
• Load Type: 1600 VA @ 277 VAC (Inductive Ballast), 800 VA @ 120 VAC, 800 W @ 120 VAC (Incandescent)
• Height: 2-3/4 Inches
• Weight: 0.6 lb
• Mounting Type: Ceiling
• Sensing Range: 360 degrees, 1200 sq ft (Lens 1) and 2800 sq ft (Lens 2)
• Temperature Rating: 32 - 131 degrees F
• Warranty Length: 2 years
• Standard Compliance: UL/cUL Listed, cULus Listed, Title CA 20 Listed
