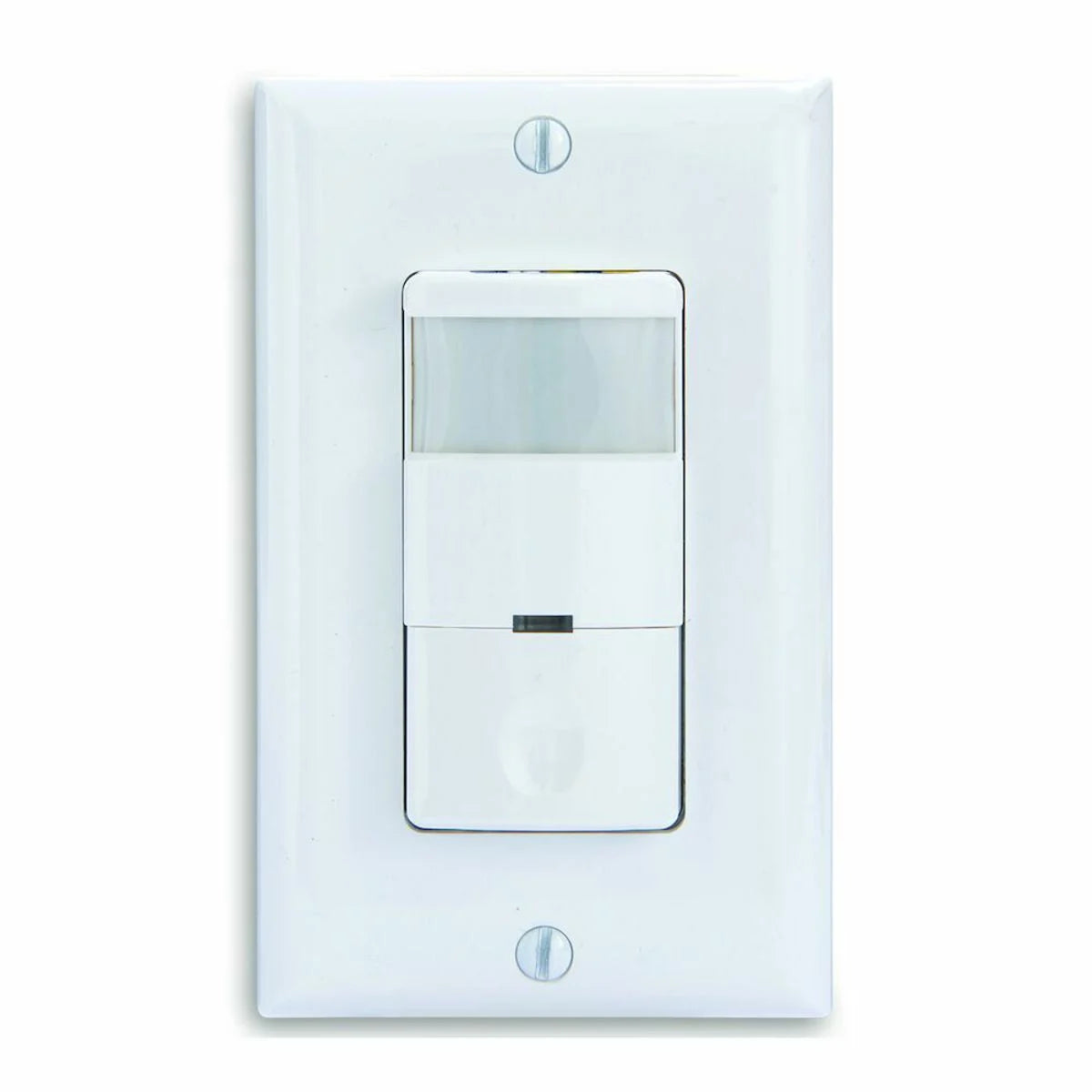

Intermatic IOS-DSR-WH Commercial Grade Self-Adaptive In-Wall PIR Occupancy/Vacancy Sensor, No Neutral Required, White

Product Description

The Intermatic IOS-DSR-WH is a commercial grade self-adaptive in-wall PIR occupancy/vacancy sensor. This unit requires no neutral wire and operates on a voltage range of one hundred twenty to two hundred seventy-seven VAC. It is designed for wall mounting and features a passive infrared sensing technology that detects human presence by sensing changes in heat. The sensor can manage a power output of eight hundred to sixteen hundred Watts, covering an area of one thousand two hundred square feet. This unit incorporates advanced features like automated time delay settings and walk-through detection, ensuring efficient energy management.

• Passive infrared technology for detecting occupancy
• Coverage area up to one thousand two hundred square feet
• No neutral wire required for installation

Product Highlights

The IOS-DSR-WH sensor automatically adjusts its sensitivity based on surrounding conditions and occupancy patterns, making it a versatile addition for various environments, such as offices and conference rooms.

Product Information

Standard Information

• Brand: Intermatic
• Catalog Number: IOS-DSR-WH

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Power Rating: 800/1600 W
• Coverage: 1200 sq-ft
• Control Output: ON/OFF
• Dimensions: 1.63 in H x 1.69 in W x 1.3 in D
• Sensor Type: Passive Infrared
• Viewing Angle: 180 deg
• Temperature Rating: 32 to 131 deg F
• Time Delay: 15 s to 30 min
• Mounting Type: Wall
