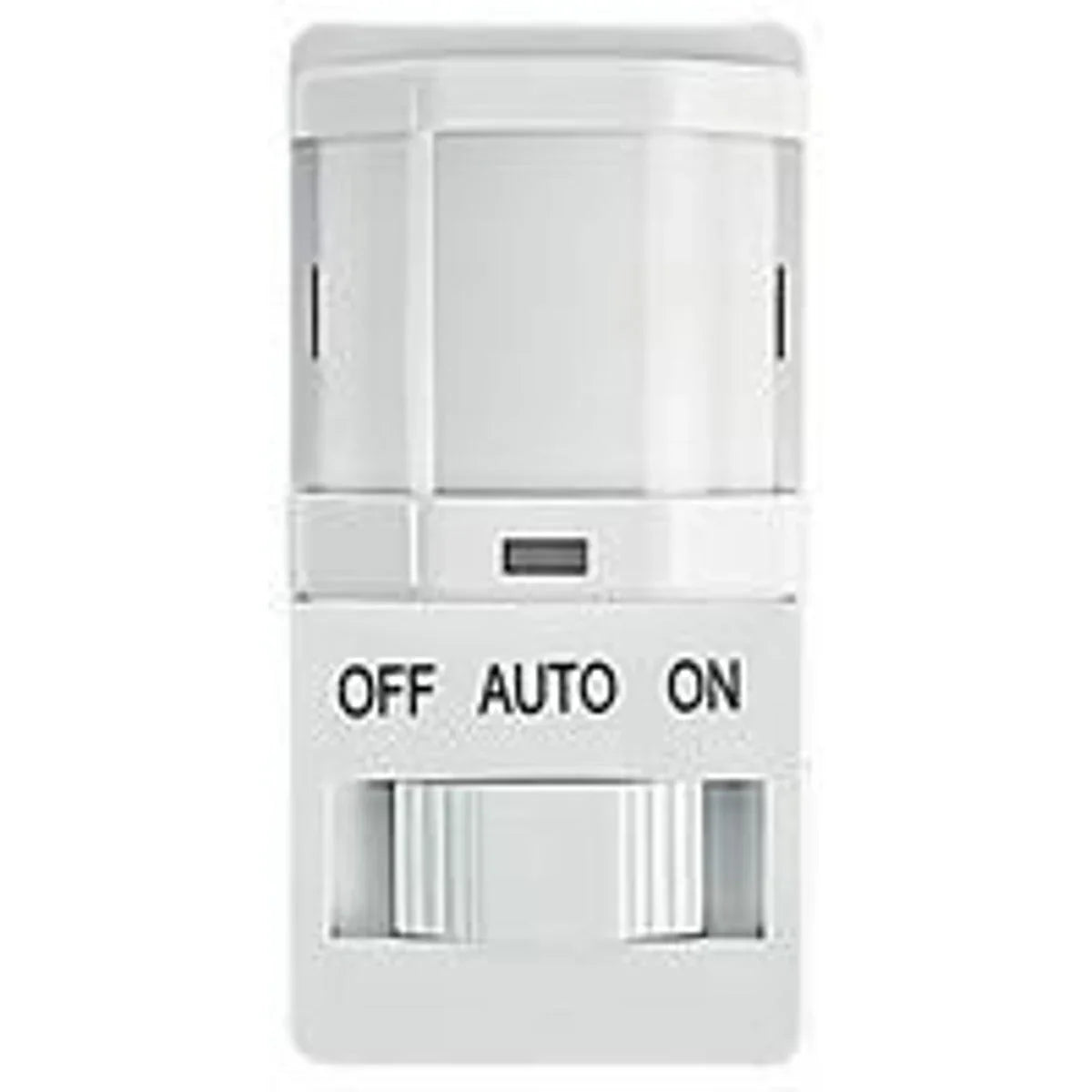

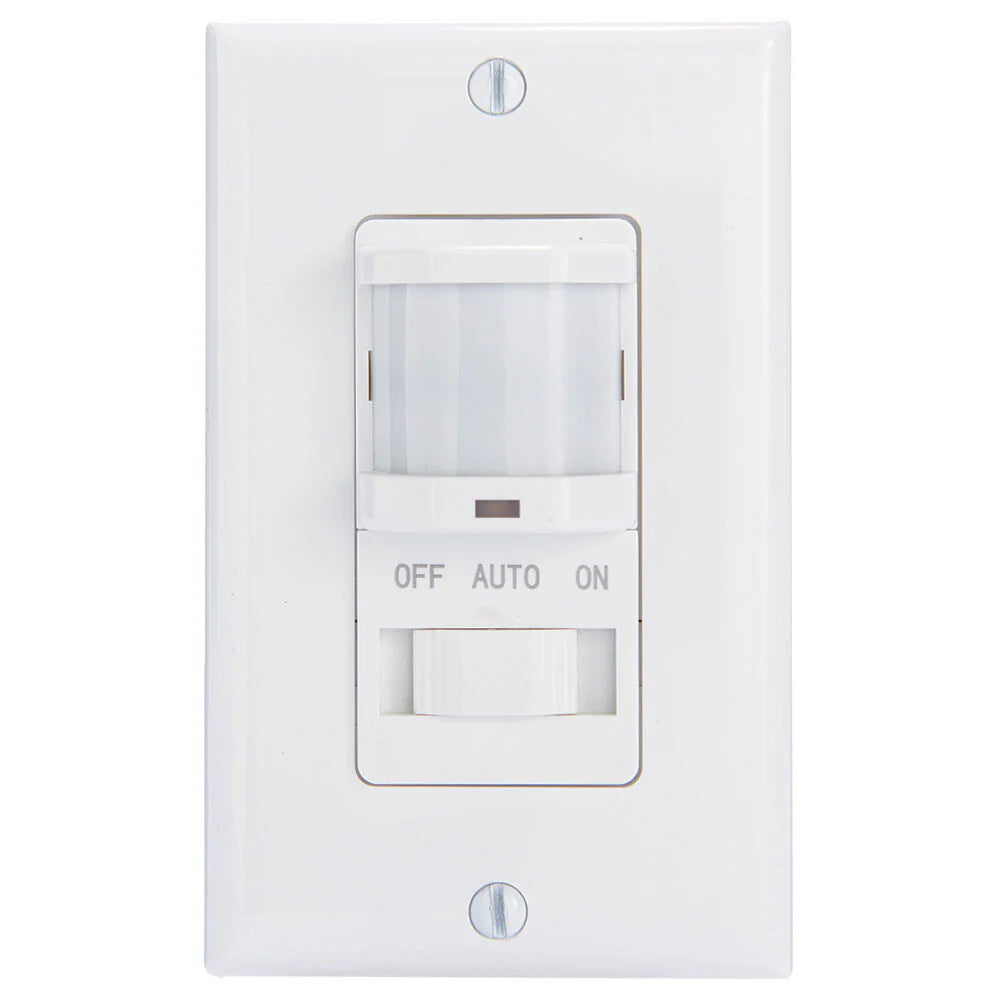

Intermatic IOS-DSIMF-WH Residential In-Wall PIR Occupancy Sensor 120V

Product Description

The Intermatic IOS-DSIMF-WH is a residential in-wall passive infrared occupancy sensor. This sensor detects heat emitted from moving bodies and turns a load ON as long as it senses occupancy. If no motion is detected after a set time delay, the load automatically turns OFF. This model includes an ambient light level sensor for enhanced functionality.

• Passive infrared detection for presence recognition
• Adjustable time delay from fifteen seconds to thirty minutes
• Compatible with incandescent, fluorescent, CFL, and LED lighting

Product Highlights

This sensor is ideal for indoor applications such as laundry rooms, closets, and kitchens. It features adjustable sensitivity and an environment-friendly design.

Product Information

Standard Information

• Brand: Intermatic
• Country of Origin: China

Technical Specifications

• Mounting Type: Wall
• Voltage Rating: 120 VAC
• Power Rating: 500 W at 120 VAC, 500 VA at 120 VAC
• Response Frequency: 60 Hz
• Sensor Type: PIR
• Temperature Rating: 0 to 55 degrees C
• Time Delay: 15 seconds to 30 minutes
• Coverage Area: 980 sq-ft
• Viewing Angle: 150 degrees
• Warranty Length: 2 years
