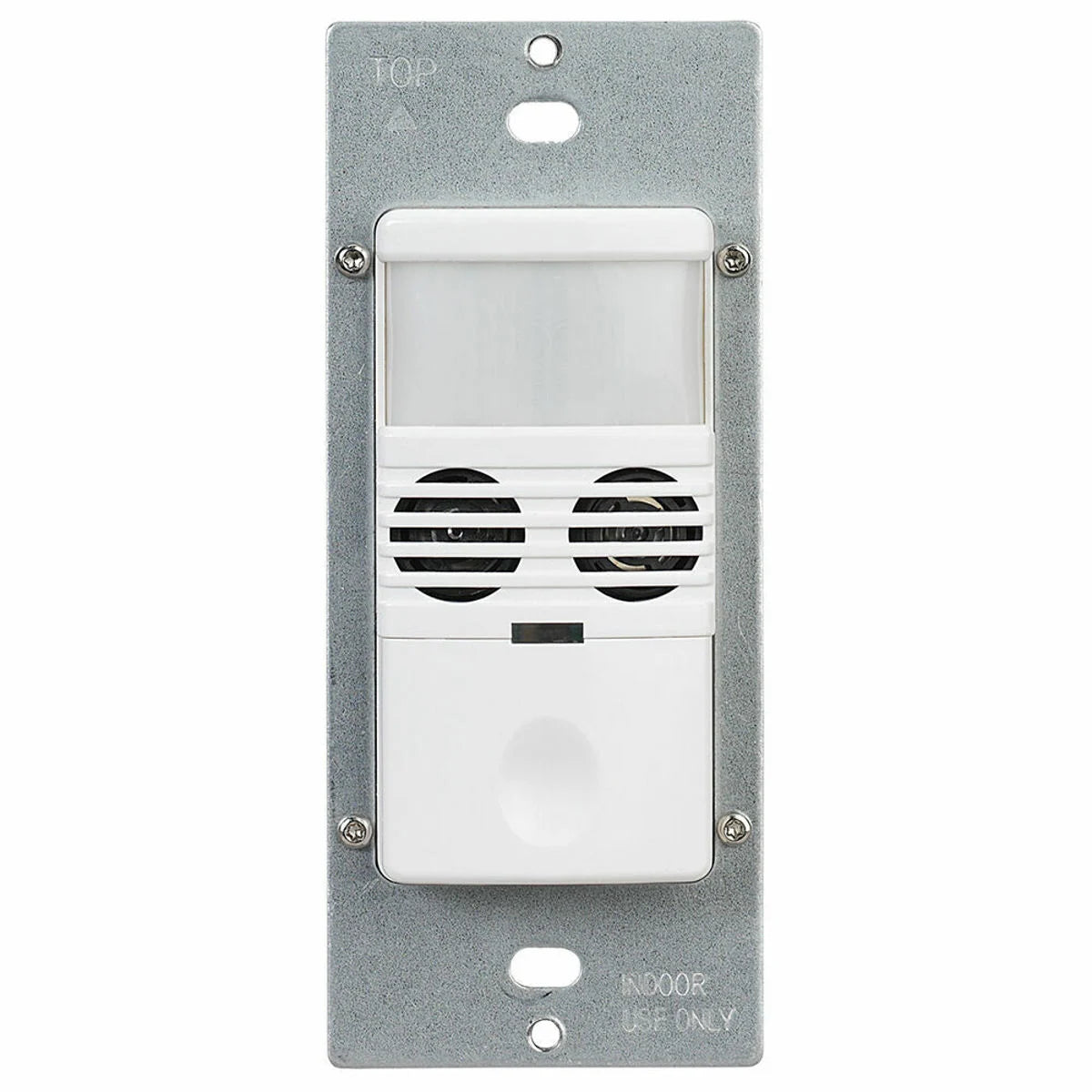

Intermatic IOS-DOV-DT-WH Commercial Grade In-Wall Dual Tech Occupancy/Vacancy Sensor, White

Product Description

The Intermatic IOS-DOV-DT-WH Commercial Grade In-Wall Dual Tech Occupancy/Vacancy Sensor is designed to control lighting loads based on occupancy and ambient light levels. This sensor employs both passive infrared (PIR) and ultrasonic technologies which enhance its ability to detect presence while reducing false triggers. Users can select modes to keep the load ON as long as either technology detects movement.

If the sensor detects no motion for a specified time, it will turn the load OFF. This device offers a wide coverage area for optimal performance.

• Combination of dual technologies for accurate presence detection
• Coverage area of 1200 square feet for PIR and 400 square feet for ultrasonic detection
• Adjustable settings to tailor operation to specific needs

Product Highlights

Enhances energy efficiency by reducing unnecessary lighting usage in various spaces.

Product Information

Standard Information

• Brand: Intermatic
• Part Number: IOS-DOV-DT-WH

Technical Specifications

• Type: Dual Technology Line Voltage
• Power Rating: 1/4 hp
• Voltage Rating: 120/277 VAC
• Coverage Area: 1200 ft² (PIR), 400 ft² (Ultrasonic)
• Viewing Angle: 180 degrees
• Time Delay: 15 seconds to 30 minutes
• Temperature Rating: 32 to 122 degrees Fahrenheit
• Mounting Type: Wall
• Response Frequency: 50/60 Hz
• Sensor Type: Passive Infrared/Ultrasonic
• UPC: 078275148369
• Country of Origin: China
