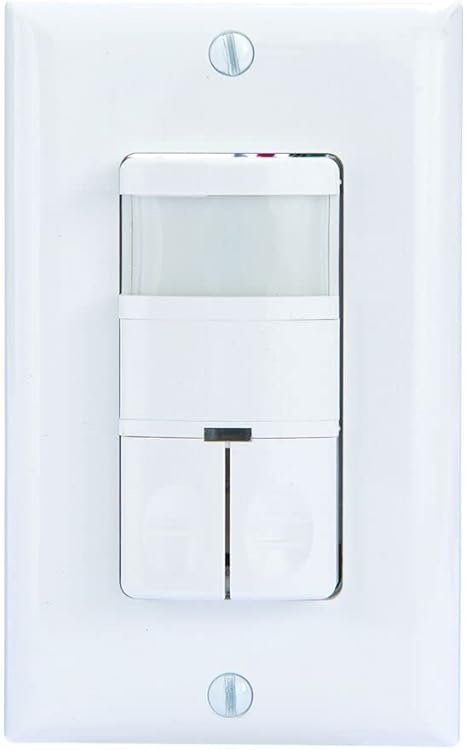

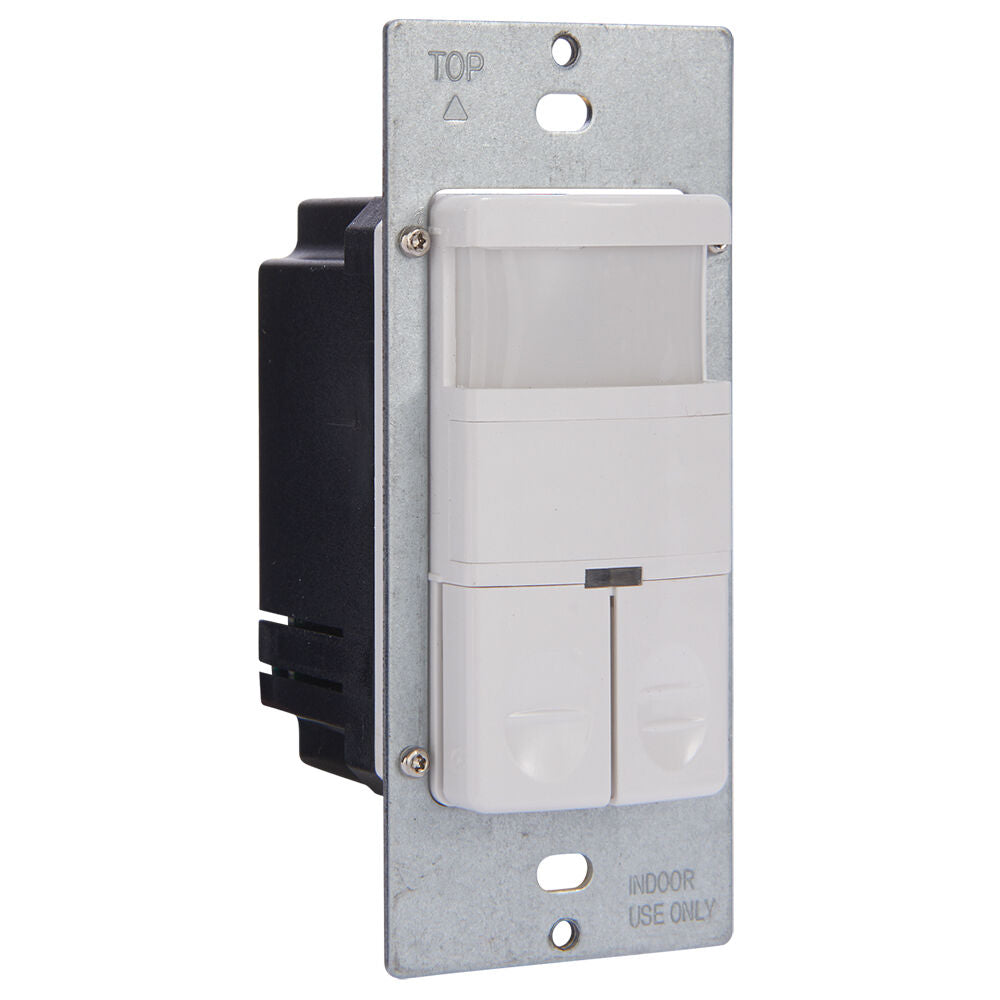

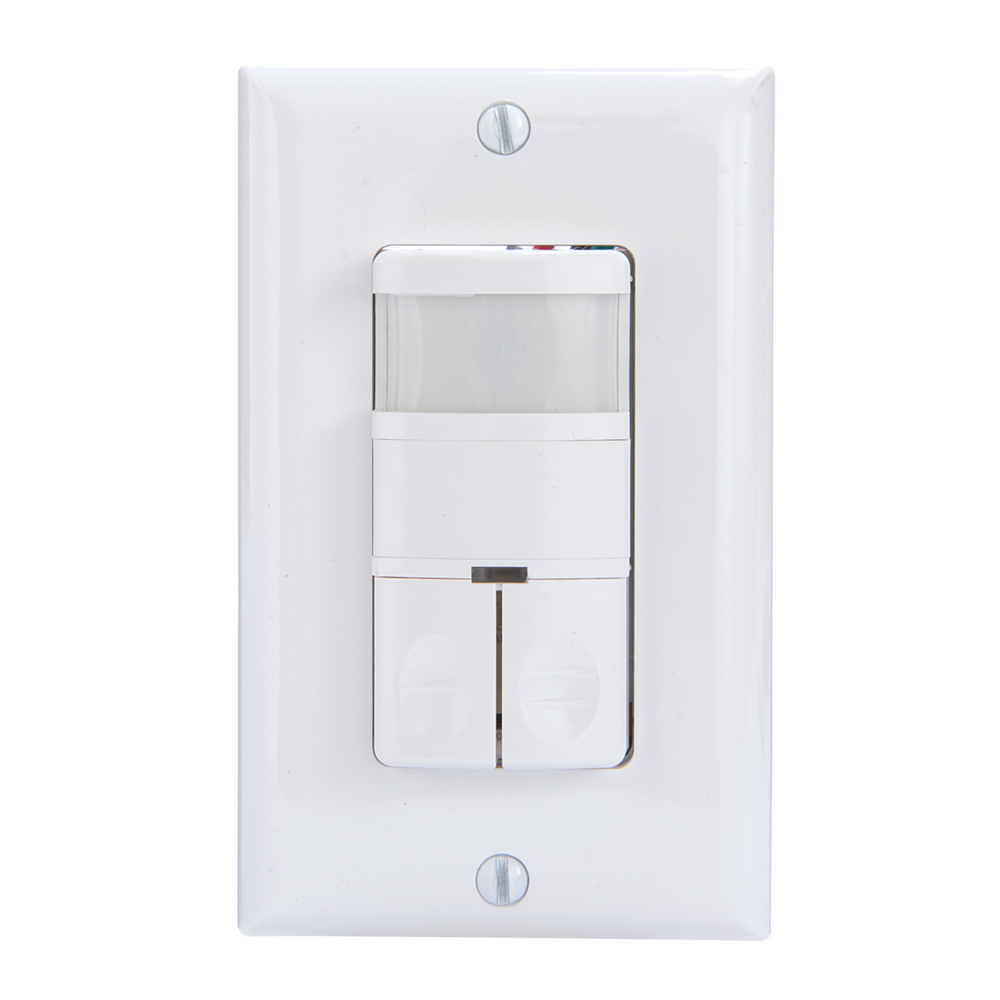

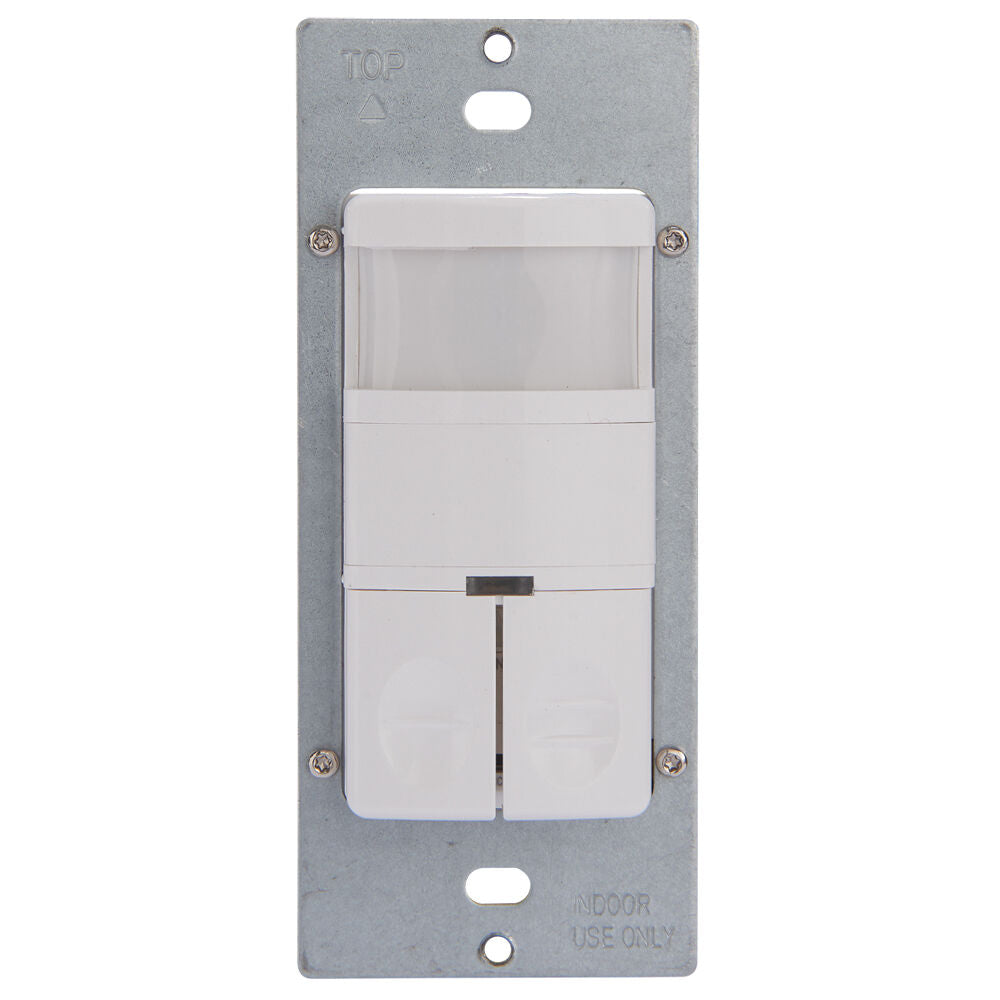

Intermatic IOS-DDR-WH Dual Rel Occ Sensor 120/277 VAC 180 Degree

Product Description

The Intermatic IOS-DDR-WH is an in-wall occupancy sensor that utilizes Passive Infrared (PIR) sensing technology to detect human presence. It features a self-adjusting mechanism to optimize delay-off times based on actual occupancy. This dual-relay sensor controls two independent loads, automatically turning them ON when motion is detected and OFF after a set time delay when no motion is present. It operates on 120/277 VAC.

• Passive Infrared (PIR) sensing for presence detection
• Independent load control for each circuit
• Zero-crossing technology for long life and performance

Product Highlights

This Intermatic IOS-DDR-WH sensor features 180-degree PIR sensing, dual relay control, and does not require a neutral wire, fitting a standard decorator wall plate.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: IOS-DDR-WH
• Country of Origin: China

Technical Specifications

• Type: Electronic/Magnetic Dual Relay Self-Adaptive
• Brand: Intermatic
• Standard: cULus Listed
• Indicator: LED
• Load Type: Electronic Ballast/LED: 800 VA @ 120/125 VAC, 1600 VA @ 277 VAC; Tungsten/Incandescent: 800 W @ 120/125 VAC; Motor: 1/4 HP @ 120/125 VAC; Resistive: 10 A @ 120/125 VAC
• Applications: Indoor Sensing Control
• Input Voltage: 120/277 VAC, 60 Hz
• Mounting Type: In-Wall
• Sensing Range: 180 Degrees, 1200 sq-ft
• Operating Cycles: 20000
• Number of Circuits: 2
• Operating Temperature: 32°F (0°C) to 131°F (55°C)
• Color: White
• Time Delay: 15 seconds to 30 minutes
• Control Output: ON/OFF
• Neutral Connection Required: No
• Occupancy Sensor Power Type: Line Voltage
• Sensor Switch Type: Occupancy, Vacancy
• Sensor Technology: PIR (Passive Infrared), Zero-crossing
• Adjustable Ambient Light Level Detection: 30 lux to daylight
• Adjustable Sensitivity Settings: 30%-100%
• Application Compatibilities: CFL, Fluorescent, Incandescent, LED
• Has Walk-Through Detection: Yes
• Includes Wall Plate: Yes
• Material: Polymer
• Maximum Mounting Height: 4 ft
• Frequency: 50/60Hz
• Certifications: cULus, NOM, Title 20
