Intermatic IG2240-PK Smart Guard Surge Protective Device 120/240 VAC 1Ph Type 2

Product Description

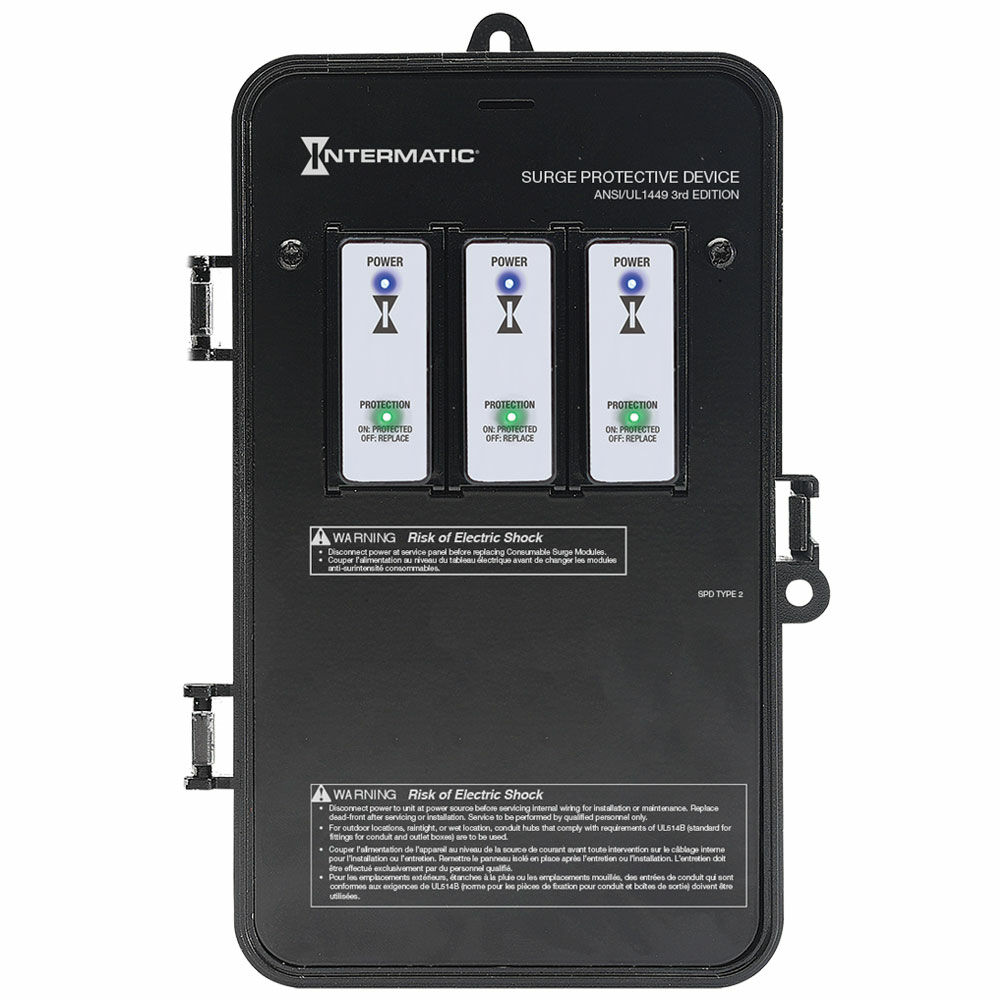

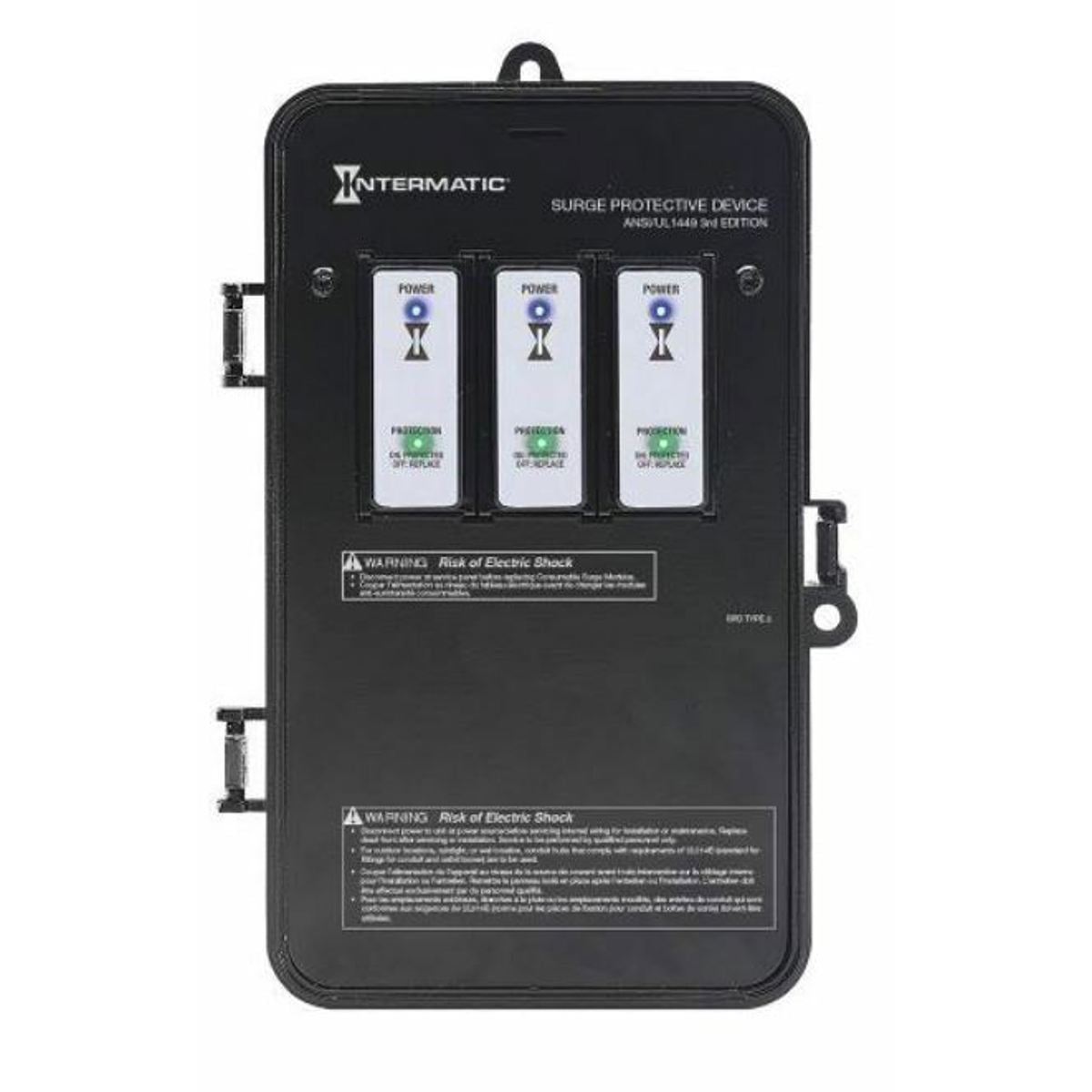

The Intermatic Surge Protective Device, model IG2240-PK, protects valuable equipment from surges in power. This device operates on 120/240 VAC and is designed for outdoor use. With its innovative IMODULE, it provides quick status updates through LED lights. A blue light indicates that the unit is powered on, while a green light shows that surge protection is active.

• Provides whole home surge protection.
• TPMOV technology minimizes failure risks.
• Includes three IMODULES for easy replacement.

Product Highlights

This surge protective device supports Type 1 and Type 2 installations, making it versatile for different applications. It is UL Listed to ANSI/UL 1449 4th edition and comes with a 10-year product warranty along with up to $25,000 in connected equipment coverage.

Product Information

Standard Information

• Brand: Intermatic
• MPN: IG2240-PK

Technical Specifications

• Voltage Rating: 120-240 VAC
• Frequency Rating: 50/60 Hz
• Operating Temperature: -31 to 185 Deg F
• Short Circuit Rating: 10 kA
• Warranty Length: 10 years
• Country of Origin: Mexico
• Material: Plastic
• Application: Whole Home Protection
