Intermatic IG1300-4T-2C3 Surge Protect 120/240 VAC (Size: N/A) Replacement MPN

Product Description

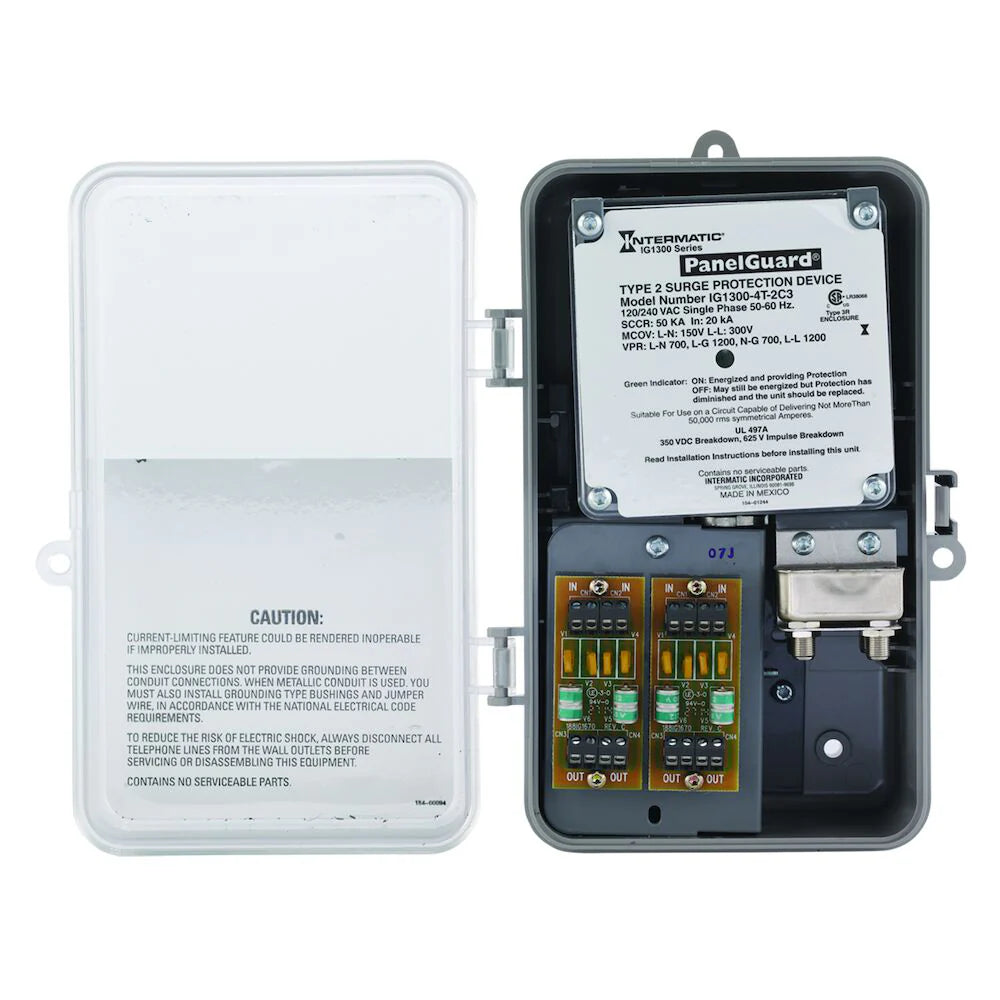

The Intermatic IG1300-4T-2C3 is a surge protective device designed to protect telephone and coax lines in addition to AC power. This unit employs Thermally Protected Metal Oxide Varistor (TPMOV) technology that significantly reduces hazardous failure modes common in standard MOV devices. An integrated green LED indicator shows the protection status, ensuring efficiency in various applications.

• Provides protection for two telephone lines and one coax line.
• CSA certified to ANSI/UL 1449, ensuring compliance with safety standards.
• 5-year warranty on the product with up to $10,000 connected equipment warranty.

Product Highlights

This surge protective device is suitable for type 2 applications and is compatible with indoor or outdoor installations. Its durable polycarbonate enclosure and surface mounting option make it ideal for residential and light commercial use.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc

Technical Specifications

• Catalog Number: IG1300-4T-2C3
• Voltage Rating: 120/240 VAC
• Dimensions: 9.38 height x 5.25 width x 4 depth inches
• Weight: 4.5 lbs
• Mounting Type: Surface with brackets
• Material: Polycarbonate
• Short Circuit Rating: 50 kA
• Environmental Conditions: -35 to 85 degrees C operating temperature
