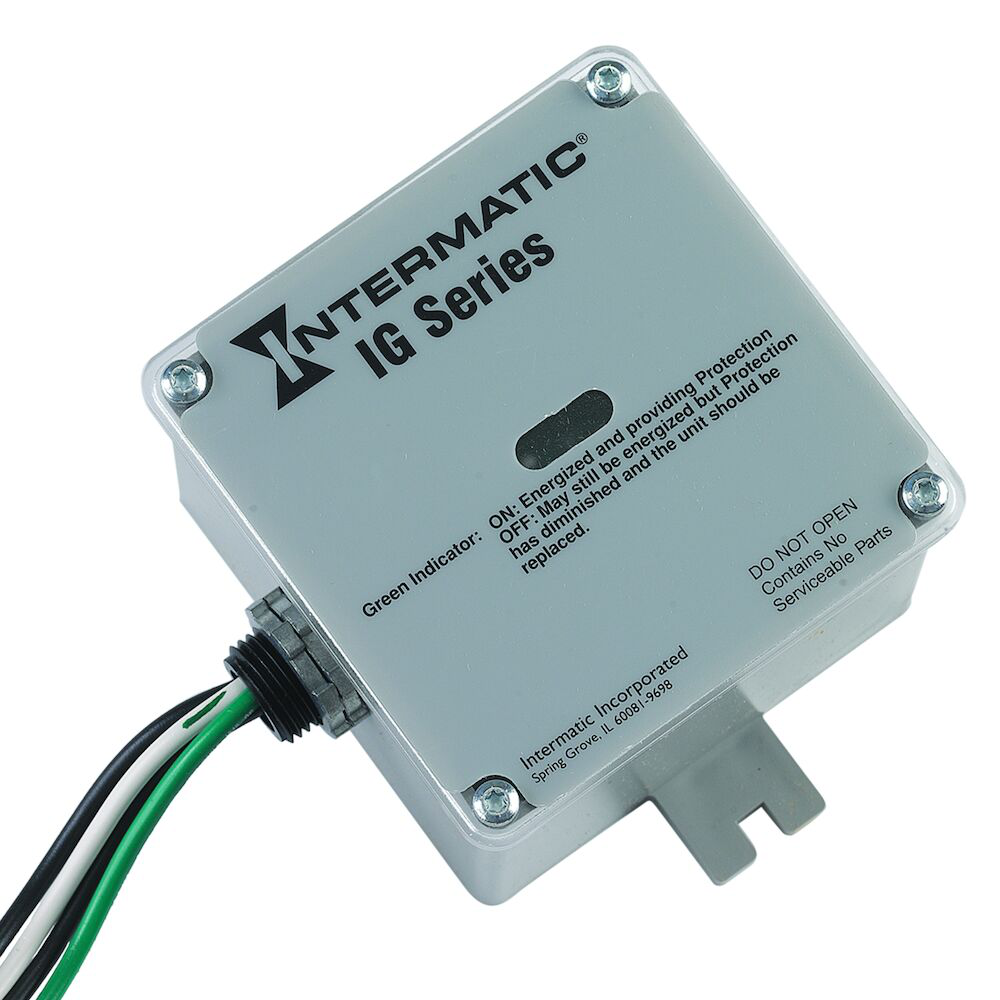

Intermatic IG1240RC3 Surge Protective Device, 120/240 VAC 50/60Hz 2 Phase

Product Description

The Intermatic Surge Protective Device, MPN IG1240RC3, is designed for various applications. It operates efficiently at a voltage of 120 to 240 VAC and is suitable for both Type 1 and Type 2 installations. The device features trusted TPMOV surge protection technology, which minimizes risks associated with traditional MOV technology. Its green LED indicator shows the operational status, ensuring reliable performance in both indoor and outdoor settings.

• Six modes of surge protection (L1-N, L2-N, L1-G, L2-G, N-G, L1-L2)
• Durable plastic housing with NEMA 3R rating for weather resistance
• 5-year warranty with up to $10,000 connected equipment coverage

Product Highlights

This surge protective device is engineered for residential and light commercial use, providing critical protection for HVAC systems, electronics, and communication lines. It is CSA certified to ANSI/UL 1449 3rd Edition standards.

Product Information

Standard Information

• Manufacturer: Intermatic
• Part Number: IG1240RC3

Technical Specifications

• Voltage Rating: 120/240 VAC
• Frequency Rating: 50/60 Hz
• Phase: 2
• Short Circuit Rating: 50 kA
• Nominal Discharge Current: 20 kA
• Dimensions: 4.2 inches H x 4.2 inches W x 3.33 inches D
• Enclosure Type: NEMA 3R
• Environmental Conditions: -35 to 85 degrees C
