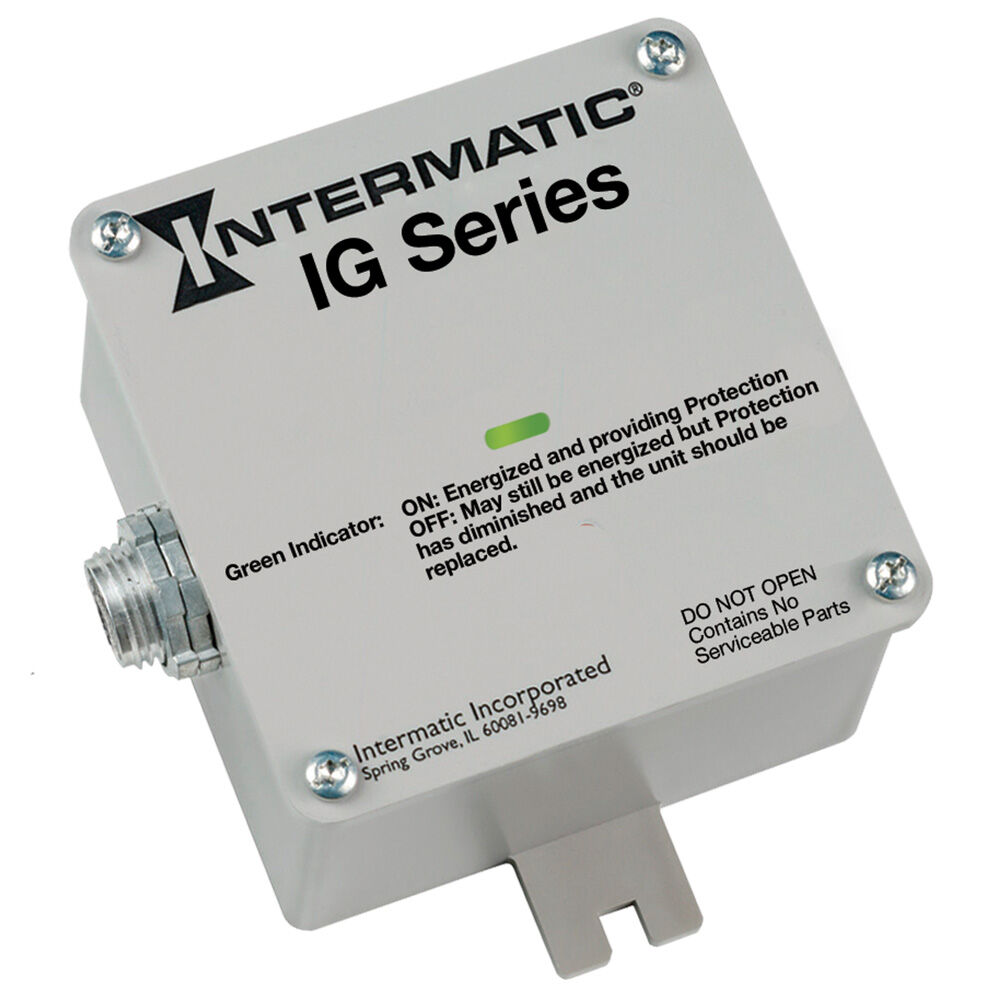

Intermatic IG1200RC3 Surge Protective Device 120/240 VAC 1-Phase

Product Description

The Intermatic IG1200RC3 Surge Protective Device is designed to provide advanced surge protection for various applications. Featuring TPMOV technology, it eliminates hazardous failure modes common in standard MOV technology.

• Thermally protected surge protection technology
• Green LED indicator for status
• Suitable for indoor and outdoor use

Product Highlights

This device ensures reliable surge protection with a Type 3R rainproof enclosure and is compliant with UL standards for safety. It is ideal for use with HVAC systems and electronics.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc

Technical Specifications

• Voltage: 240 Volt
• Max Operating Temperature: 185 degrees F
• Min Operating Temperature: -31 degrees F
• Material: Plastic
• Frequency: 50/60 Hz
• Height: 5.28 inches
• Width: 4.4 inches
• Depth: 3.25 inches
• Number of Wires: 3
• Number of Phases: 1 Phase
• Warranty Length: 3 years
• Environmental Conditions: Outdoor
• Country of Origin: Mexico
• Standard: CSA Certified to ANSI/UL 1449
