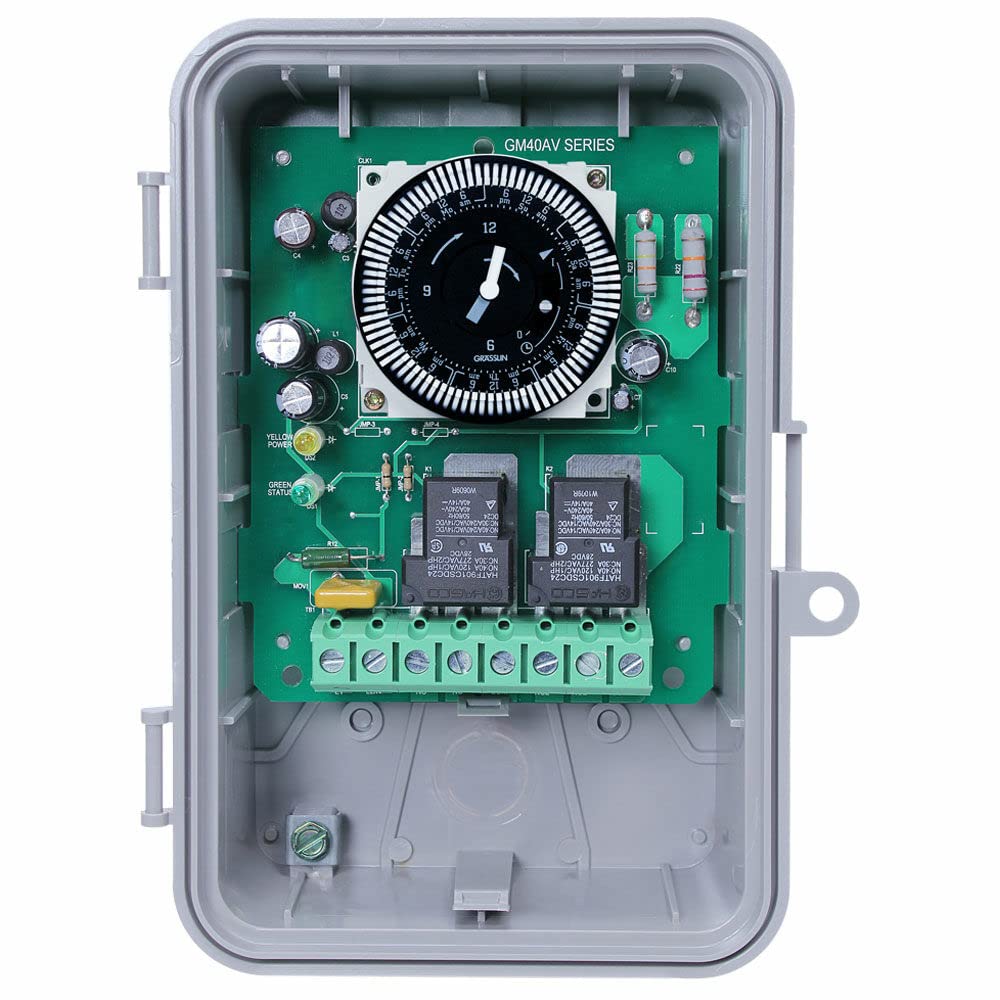

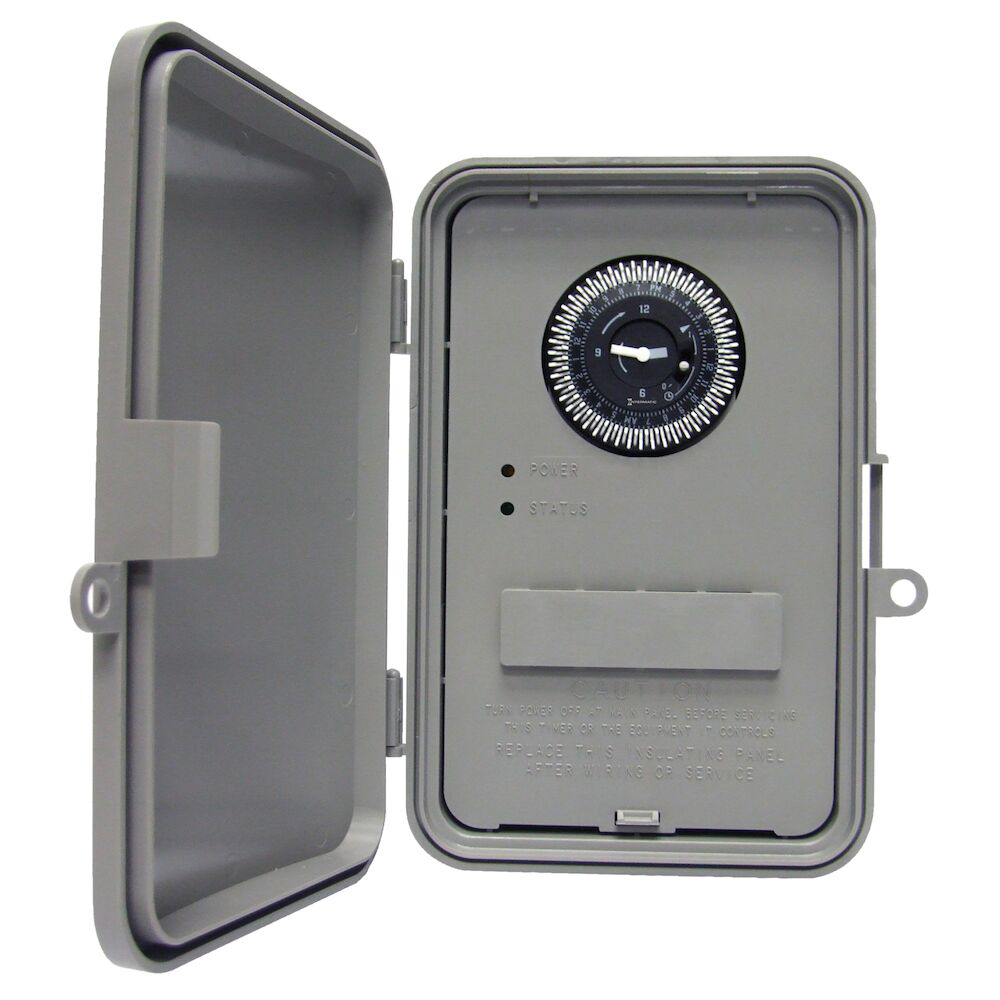

Intermatic GM40AV-QW Timer Switch Auto-Voltage 7-Day Electromechanical in Nema 3R Outdoor Plastic Enclosure

Product Description

Intermatic GM40AV-QW is a universal, electromechanical time switch designed for general purpose residential and commercial applications. This model boasts a 40 Amp rating and automatically detects input voltage without needing a DIP switch or selector pins.

• Auto-voltage selection from 120 to 277 VAC
• Compact UL Type 3R outdoor enclosure
• DPDT switching configuration

Product Highlights

Intermatic GM40AV-QW timer switch offers reliable and versatile control for various electrical devices such as lighting, HVACR, pumps, and motors. With its robust design, it ensures durability in harsh environments.

Product Information

Standard Information

• Brand: Intermatic
• MPN: GM40AV-QW
• Application: General Purpose, Lighting, HVACR, Pumps, Motors, Fans, Access Controls, Agricultural, Indoor/Outdoor

Technical Specifications

• Voltage: 120-208/240/277 VAC
• Amperage: 40 Amp
• Switch Type: DPDT
• Contact Configuration: 2 NO/2 NC
• Contact Rating: 40 AMP @ 120-277 VAC (Resistive NO), 30 AMP @ 120 VAC (Ballast NO), 20 AMP @ 277 VAC (Ballast NO), 15 AMP @ 120 VAC (Tungsten NO), 30 AMP @ 120-277 VAC (Resistive NC), 2 AMP @ 120 VAC (Tungsten NC), 10 AMP @ 277 VAC (Ballast NC)
• Enclosure: NEMA 3R Plastic
• Timing Range: 2 HR - 7 DAYS
• Operating Temperature: -4 to 131 degrees F
• Connection Type: Screw Box Lug
• Mounting Type: Wall
• Product Dimensions: 8.88 inches Height x 6.61 inches Width x 3 inches Depth
• UPC: 078275140974
• Warranty: 1 year
