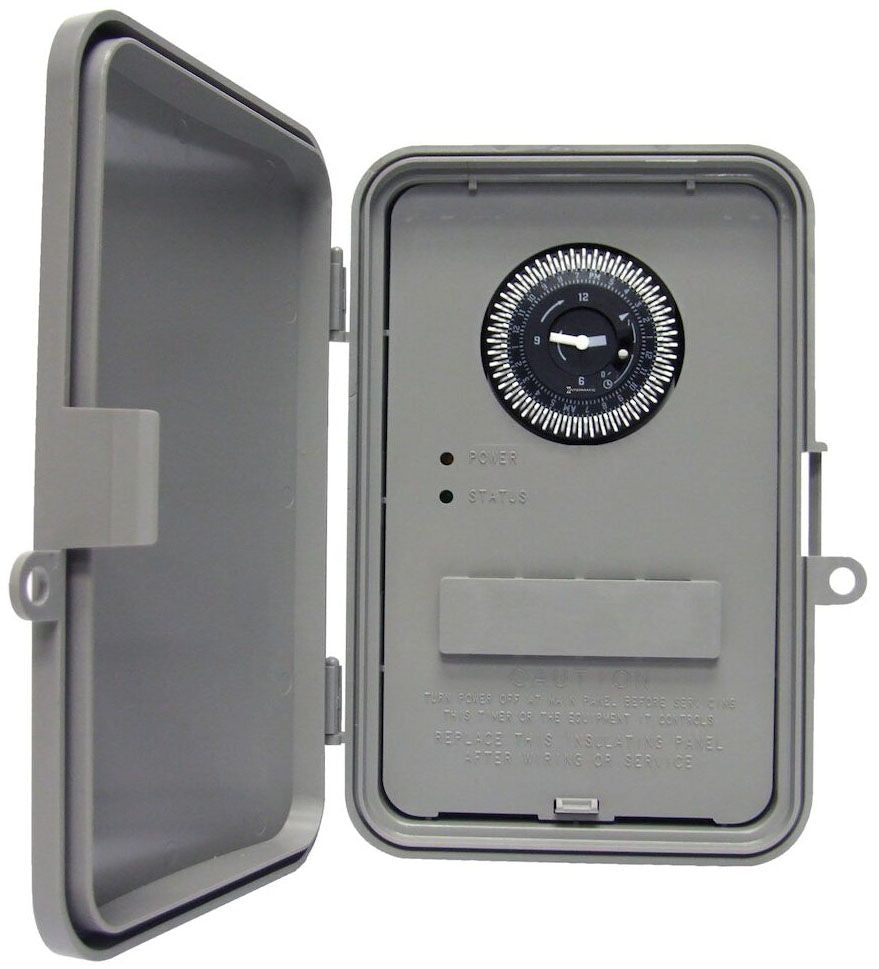

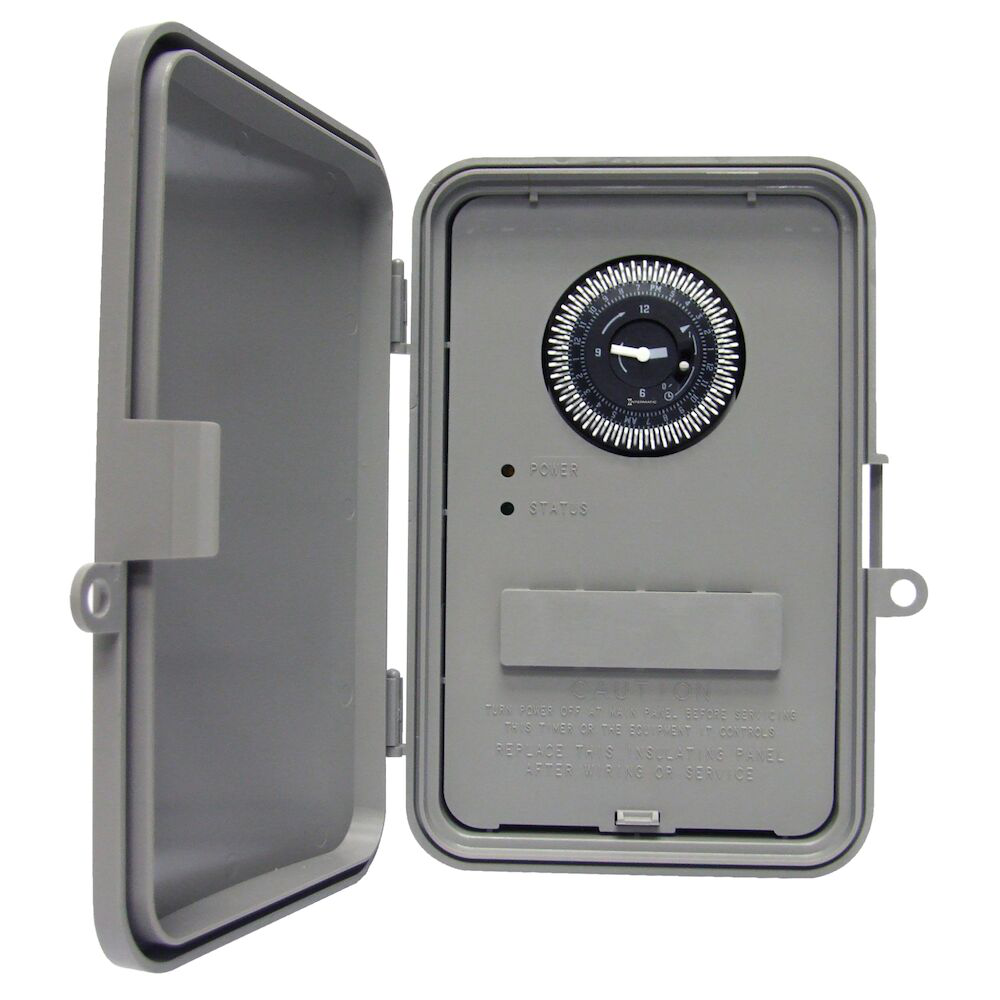

Intermatic GM40AV Electromechanical Time Switch 40A DPDT Auto Voltage 120 to 277 VAC

Product Description

The Intermatic GM40AV is an electromechanical time switch designed for residential and commercial use. This timer operates with a flexible voltage range from 120 to 277 VAC and is rated for 40 amperes, suitable for controlling various high-power loads. The device features a DPDT configuration, allowing it to switch between two circuits easily.

• Automatic voltage detection without DIP switches
• DPDT contact form (two normally open, two normally closed)
• Designed for wall mounting with a compact NEMA 3R enclosure

Product Highlights

The GM40AV timer is ideal for applications including lighting controls, HVAC systems, pumps, motors, and general electrical circuits. It ensures reliable operation in various environments.

Product Information

Standard Information

• Brand: Intermatic
• MPN: GM40AV

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 40 A
• Contact Configuration: DPDT (2 NO, 2 NC)
• Operating Temperature: -40 to 131 degrees F
• Electrical Connections: Screw Box Lug
• Dimensions: 8.88 inches H x 6.61 inches W x 3 inches D
• Enclosure Type: NEMA 3R Plastic
• Time Setting: 15 minutes to 24 hours
