Intermatic G8045-20 INT-MAT 208-240V MECH DEFS

Product Description

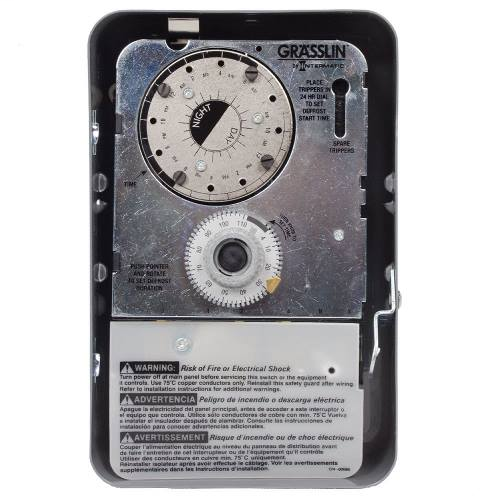

The Intermatic G8045-20 is a mechanical defrost timer designed for air defrost and electric defrost systems. This timer ensures that defrost cycles are properly terminated, and it features a fail-safe mechanism using temperature or pressure switches. The encapsulated design of this timer minimizes dust and dirt, contributing to its reliability and performance longevity.

• Compatibility with multiple defrost systems.
• Programmable defrost durations in two-minute increments.
• Mounts easily into existing enclosures without tools.

Product Highlights

The G8045-20 offers dependable operation and flexibility for industrial refrigeration needs, making it suitable for medium and low-temperature systems.

Product Information

Standard Information

• Brand: Intermatic
• MPN: G8045-20

Technical Specifications

• Voltage: 208-240 VAC
• Amperage: 40 Amp
• Size: 5 Length x 3 Width x 7-3/4 Height inches
• Enclosure Type: Indoor Type 1 Metal
• Frequency: 60 Hz
• Contact Rating: 40 AMP @ 120 - 240 VAC
• Warranty Length: 2 years
• Mounting Type: Bracket Mount
