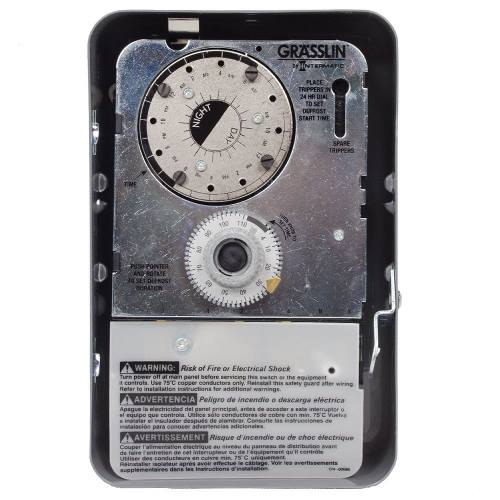

Intermatic G8045-00 INT-MAT G8045-00 120V/60Hz MECH DEF Replacement MPN

Product Description

The Intermatic G8045-00 is a mechanical defrost timer designed for 120 Volt and 60 Hertz systems. This timer effectively controls air defrost and hot gas defrost systems, ensuring that the defrost cycle is accurately terminated. The G8045-00 can also react to external temperature or pressure switches if the coil is frost-free. This feature offers a fail-safe operation for enhanced reliability.

• Durable, encapsulated design to prevent dust accumulation
• Programmable defrost durations in 2-minute increments
• Compatible with existing enclosures for quick installation

Product Highlights

This mechanical defrost timer is suitable for indoor industrial applications, making it a versatile choice for various refrigeration systems.

Product Information

Standard Information

• Brand: Intermatic
• Product ID: 912662

Technical Specifications

• Voltage: 120 Volt
• Amperage: 40 Amp
• Frequency: 60 Hz
• Horsepower: 2 hp
• Size: 5 length x 3 width x 7-3/4 height inches
• Mounting Type: Bracket Mount
• Operating Temperature Range: -40 degrees C to 104 degrees F
• Warranty Length: 2 years
