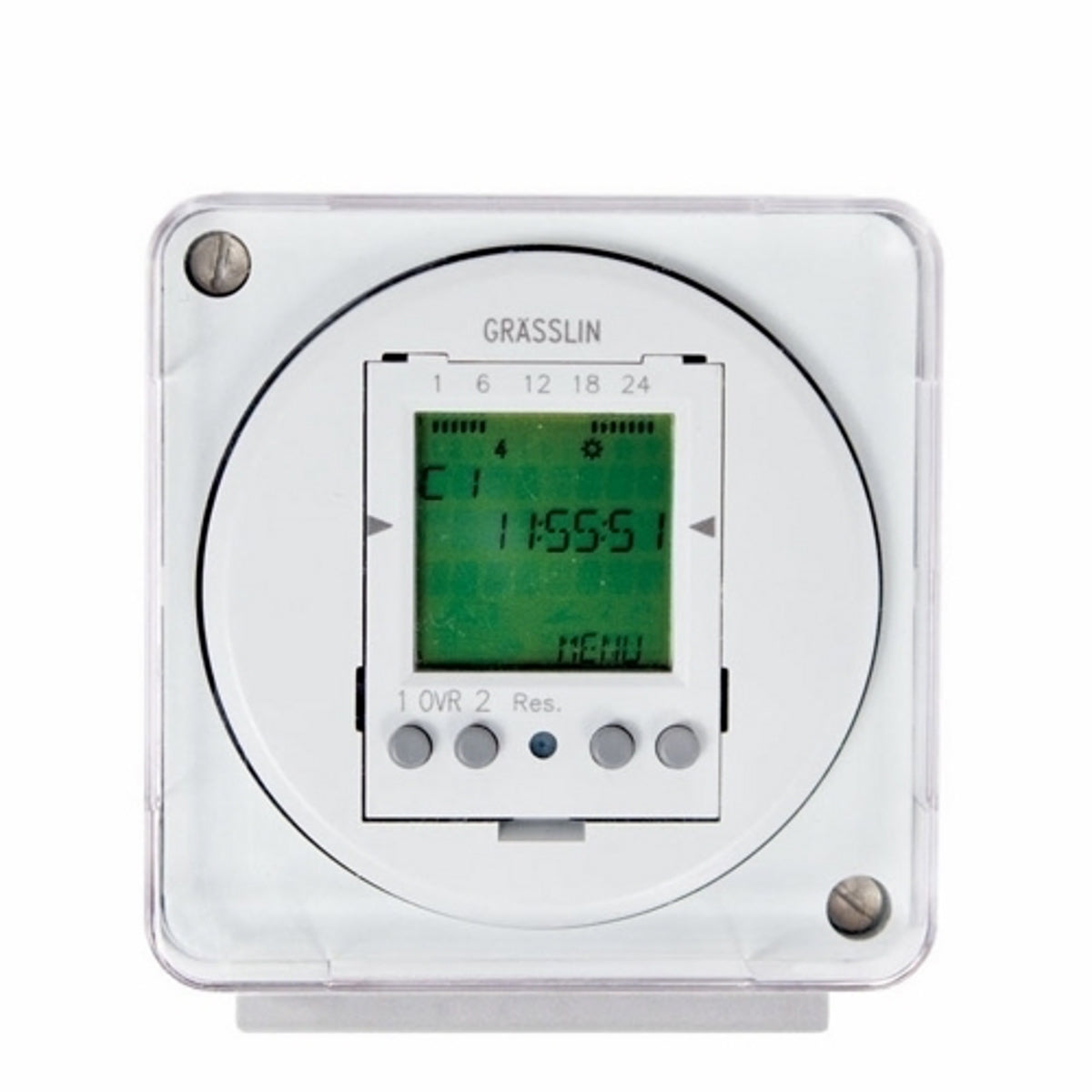

Intermatic FM2D50-24 Electronic Time Switch 24V 50 Setpoint Programs 2SPDT

Product Description

The Intermatic FM2D50-24 is a versatile electronic time switch suitable for industrial and commercial applications. It offers 24-hour or 7-day programming with 50 setpoint programs. It can be surface, DIN rail, or flush-mounted, providing flexible installation options.

• 50 setpoint programs
• 2 independent circuits
• Automatic daylight saving time adjustment

Product Highlights

This electronic time switch can control pumps, fans, heaters, lighting, and more. It includes features like battery backup, manual override, and an LCD display for easy programming. The unit is built for durability with a NEMA 1 enclosure and operates in a wide temperature range.

Product Information

Standard Information

• Brand: Intermatic
• MPN: FM2D50-24

Technical Specifications

• Amperage Rating: 16 A
• Application: Generator Exercising, Scheduling Occupied/Unoccupied Ventilation System Operation, Parts Washer, Commercial Refrigeration, Pump Control, Motor Control, Fan Control, HVAC Control Circuits, Lighting Control, Landscape Lighting and Security Gates, Heaters, HVAC, Lighting, Machinery, Commercial, Industrial and Agricultural Applications
• Battery Type: CR2032 Lithium-Ion
• Contact Form: 1NO-1NC 2SPDT
• Dimensions: 2.83 in W x 2.28 in D x 2.83 in H
• Electrical Connections: Screw Terminal
• Enclosure: NEMA 1
• Horsepower: 1/2 hp, 1 hp
• Mounting Type: DIN Rail/Surface
• Number of Poles: 1
• Number of Pulse Events: 50
• Operation Mode: 24 hr/7 days
• Series: FM2D50
• Standards/Approvals: CE, cRUus, Title 20 Compliant
• Temperature Rating: -13 to 131 deg F
• Time Setting: 1 min to 24 hr/7 days
• Type: Digital
• Voltage Rating: 24 VAC/VDC
