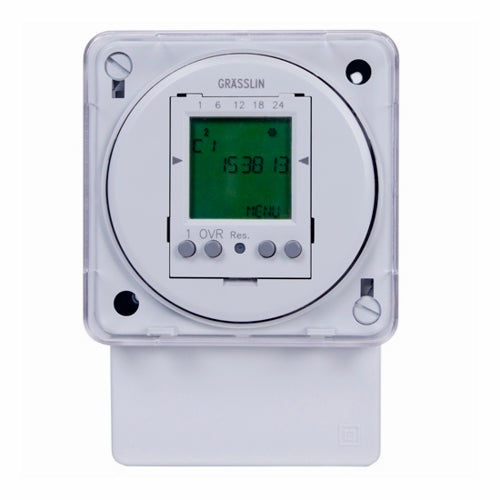

Intermatic FM1D50A-120 Digital Electronic Timer 120V SPDT Surface/DIN Rail Mount

Product Description

The Intermatic FM1D50A-120 Digital Electronic Timer offers robust functionality with a user-friendly design, making it an excellent choice for controlling devices in commercial or industrial environments. This timer allows for both 24-hour and 7-day operations, suitable for a wide range of applications including lighting, HVAC, and industrial equipment.

• Schedule devices with 50 unique setpoints and block programs.
• Robust battery backup maintains settings during power interruptions.
• Compatible with DIN rail or surface mount setups for flexible installation options.

Product Highlights

Experience precise control with its SPDT contact configuration and a maximum switching capability of up to 16 Amps at 277 VAC. Easily set up through its large LCD screen, which supports seven languages and includes a manual override function.

Product Information

Standard Information

• Dimensions: 4 inches height x 2.83 inches width x 2.06 inches depth
• Voltage: 120V
• Frequency: 50/60 Hz

Technical Specifications

• Brand: Intermatic
• Type: SPDT
• Operating Temperatures: -13 to 131 degrees Fahrenheit
• Standards: cULus Recognized E10694, California TITLE 24 Compliant
• Country of Origin: China
• Warranty: 1 year
