Product Description

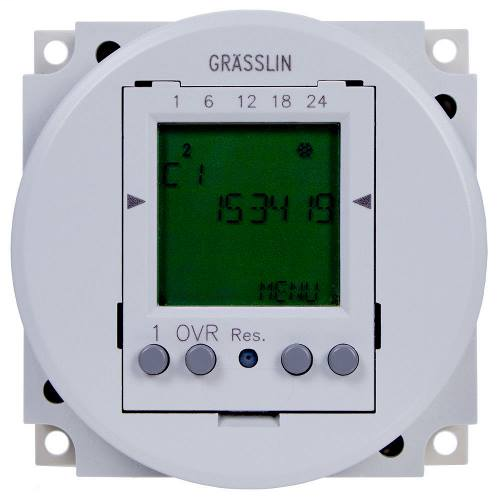

The Intermatic FM1D50-24U is a one-channel electronic time switch designed for managing ventilation, heating, cooling, and lighting systems in commercial and industrial settings. It can be programmed for 24-hour or 7-day operation, providing versatile scheduling options for various applications. This device is suitable for panel, surface, flush, or DIN rail mounting. The model features a durable plastic housing, ensuring protection for the internal components and includes essential installation accessories.
- Programs for 24-hour or 7-day schedules
- Includes 50 setpoint programs
- Manual override and battery backup functionality
Product Highlights
This time switch provides efficient control for different electrical loads and includes an easy-to-use menu-driven programming interface.
Product Information
Standard Information
-
Brand: Intermatic
-
Model Number: FM1D50-24U
Technical Specifications
-
Voltage: 24 VAC/VDC
-
Wattage: 1000 Watt
-
Contact Rating: 12 AMP @ 120 VAC
-
Operating Temperature: -13 to 131 degrees F
-
Mounting Type: Panel
-
Frequency: 50/60 Hz
-
Actions: SPDT
-
Dimensions: 2.36 inches x 2.36 inches
