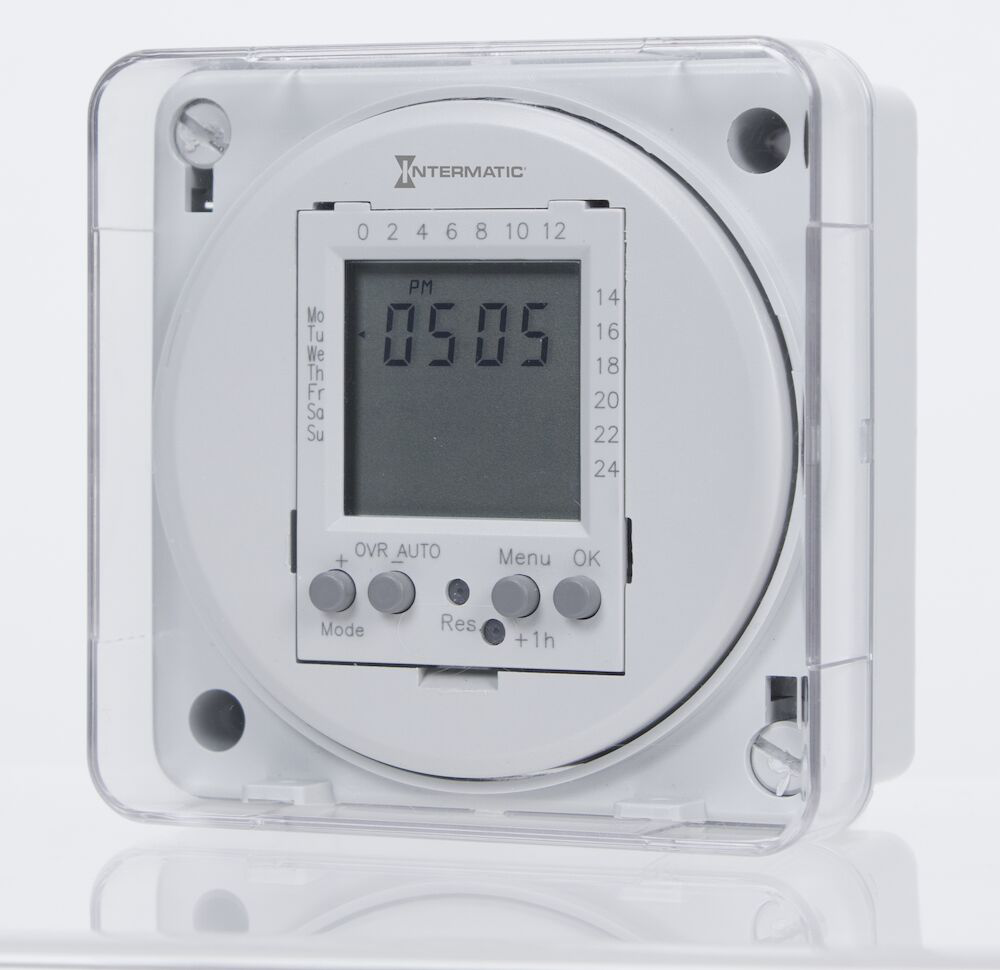

Intermatic FM1D20E-24 7-Day 24 VAC 50/60 Hz 24 VDC 16 Amp 2-Circuit Flush Mount Timer Module

Product Description

The Intermatic FM1D20E-24 is designed for controlling ventilating, heating, cooling, lighting, or other electrical loads in commercial and industrial settings. This 7-day timer module operates on 24 VAC/VDC and includes two circuits. It features a range of mounting options, including flush, panel, surface, and DIN rail.

• 24-hour and 7-day scheduling
• Programmable for up to 20 setpoints
• Manual override with status indication

Product Highlights

This Intermatic timer includes 20 setpoint programs, battery backup, a large LCD, and is California Title 24 compliant. The unit is housed in a durable plastic enclosure with a terminal cover and dust cover.

Product Information

Standard Information

• Brand: Intermatic
• Model: FM1D20E-24
• Manufacturer: Intermatic, Inc

Technical Specifications

• Voltage: 24 VAC/VDC
• Amperage: 16 A
• Wattage: 1000 W
• Switch Type: SPDT
• Contact Configuration: 1 NO/1 NC
• Number of Poles: 1
• Mounting Type: Flush Mount
• Frequency: 50/60 Hz
• Operating Temperature: -13 to 131 degrees F
• Dimensions: 2.83 inches H x 2.83 inches W x 2.06 inches D
• Connection Type: 1/4 inch Quick Connect
• Standards: cULus Recognized E10694, California Title 24 Compliant
• Country of Origin: China
