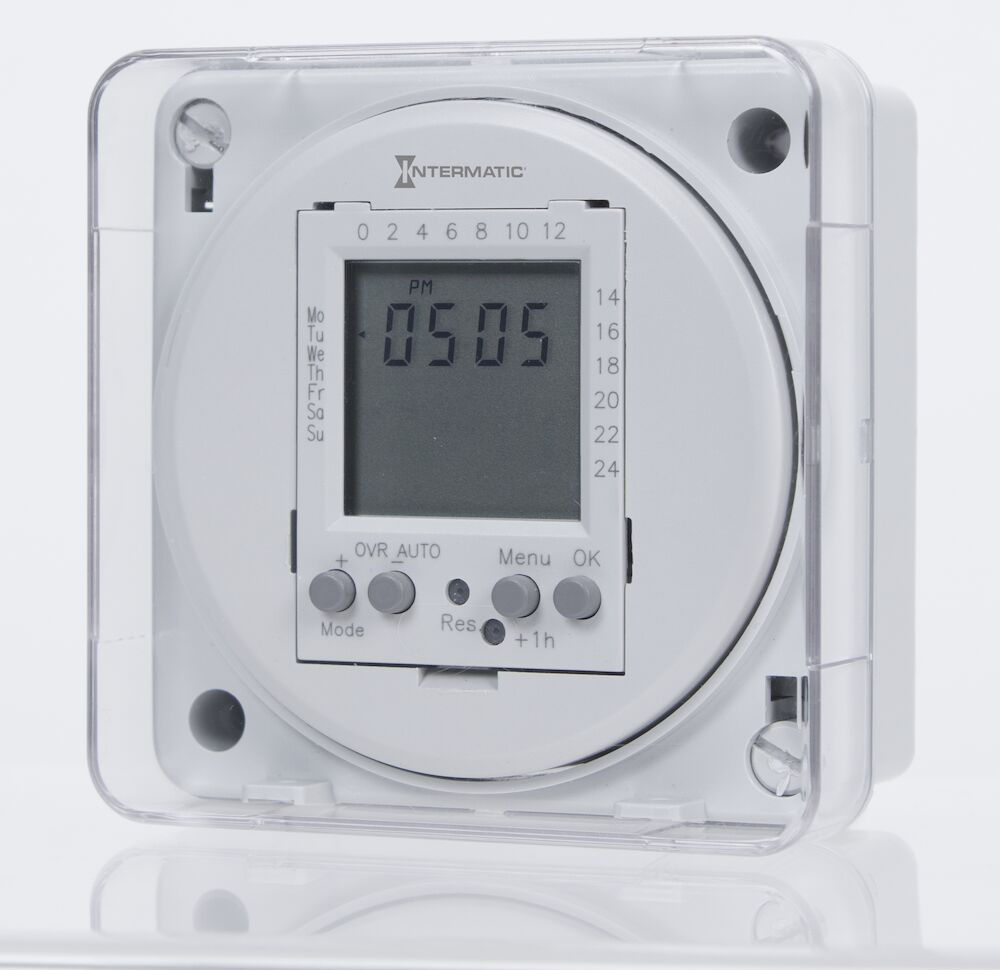

Intermatic FM1D20E-120 DGTL Timer, 20 Program, 120V, Flush Mount

Product Description

The Intermatic FM1D20E-120 Digital Timer is designed for ventilating, heating, cooling, lighting, and other electrical loads in commercial and industrial settings. This one-channel time switch can be programmed for either 24-hour or 7-day schedules.

• Utilizes a 120V power source
• Suitable for flush mounting
• Includes a large LCD display and battery backup

Product Highlights

Features 20 setpoint programs, three preset adjustable block programs, and manual override with status indication, making it ideal for HVAC, lighting, and machinery applications.

Product Information

Standard Information

• Brand: Intermatic
• MPN: FM1D20E-120

Technical Specifications

• Voltage: 120 Volt
• Amperage: 16 AMP
• Wattage: 1000 Watt
• Frequency: 50/60 Hz
• Mounting Type: Flush
• Dimensions: 2.83 inches Height x 2.83 inches Width x 2.06 inches Depth
• Rating: 16 AMP @ 277 VAC (Resistive), 12 AMP @ 120 VAC (Ballast), 8 AMP @ 24 VDC (NC)
• Operating Temperature: -13 to 131 degrees F
