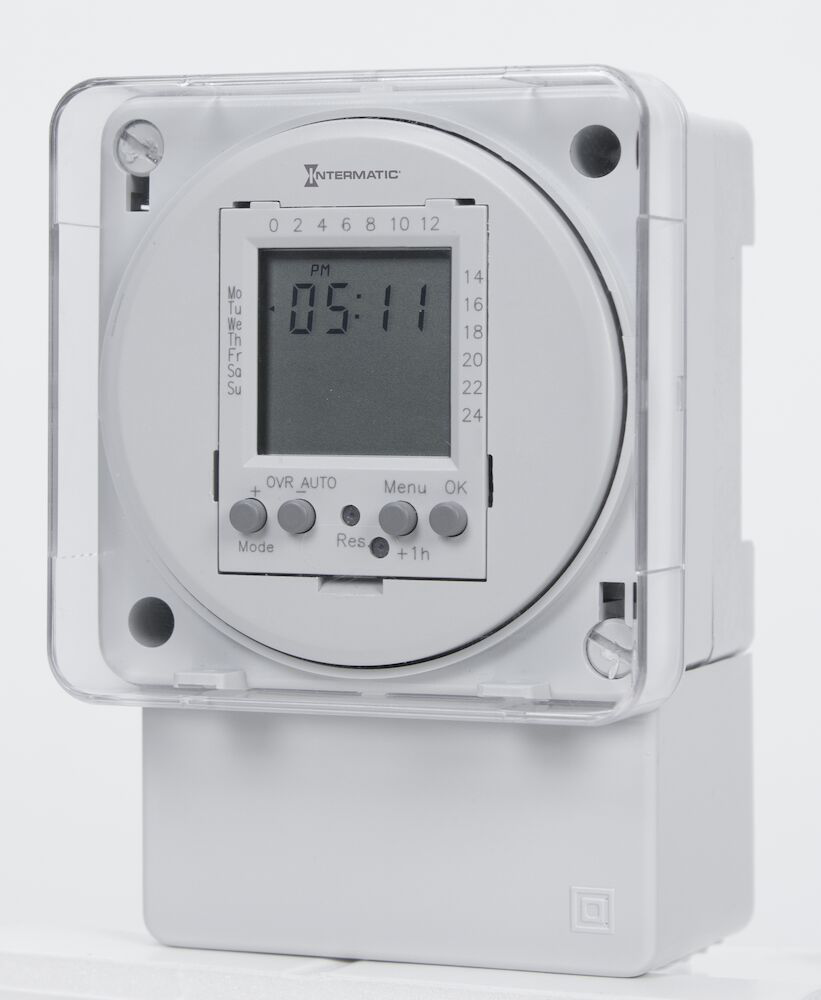

Intermatic FM1D20A-120 Electronic Time Switch 120 Volt 16A Surface/DIN Rail Mount

Product Description

The Intermatic FM1D20A-120 is a versatile electronic time switch designed for a wide range of commercial and industrial applications. Engineered for precision and reliability, it offers programmable 24-hour or 7-day schedules, accommodating various operational needs from lighting to HVAC systems. This single-channel timer features easy installation options including panel, surface, flush, or DIN rail mounting.

• Programmable for both 24-hour and 7-day applications.
• Inclusive of 20 setpoint programs and three preset adjustable block programs for diverse operational needs.
• Equipped with a large, clear LCD and manual override function with status indication.

Product Highlights

This time switch is housed in a sturdy plastic enclosure ensuring durability, complemented by additional features like a terminal cover, dust cover, and subbase. Its user-friendly interface supports straightforward menu-driven programming enhancing operational efficiency.

Technical Specifications

• Type: One Channel Electronic
• Dimensions: 4 inches height x 2.83 inches width x 2.06 inches depth
• Mounting Type: Surface/DIN Rail Mount
• Contact Configuration: 1 NO/1 NC
• Voltage: 120 Volt
• Amp Rating: 16 AMP
• Control Type: SPDT
• Power Consumption: 1.4 W
