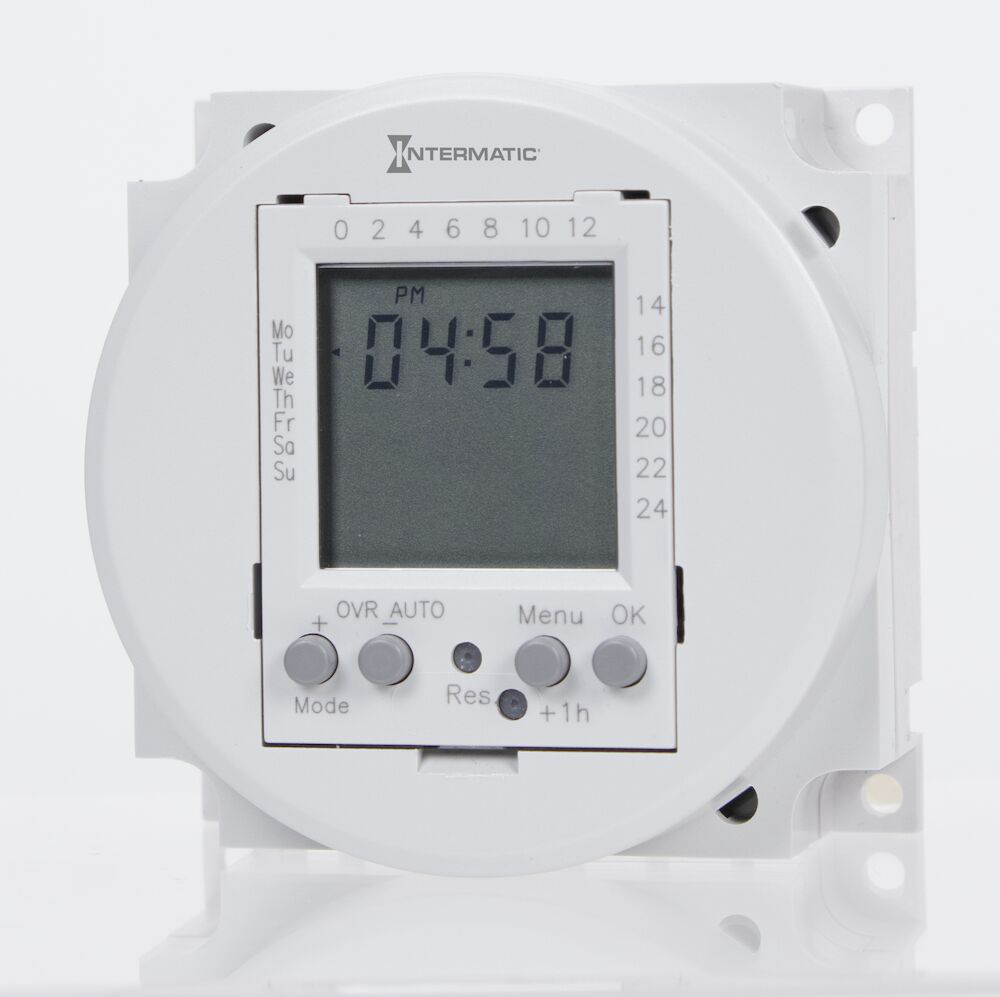

Intermatic FM1D20-24U 24-Hour or 7-Day 24V Electronic Time Switch

Product Description

The Intermatic FM1D20-24U is a one-channel electronic time switch designed for controlling various electrical loads. This device can manage ventilating, heating, cooling, and lighting systems in commercial and industrial settings. It supports programmable 24-hour or 7-day scheduling, making it versatile for numerous applications.

• Supports 24-hour or 7-day programming
• Features 20 setpoint programs
• Includes a battery backup for reliability

Product Highlights

The FM1D20-24U is ideal for HVAC systems, lighting control, and industrial machinery, providing easy installation on panel, surface, flush, or DIN rail. It is suitable for both low and line voltage control.

Product Information

Standard Information

• Manufacturer: Intermatic
• Brand: Intermatic

Technical Specifications

• Catalog Number: FM1D20-24U
• Voltage: 24 VAC/VDC
• Wattage: 1000 Watt
• Contact Rating: 16 AMP @ 277 VAC (Resistive NO), 12 AMP @ 120 VAC (Ballast NO)
• Connection Type: 1/4 In Quick Connect
• Mounting Type: Panel Mount
• Operating Temperature: -13 to 131 degrees F
• Warranty: 1 year
