Intermatic FM1D20-240U 24-Hour 7-Day Digital Timer

Product Description

The Intermatic FM1D20-240U Digital Timer is perfect for managing ventilating, heating, cooling, and lighting in commercial and industrial settings. This one-channel timer is versatile, programmable for either 24-hour or 7-day schedules, offering flexibility for various applications.

• 24-hour or 7-day scheduling
• Battery backup
• Easy-to-use programming

Product Highlights

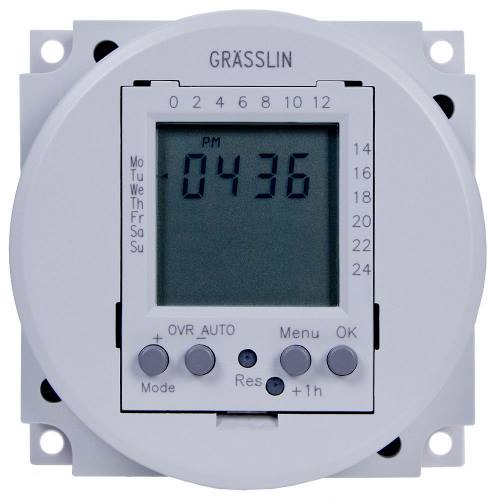

This timer is designed for panel, surface, flush, or DIN rail mounting. It includes a terminal cover, dust cover, and subbase for simple installation. The timer features a large LCD screen and manual override with status indication.

Product Information

Standard Information

• Brand: Intermatic
• MPN: FM1D20-240U

Technical Specifications

• Type: One Channel Electronic
• Voltage: 240 VAC
• Wattage: 1000 Watt
• Dimensions: 2.36 inches height, 2.36 inches width
• Frequency: 50/60 Hz
• Switch Type: SPDT
• Mounting Type: Panel
• Operating Temperature: -13 degrees F to 131 degrees F
• Applications: Lighting, HVACR, Commercial, Industrial, Machinery, Pumps, Fans, HVAC
• Contact Rating: 16 AMP @ 277 VAC (Resistive NO), 12 AMP @ 120 VAC (Ballast NO), 8 AMP @ 240 VAC (Ballast NO), 16 AMP @ 277 VAC (Resistive NC), 8 AMP @ 24 VDC (NC)
