Intermatic FM1D14A-12 INT-MAT FM1D14A-12 DGTL TMR,14PRGM, 12VDC

Product Description

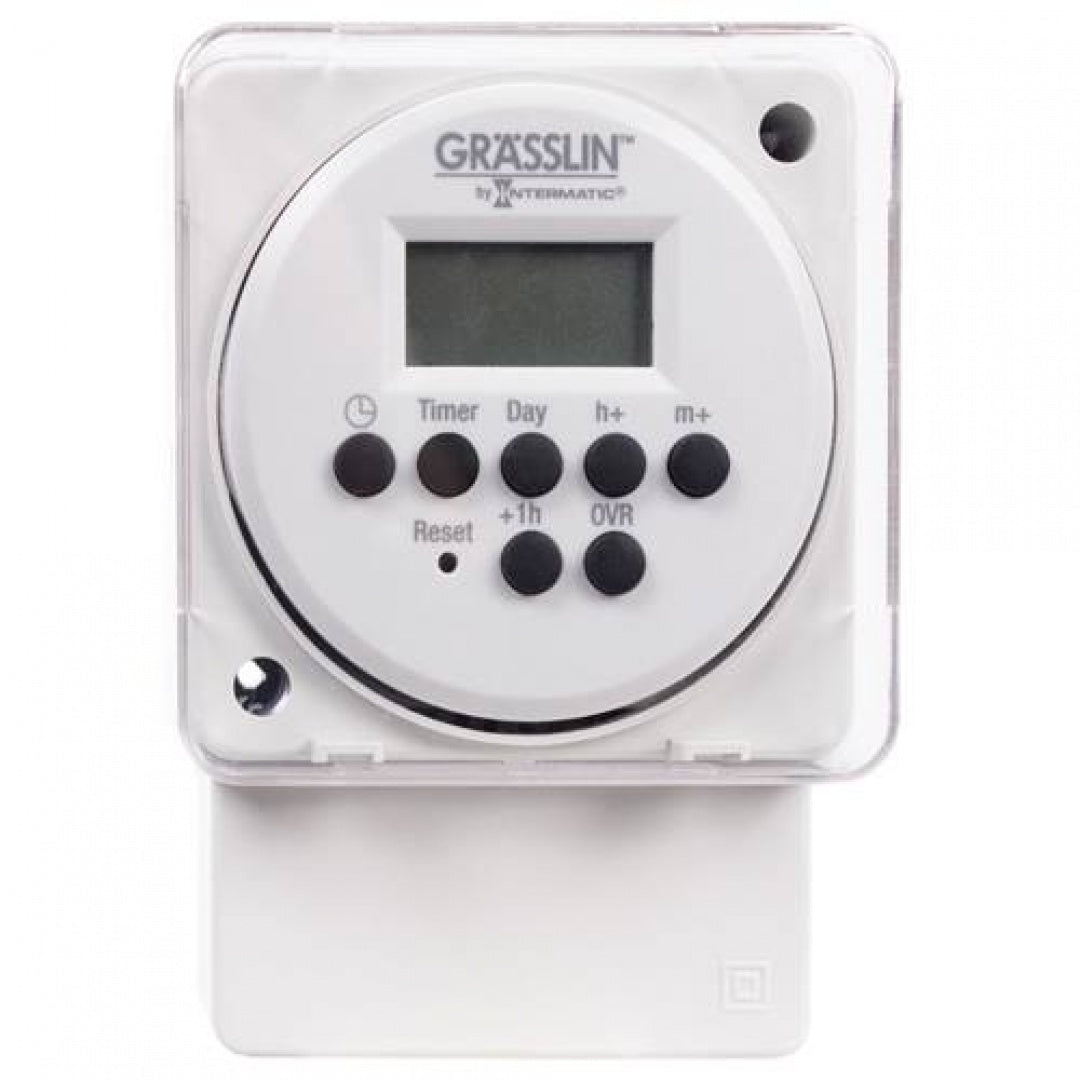

The Intermatic FM1D14A-12 is an electronic timer designed for control of HVAC systems, lighting, and various electrical loads. This model is programmable for both 24-hour and 7-day scheduling, allowing for flexible control in commercial and industrial settings.

• Programmable for 24-hour or 7-day schedules
• Compatible with panel, surface, flush, or DIN rail mounting
• Self-recharging battery with backup protection for up to 2500 hours

Product Highlights

This timer includes an LCD display and manual override with status indication for ease of use in various applications.

Product Information

Standard Information

• Brand: Intermatic
• MPN: FM1D14A-12

Technical Specifications

• Voltage Rating: 12 VDC
• Contact Rating: 15 AMP @ 277 VAC, 1000 W @ 120 VAC (Tungsten)
• Amperage Rating: 15 A
• Wattage: 1000 Watt
• Frequency: 50/60 Hz
• Size: 2.36 x 2.36 inches
• Number of Poles: 1
• Operating Temperature: -40 to +131 degrees F
