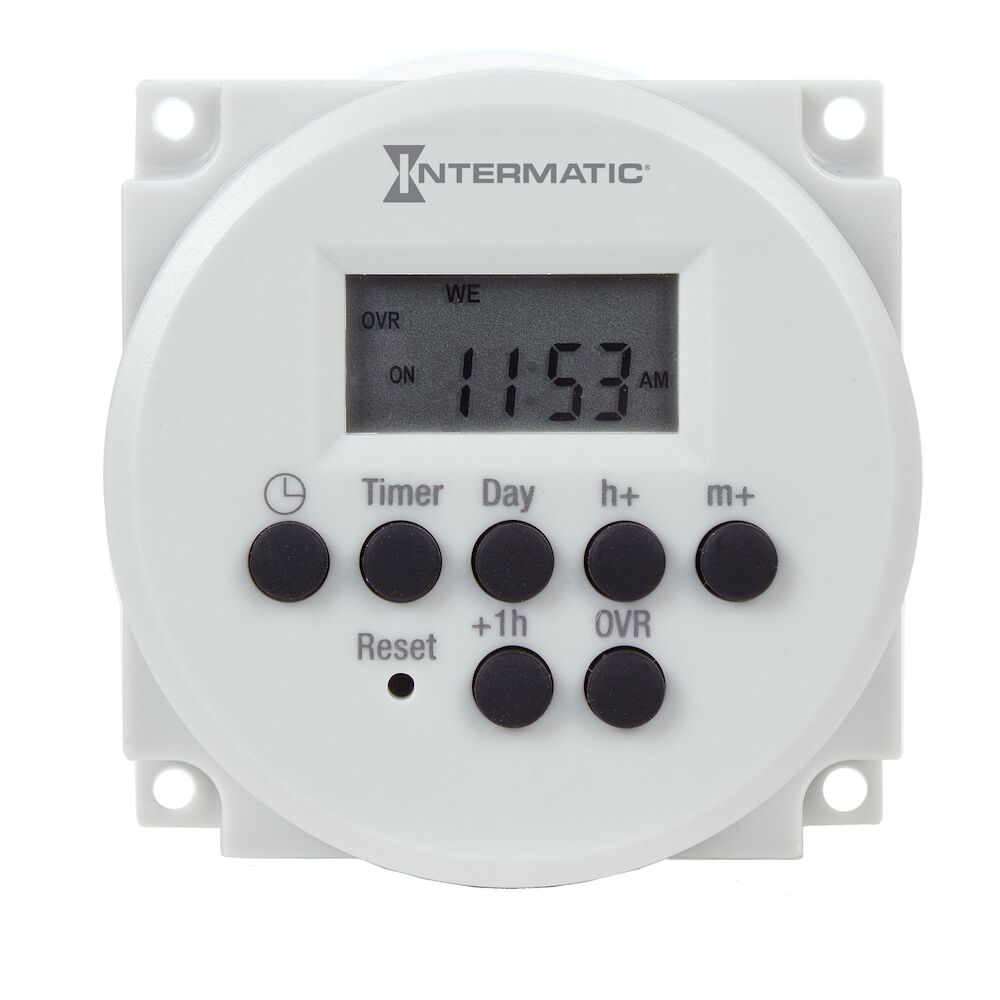

Intermatic FM1D14-AV-U Digital Timer 120-277V One Circuit Electronic

Product Description

The Intermatic FM1D14-AV-U digital timer is a versatile time-based control solution for various electrical loads. This one-channel electronic timer supports both 24-hour and 7-day programming schedules, making it ideal for commercial and industrial applications.

• Brand: Intermatic
• MPN: FM1D14-AV-U
• Supports ventilating, heating, cooling, lighting, and other electrical loads

Product Highlights

This digital timer is programmable and supports panel, surface, flush, or DIN rail mounting. It features a rechargeable battery backup, an easy-to-read LCD display, and manual override with status indication.

Product Information

Standard Information

• Brand: Intermatic
• MPN: FM1D14-AV-U
• Type: One Circuit Electronic

Technical Specifications

• Voltage: 120-277 VAC
• Wattage: 1000 Watts
• Action: SPDT
• Frequency: 50/60 Hz
• Size: 2.36 inches height x 2.36 inches width x 1.26 inches depth
• Depth: 1.26 inches
• Width: 2.36 inches
• Height: 2.36 inches
• Sub Brand: Grasslin
• Connection Type: 1/4 Inch Quick Connect
• Mounting Type: Panel Mount
• Warranty Length: 1 year
• Country of Origin: China
• Power Consumption: 1.4 W
• Number of Circuits: 1
• Contact Configuration: 1 NO/1 NC
• Operating Temperature: -40 to 131 degrees F
• Max Operating Temperature: 135 degrees F
• Min Operating Temperature: -15 degrees C
• UPC: 078275142770
