Intermatic FM1D14-24U DGTL TMR,24V,14 SET PNT UN PCK

Product Description

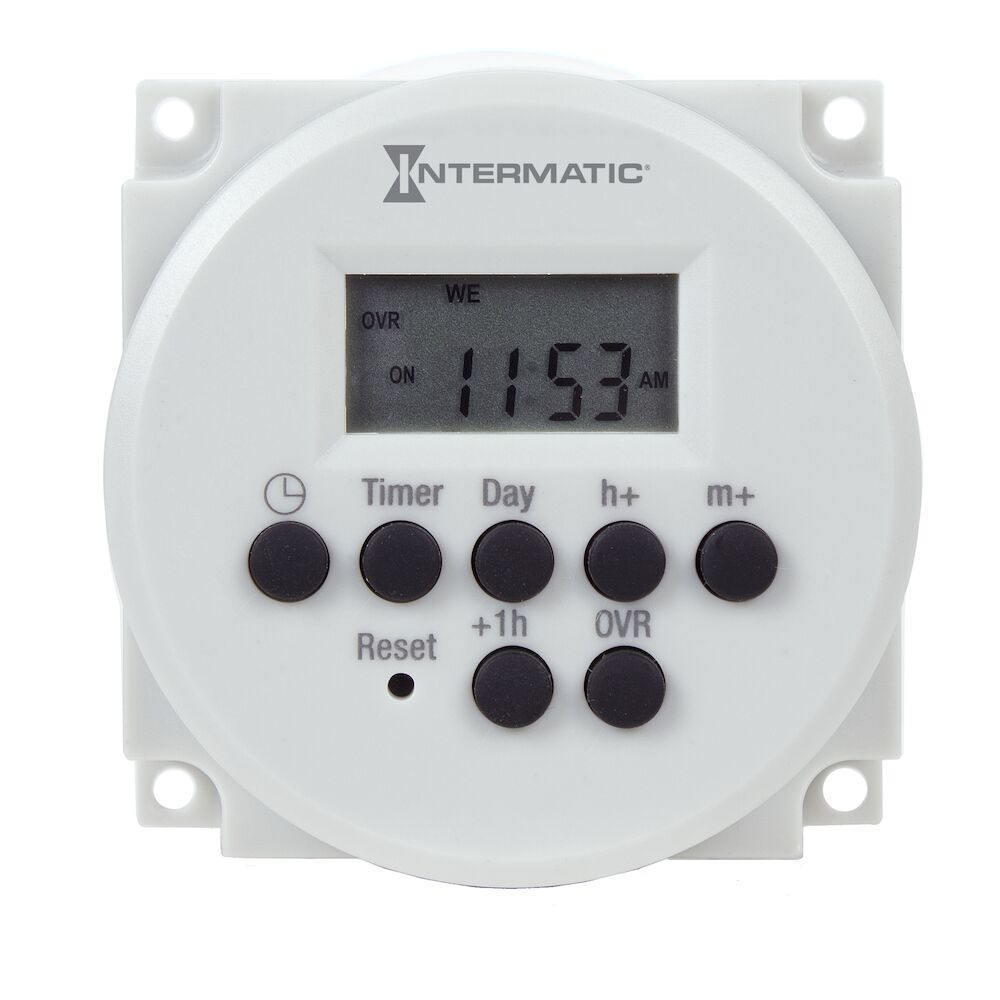

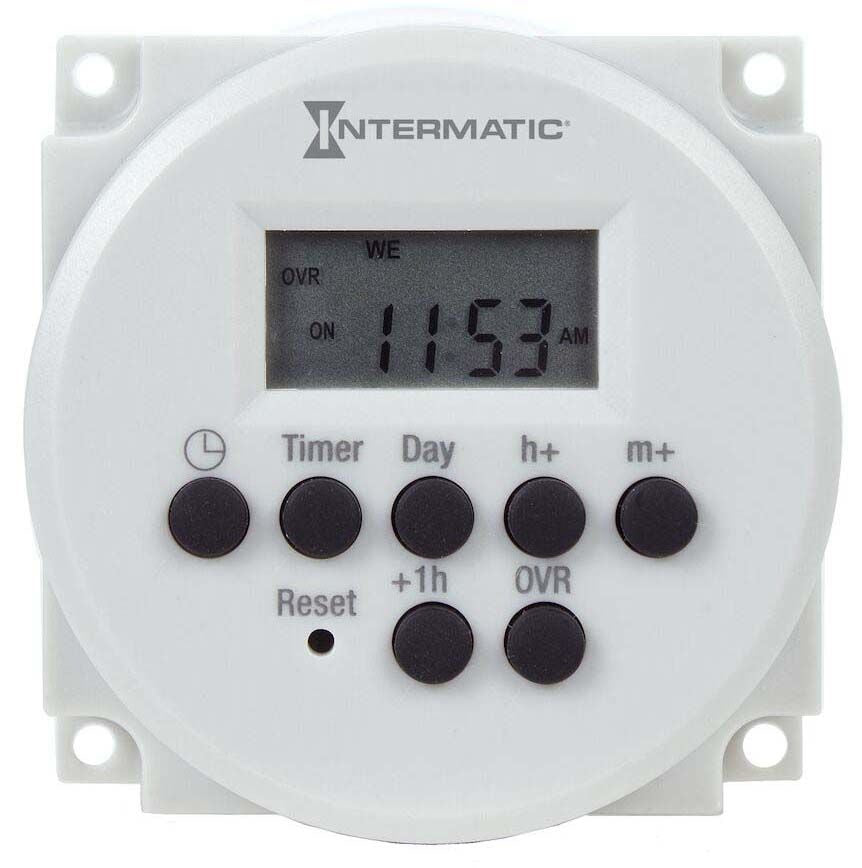

The Intermatic FM1D14-24U is a digital timer switch designed for controlling electrical loads such as ventilation, heating, and lighting in commercial and industrial settings. This model offers versatile programming for 24-hour or 7-day schedules, suitable for a variety of applications. It can be easily mounted on panels, surfaces, or DIN rails.

• Single-channel time switch
• Supports a timing range from one minute to 24 hours
• Includes a rechargeable battery with backup protection

Product Highlights

Offers flexibility and energy control for various electrical devices, ideal for HVAC and industrial automation.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc

Technical Specifications

• MPN: FM1D14-24U
• Voltage: 24 VAC/VDC
• Wattage: 1000 W
• Action: SPDT
• Amperage Rating: 12 A
• Dimensions: 2.36 inches height x 2.36 inches width x 1.26 inches depth
• Mounting Type: Panel Mount
• Temperature Rating: -40 to +131 degrees F
