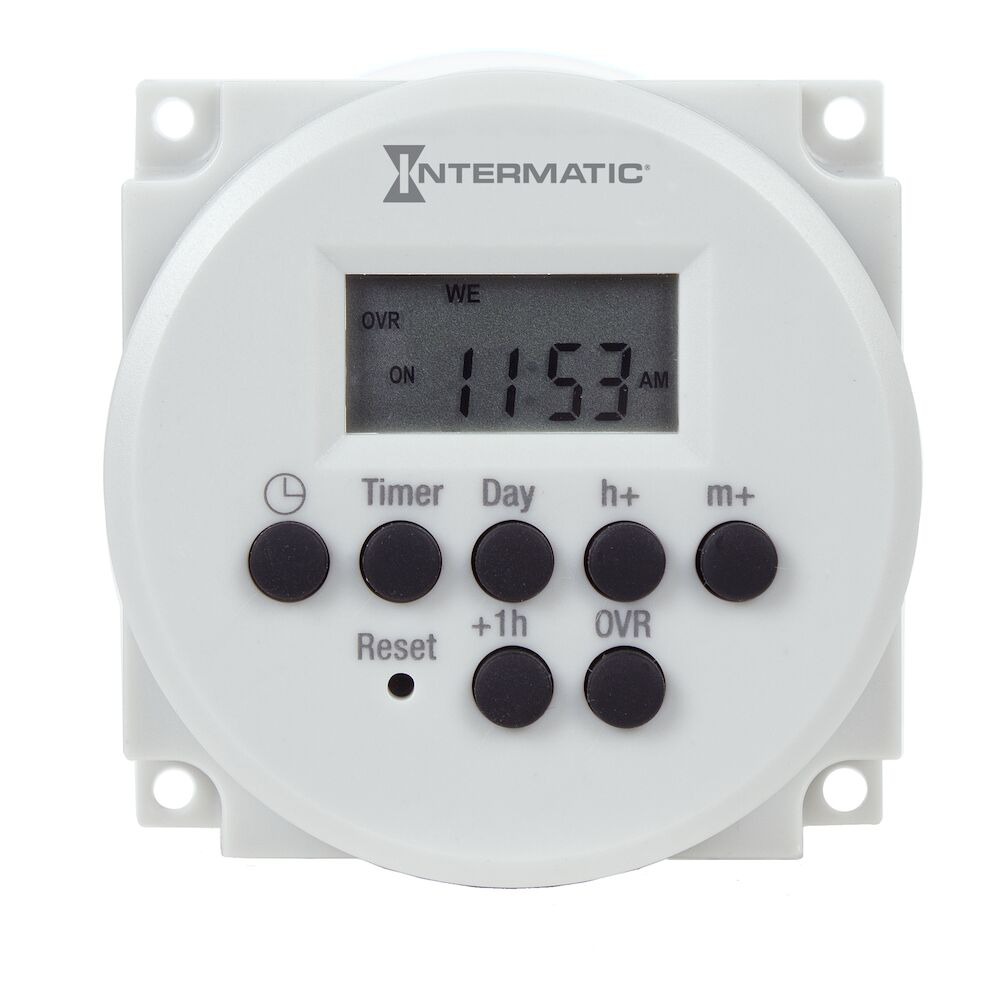

Intermatic FM1D14-24U DGTL TMR 24V 14 SET PNT UN PCK

Product Description

The Intermatic FM1D14-24U is an electronic time switch designed for managing various electrical loads in commercial and industrial settings. This device can control pumps, fans, heaters, and HVAC systems effectively. The switch supports both 24-hour and 7-day programmable schedules, providing flexibility for different operational needs.

• Programmable for 24-hour or 7-day schedules
• 14 setpoint programs for optimized control
• Available for panel, flush, or DIN rail mounting

Product Highlights

The FM1D14-24U comes with an LCD display and a rechargeable battery, offering backup power for up to twenty-five hundred hours.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc

Technical Specifications

• Input Voltage: 24 VAC/VDC
• Wattage: 1000 W
• Dimensions: 2.36 in Height x 2.36 in Width x 1.26 in Depth
• Action: SPDT
• Mounting Type: Panel Mount
• Operating Temperature: -40 to +131 degrees F
• Number of Poles: 1
• Battery Type: Rechargeable
