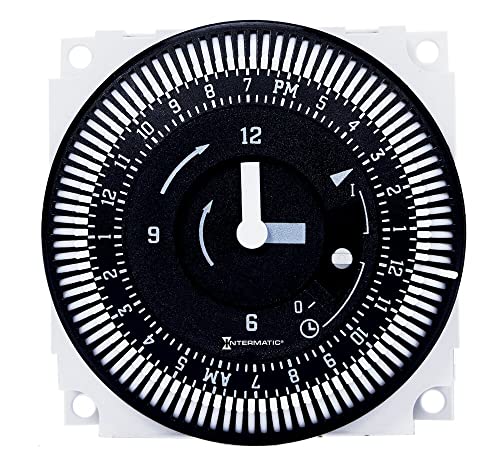

Intermatic FM1STUZH-24U Electromechanical Timer Module 21A SPDT 24V

Product Description

The Intermatic FM1STUZH-24U is an electromechanical timer module designed for 24-hour scheduling. It is suitable for use in machine control panels, circuit boards, and other equipment requiring reliable timing control. This module supports up to a 21-amp single pole double throw switch, catering to various applications like HVAC, lighting, and security systems.

• 21-amp SPDT switch
• 96 captive trippers with 15-minute intervals
• Manual override switch

Product Highlights

This timer module provides precise control for commercial and industrial purposes. It features a noise-immune synchronous drive and compact design for easy installation.

Product Information

Standard Information

• Brand: Intermatic
• MPN: FM/1STUZH-24U
• Type: Electromechanical Timer Module

Technical Specifications

• Amperage Rating: 21 A
• Contact Form: 1NO-1NC 1SPDT
• Dimensions: 2.36 in H x 2.36 in W x 1.25 in D
• Electrical Connections: 1/4 in Quick-Connect
• Horsepower: 1 hp, 2 hp
• Mounting Type: Panel
• Operation Mode: 24 hr
• Series: FM1
• Temperature Rating: -40 to 185 deg F
• Time Setting: 15 min to 24 hr
• Voltage Rating: 24 VAC
