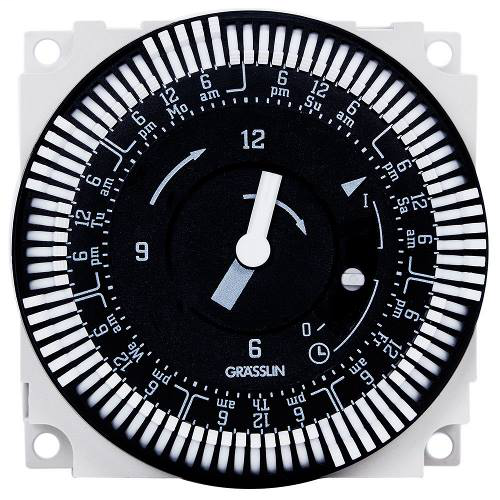

Intermatic FM1QWUZH-120U 7D TMR W/MNL 120V

Product Description

The Intermatic FM1QWUZH-120U is a timer module designed for use in various industrial applications. This product provides reliable control for heating, ventilation, air conditioning, refrigeration, lighting, security systems, circulating pumps, and spas. The timer operates at 120 volts and supports up to 21 amps, offering a practical solution for equipment that does not exceed 2 horsepower or 240 VAC.

• Quartz electromechanical timer
• 7-day programmable options with battery backup
• Panel mount design

Product Highlights

The FM1QWUZH-120U is suitable for 12, 24 VAC/VDC, and single-phase applications, with features that enhance usability and reliability.

Product Information

Standard Information

• Catalog Number: FM1QWUZH-120U
• Brand: Intermatic

Technical Specifications

• Voltage Rating: 120 Volt
• Wattage: 1350 Watt
• Amperage Rating: 21 Amp
• Temperature Rating: -4 to 131 degrees F
• Mounting Type: Panel Mount
• Contact Configuration: 1 NO/1 NC
• Number of Poles: 1
• Timing Range: 2 hours to 7 days
• Frequency: 50/60 Hz
• Special Features: Noise immune, captive trippers with 15-min intervals, compact size
