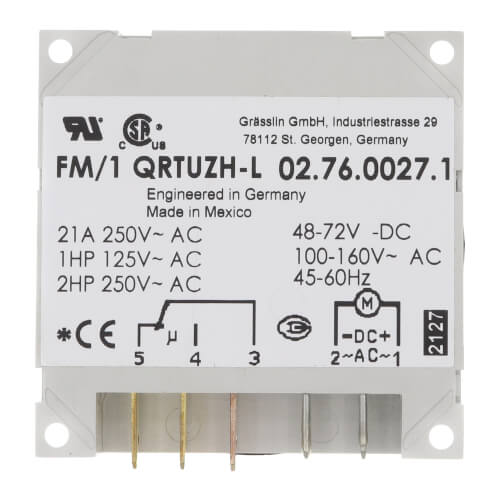

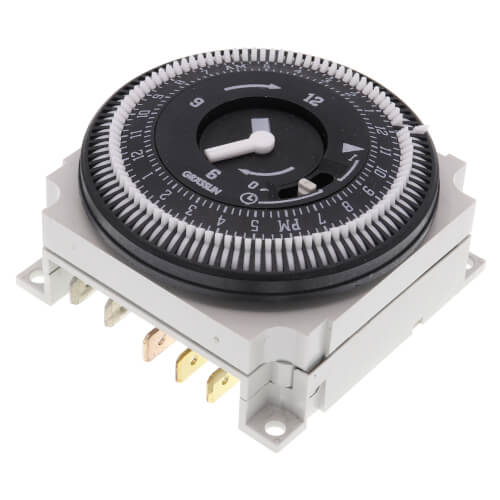

Intermatic FM1QTUZH-120U 24-Hour Timer Module 21A SPDT 120V

Product Description

The Intermatic FM1QTUZH-120U is a 24-hour timer module designed for various industrial and commercial applications. This timer module supports 120V input and provides 21A SPDT switching, making it suitable for controlling heating, ventilation, refrigeration, lighting, security, and pump systems.

• Integrated inside machine control panels
• 21A SPDT switch

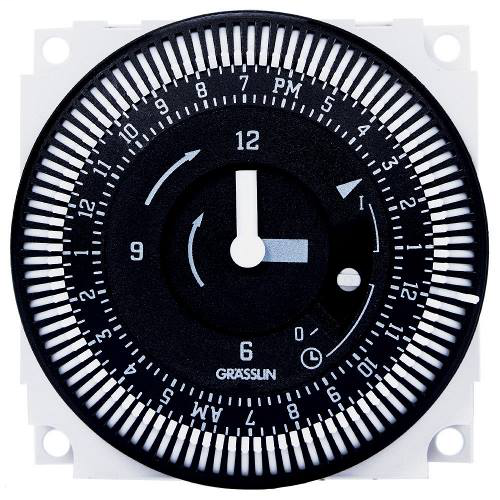

• True clock face for easy setting

Product Highlights

The FM1QTUZH-120U timer module is known for its true clock face and easy-to-set design. It features noise immunity, making it ideal for robust applications and can be used as a standalone unit or with an indoor or outdoor enclosure.

Product Information

Standard Information

• Manufacturer: Intermatic
• Brand: Intermatic
• Sub Brand: Grasslin

Technical Specifications

• MPN: FM1QTUZH-120U
• Input Voltage: 120V
• Timer: 24-hour, 7-day
• Switch Type: SPDT
• Wattage: 1350W
• Amperage: 21A
• Mounting Type: Panel
• Enclosure Type: NEMA 3R
• Noise Immune: Yes
• Battery Backup: 7-Day carry-over
• Height: 2.36 inches
• Width: 2.36 inches
• Depth: 1.25 inches
