Intermatic FM/1QTUZ-120U 15M-24H ELT-MECHL TMR MOD W/BAT BU 120V

Product Description

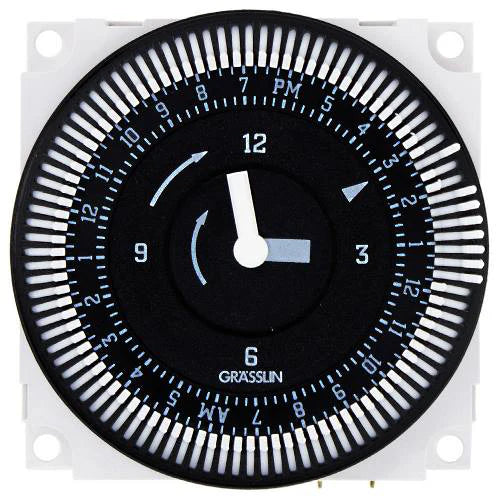

The Intermatic FM1QTUZ-120U is a Quartz Electromechanical Timer designed for a wide range of applications. It offers 24-hour or 7-day control. The module can handle electrical loads up to twenty-one amps or two horsepower at 240 volts AC. Its compact size allows for easy installation in control panels, making it suitable for HVAC, lighting, security, and pump systems.

• SPDT switching capability
• True clock face for easy programming
• Designed for robust environments

Product Highlights

Ideal for timely control and efficient operation in various systems.

Product Information

Standard Information

• Brand: Intermatic
• MPN: FM1QTUZ-120U

Technical Specifications

• Voltage: 120 Volt
• Wattage: 1350 Watt
• Contact Rating: 21 Amp
• Operating Temperature: -4 to 131 degrees F
• Dimensions: 2.36 height x 2.36 width x 1.25 depth inches
• Mounting Type: Panel Mount
• Action: SPDT
• Frequency: 50/60 Hz
