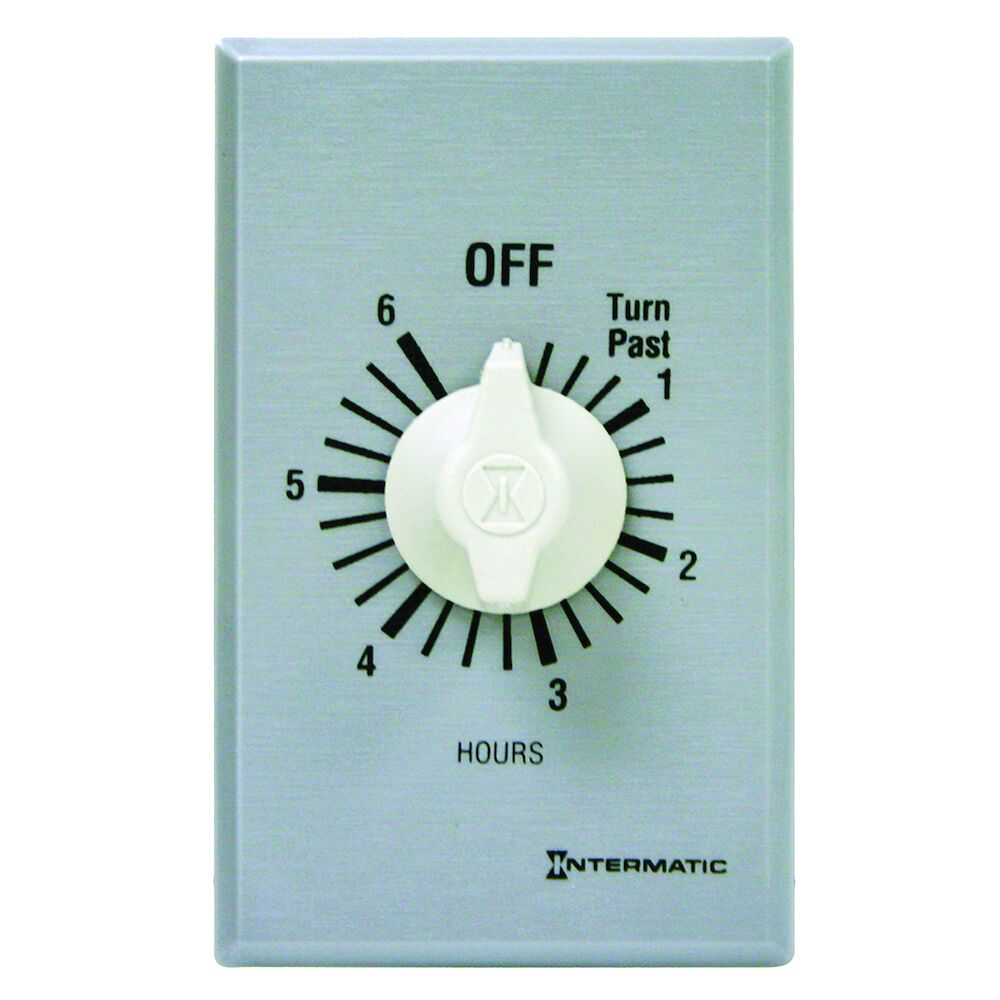

Intermatic FF6H 6 Hour Auto-Off Commercial Springwound Timer

Product Description

The Intermatic FF6H is a 6-hour auto-off commercial spring wound timer designed to replace any standard wall switch. This timer operates without electricity, providing an energy-efficient solution for controlling fans, lights, motors, and heaters.

• 6-hour timing range
• SPST (Single-Pole Single-Throw) contact form
• Can replace standard wall switches without electrical connection

Product Highlights

The FF6H timer helps manage energy consumption by automatically limiting the ON time for various electrical loads.

Product Information

Standard Information

• Brand: Intermatic
• MPN: FF6H

Technical Specifications

• Action: SPST
• Voltage Rating: 125-277 V
• Amperage Rating: 15 A
• Max Motor Load: 1 hp at 120 V, 2 hp at 240 V
• Temperature Rating: 32-104 degrees F
• Size: 2.79 inches height x 1.6 inches width x 1.19 inches depth
• Material: Plastic with a brushed metal look plate
• Frequency: 50/60 Hz
• Warranty Length: 1 year
• Contact Configuration: 1 NO
