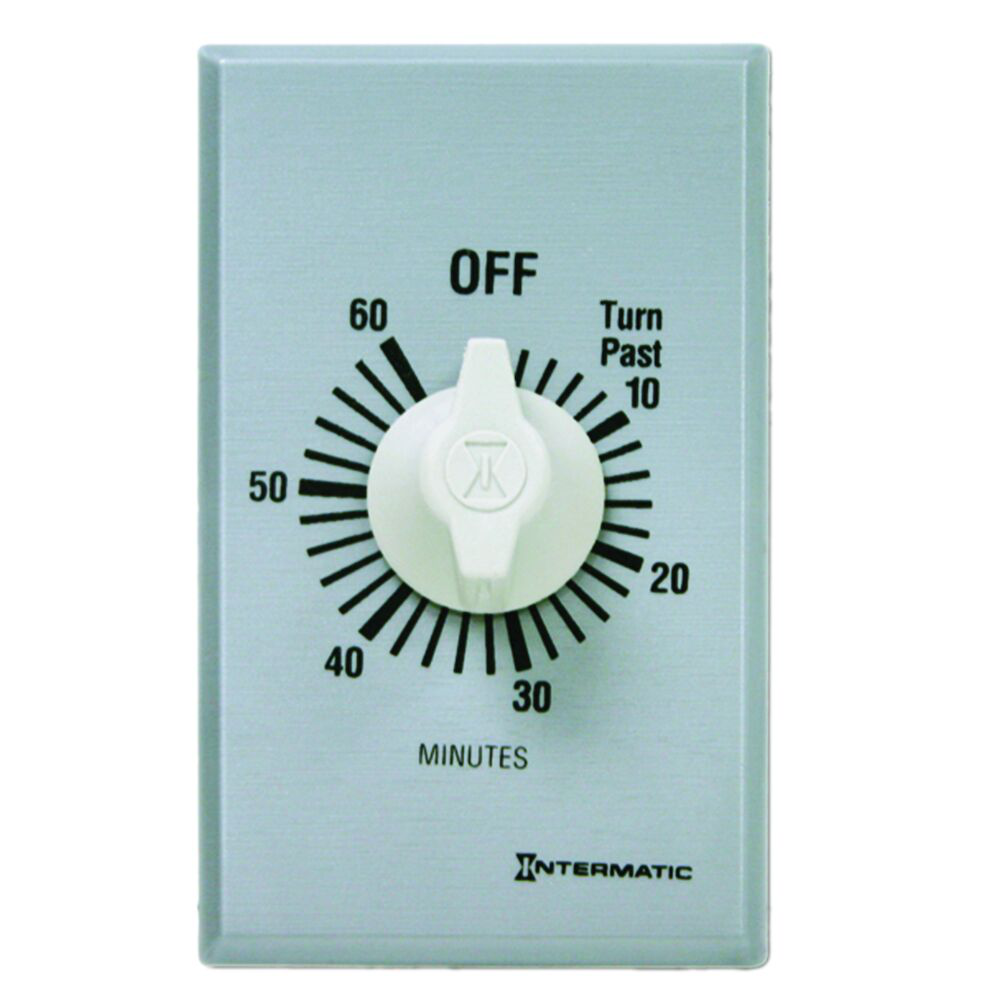

Intermatic FF460M 60 Minute 125 to 277 VAC 60 Hz DPST Countdown Timer

Product Description

The FF460M from Intermatic is a 60-minute countdown timer that operates on a voltage range of 125 to 277 VAC. This device is designed to replace standard wall switches, requiring no electricity for operation. It is efficient for controlling fans, lighting, motors, and heaters, making it ideal for various applications.

• 60-minute timing capability
• DPST (Double-Pole Single-Throw) functionality
• Compatible with incandescent, fluorescent, CFL, and LED lighting

Product Highlights

This timer automatically limits the ON time of connected devices, enhancing energy savings. Its straightforward installation process uses teeter-type terminals for quick connections.

Product Information

Standard Information

• Color: Silver
• Warranty Length: 1 year

Technical Specifications

• Catalog Number: FF460M
• Amperage: 15 Amp
• Voltage Range: 125 - 277 VAC
• Dimensions: 2.79 inches height x 1.6 inches width x 1.19 inches depth
• Operating Temperature Range: 4 degrees C to 120 degrees F
• Hertz: 50/60 Hz
• Mounting Type: Wall Mount
• Contact Rating: 7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive)
