Intermatic FF36H 6 Hour 125-277 V SPDT

Product Description

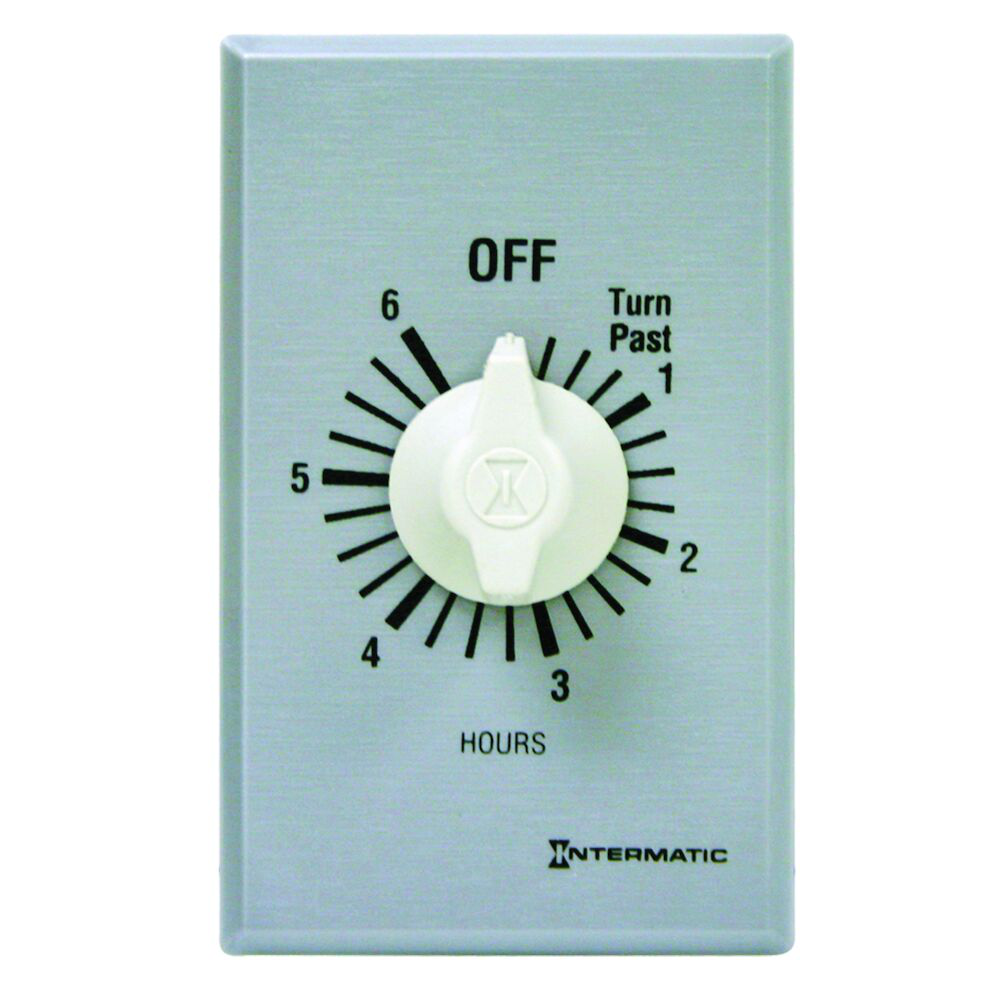

The Intermatic FF36H is a mechanical countdown timer with a 6-hour maximum setting. It operates without electricity and is suitable for replacing any standard wall switch. Designed to limit the ON time for devices like fans, lights, motors, and heaters, it features a brushed metal look plate and a rugged time dial.

• 6-hour timer
• SPDT (Single-Pole Double-Throw)
• Compatible with various load types

Product Highlights

This timer ensures energy efficiency by automatically limiting the ON time of energy-consuming loads. It is easy to install and does not require electricity to operate.

Product Information

Standard Information

• Brand: Intermatic
• Country of Origin: Tunisia

Technical Specifications

• MPN: FF36H
• Voltage: 125-277 V
• Amperage: 15 A
• Contact Configuration: 1 NO / 1 NC
• Height: 2.79 inches
• Width: 1.6 inches
• Depth: 1.19 inches
• Mounting Type: Wall
• Action: SPDT
• Material: Plastic
• Weight: 0.35 pounds
• Load Type: Back
• Max Operating Temperature: 120 degrees F
• Min Operating Temperature: 4 degrees C
• Horsepower: 1 hp at 120 VAC, 2 hp at 240 VAC
• Frequency: 50/60 Hz
• Standards: cCSAus Certified, UL Listed, UL Recognized, HVACR, NEC
• Power Source: Mechanical
• Applications: Indoor, HVAC, CFL Lighting, Fans, Electric Motors, Heaters
• Warranty Length: 1 year
