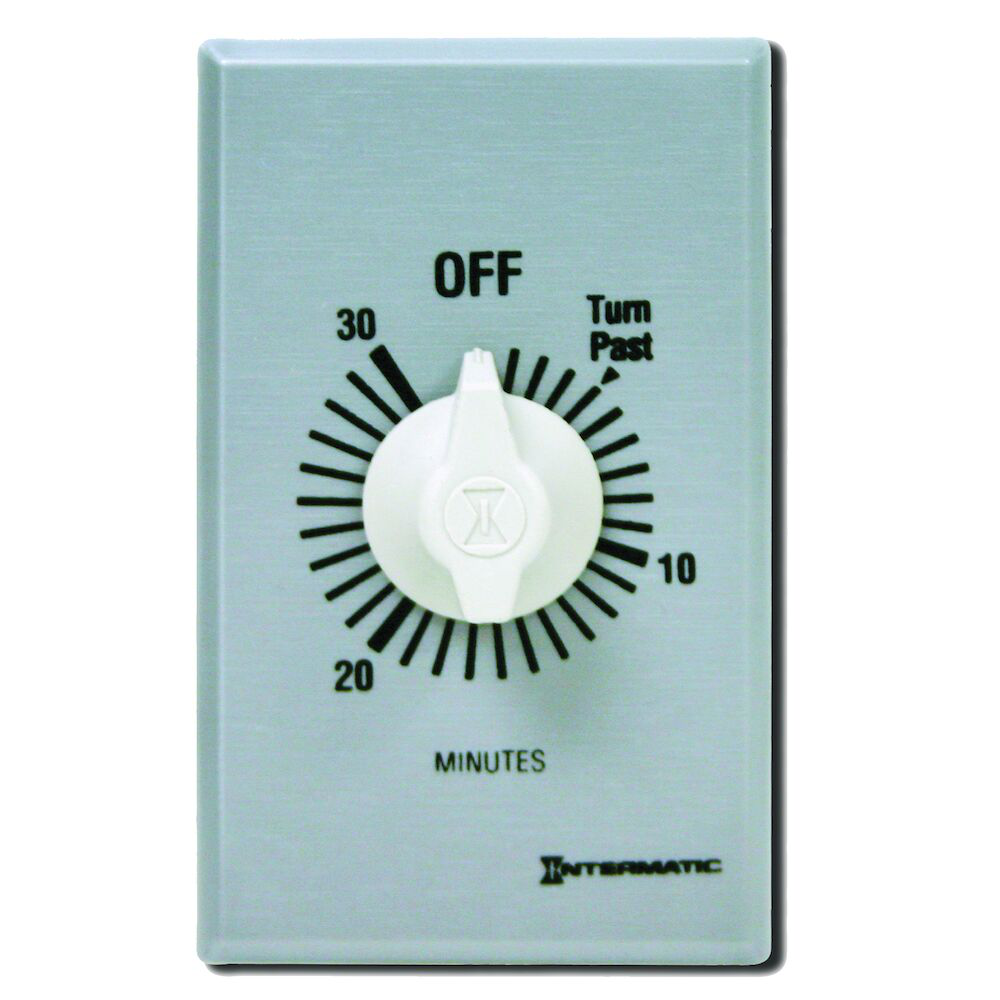

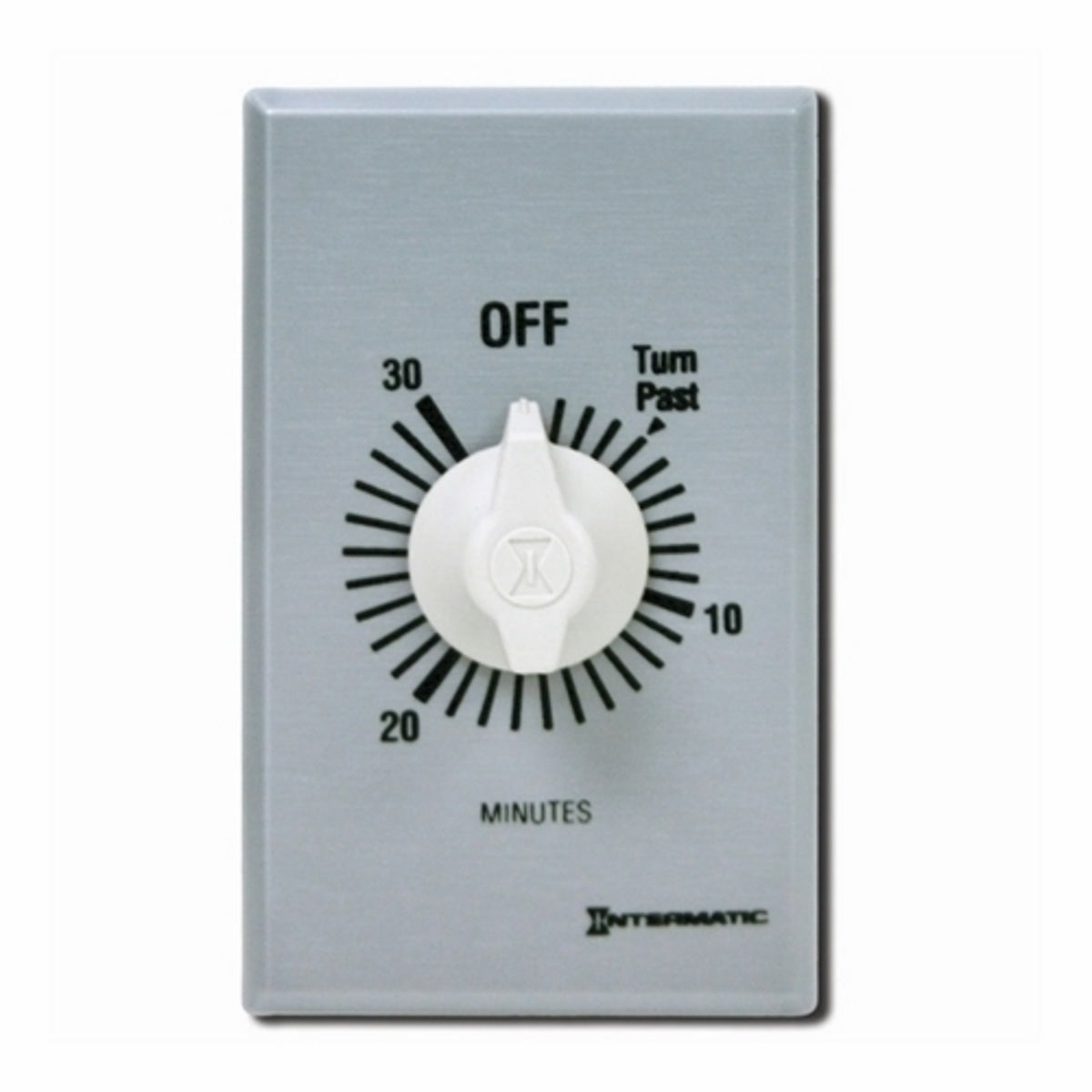

Intermatic FF330M Spring Wound Countdown Timer 125-277 VAC 30 Minute Max Without Hold

Product Description

The Intermatic FF330M is a commercial spring wound countdown timer designed for use with 125 to 277 VAC. This timer does not require electricity and can replace standard wall switches. It is suitable for use with various loads such as lighting, motors, and heaters. The timer automatically limits on times to improve energy efficiency.

• 30 minutes maximum timing range
• Single-Pole Double-Throw (SPDT) contact form
• Indoor use, ideal for fans, electrical motors, and HVAC systems

Product Highlights

This mechanical timer is user-friendly and efficient, making it ideal for commercial applications.

Product Information

Standard Information

• Catalog Number: FF330M
• Manufacturer: Intermatic

Technical Specifications

• Operating Voltage: 125 - 277 VAC
• Current Rating: 15 Amps
• Timing Range: 30 minutes
• Contact Configuration: 1 NO/1 NC
• Mounting Type: Wall
• Temperature Rating: -40 to 104 degrees Fahrenheit
• Horsepower Rating: 1 HP at 120 VAC, 2 HP at 240 VAC
• Country of Origin: Tunisia
