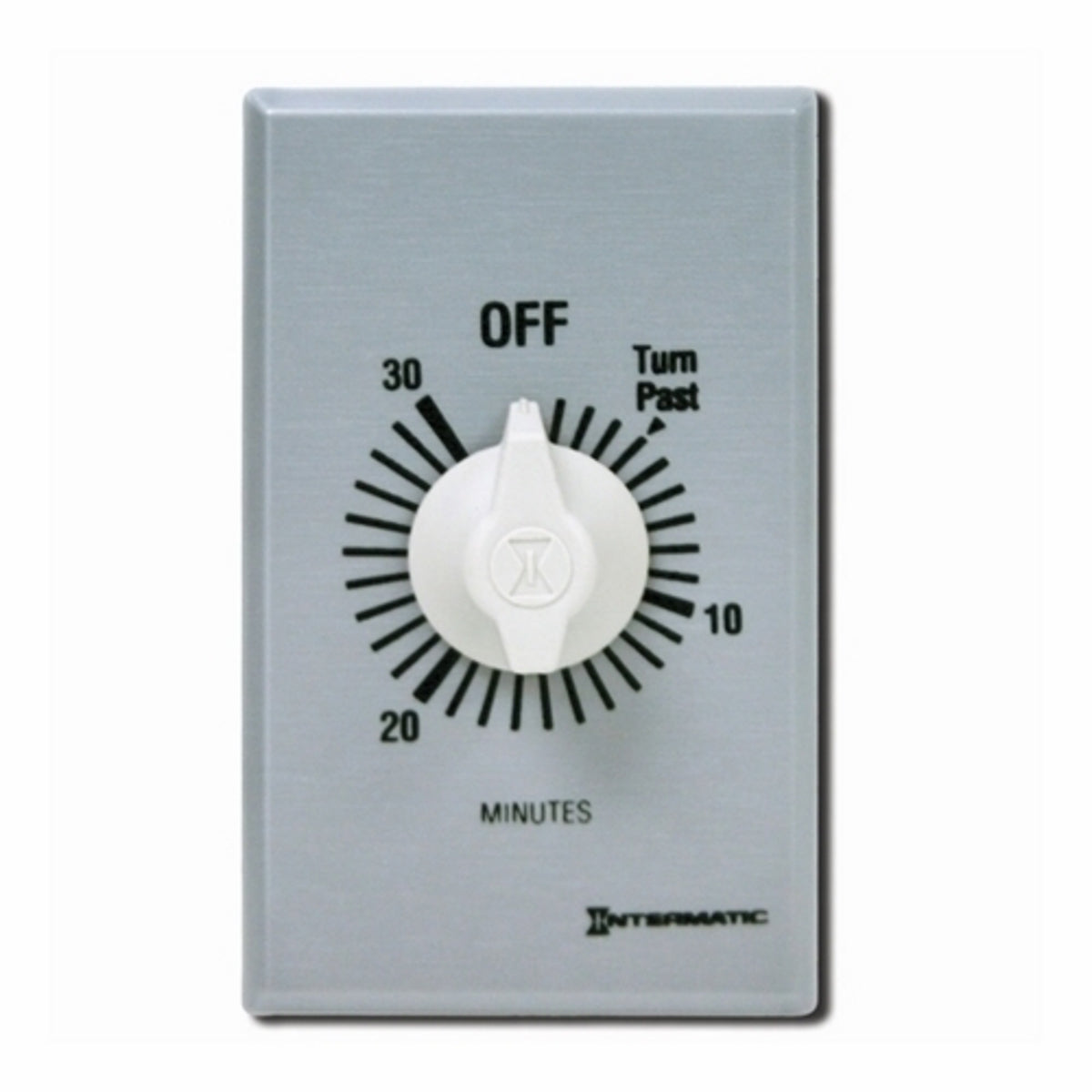

Intermatic FF330M Spring Wound Countdown Timer Commercial 125-277 VAC 30 Minute Max Without Hold SPDT

Product Description

The Intermatic FF330M is designed for commercial applications. This spring wound countdown timer operates without needing electricity, making it effective for controlling various energy-consuming devices such as fans, lights, motors, and heaters. It can replace standard wall switches and is ideal for settings that require a timed operation. This timer features a brushed metal look, which is compliant with NEC standards.

• Operates with a voltage rating of 125 to 277 VAC.
• Features a 30-minute maximum timing setting.
• Includes an SPDT contact configuration.

Product Highlights

This mechanical timer is user-friendly and allows for easy installation in wall-mounted settings, providing energy-efficient control over lighting and equipment.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer Part Number: FF330M

Technical Specifications

• Voltage Rating: 125 - 277 VAC
• Amperage Rating: 15 A
• Timing Range: 30 Minutes
• Dimensions: 2.79 inches height x 1.6 inches width x 1.19 inches depth
• Mounting Type: Wall
• Contact Configuration: 1 NO/1 NC
• Country of Origin: Tunisia
• Standards/Approvals: cCSAus Certified, UL Listed, UL Recognized, HVACR, NEC
