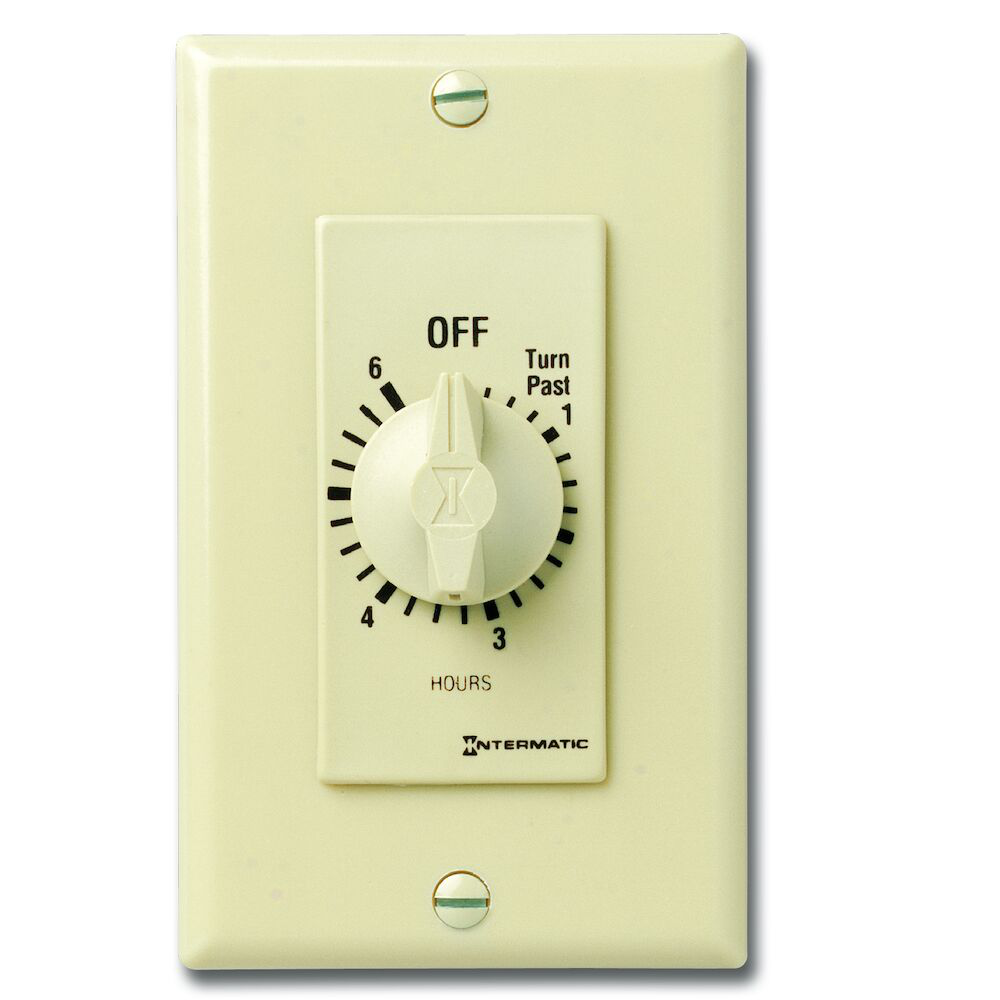

Intermatic FD6H 6 Hour 125 to 277 VAC 60 Hz SPST Ivory Countdown Timer

Product Description

The Intermatic FD6H is a six-hour countdown timer, designed for operation without electrical power. This timer is suitable for fans, lighting, motors, and heaters, limiting operational time effectively. Constructed to replace standard wall switches, it features a mechanical design that ensures reliable function.

• 6-hour time setting
• SPST contact for simple control
• Quick installation with teeter-type connections

Product Highlights

This timer is easy to install and operates without requiring electricity. It provides automated time management for various electrical loads.

Product Information

Standard Information

• Manufacturer: Intermatic
• Master SKU: c7b6ecbb-7f1b-49d6-94ff-b605e7e3df60

Technical Specifications

• Catalog Number: FD6H
• Voltage: 125-277 VAC
• Amperage: 15 Amps
• Frequency: 50/60 Hz
• Dimensions: 4.125 inches height x 1.75 inches width x 1.25 inches depth
• Weight: 0.299 lb
• Contact Rating: 7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive)
• Operating Temperature: -40 to 104 degrees F
• Application: Indoor lighting control, fan control, motor control, HVACR
