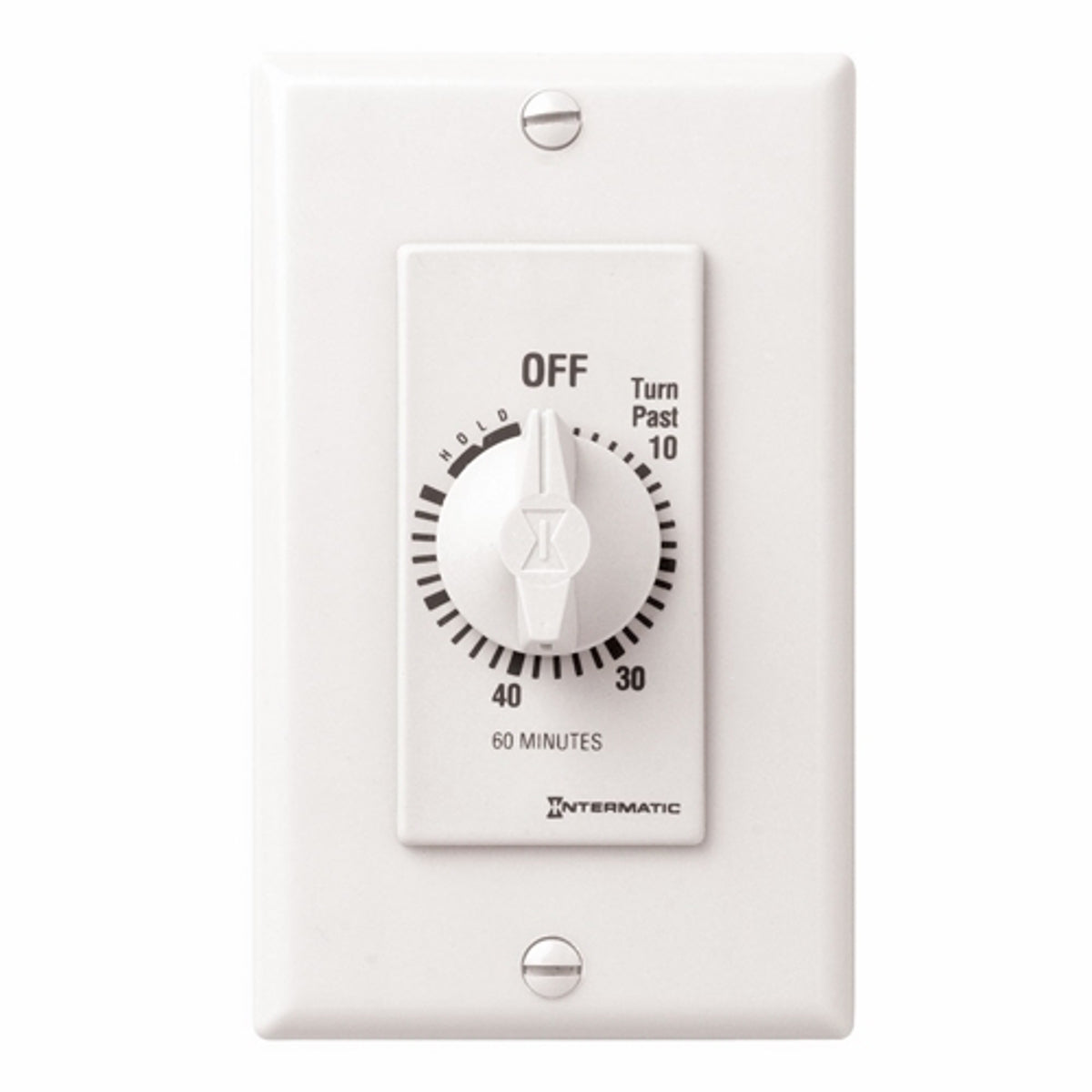

Intermatic FD60MHW TIMER WND SPR 60MIN 125/257VAC 1NO-SPST

Product Description

The Intermatic FD60MHW is a spring wound timer that operates without electricity. It has a 60-minute timer setting and supports voltages of one hundred twenty-five to two hundred fifty-seven VAC. This product is designed to replace standard wall switches and can control lighting, motors, and heating devices.

• 60-minute timer with hold feature.
• SPST (Single-Pole Single-Throw) design.
• Breaks circuit at end of timing cycle.

Product Highlights

This timer is ideal for controlling various electrical loads automatically, making it suitable for fans, lights, and motors. It provides a straightforward solution for those needing a wall-mounted timer.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer Part No: FD60MHW

Technical Specifications

• Voltage Rating: 125/257 VAC
• Amperage Rating: 15 A
• Contact Configuration: 1NO/SPST
• Dimensions: 2.79 inches H x 1.6 inches W x 1.19 inches D
• Operating Temperature: -40 to 104 degrees F
• Mounting Type: Wall
• Series: FD Series
