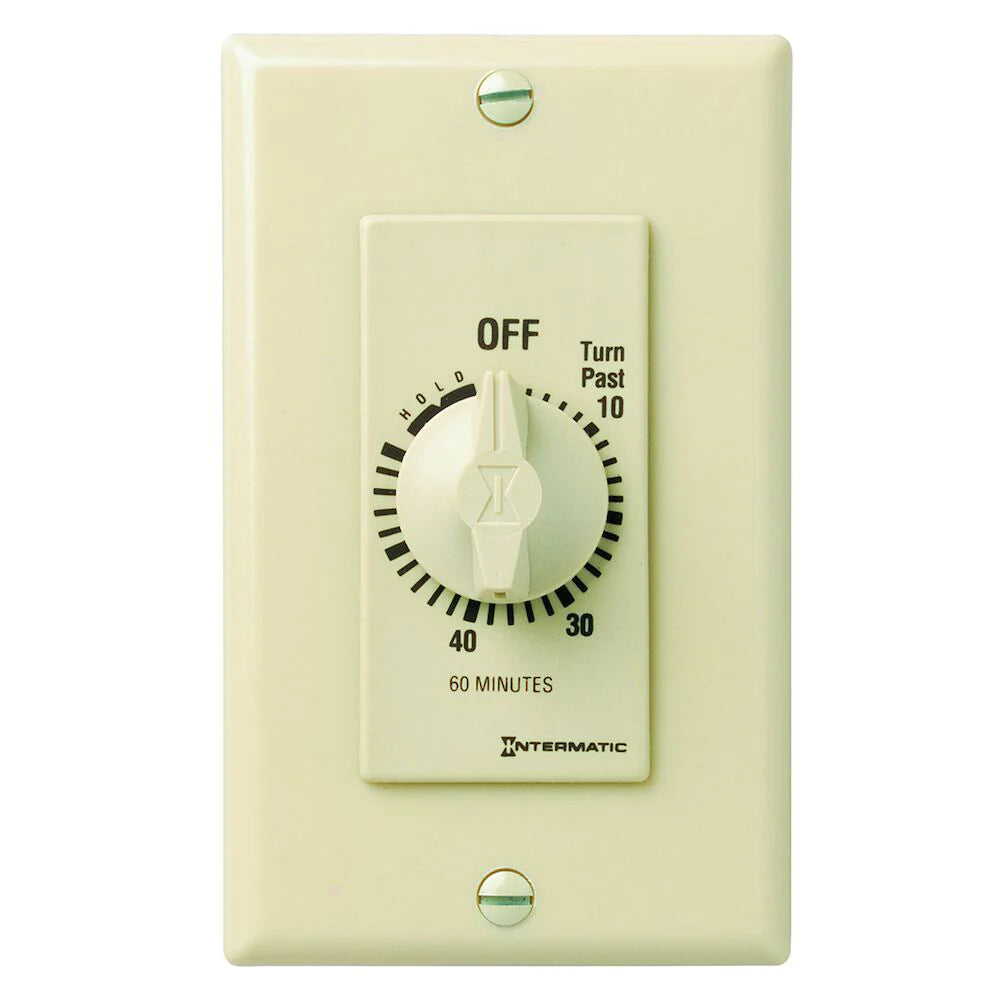

Intermatic FD60MH TIMER SPR WND 60MIN 125/257VAC 1NO-SPST

Product Description

The Intermatic FD60MH is a spring wound timer designed for use in various electrical applications. This timer operates on a voltage range of one hundred twenty-five to two hundred fifty-seven volts AC and accommodates a maximum load of fifteen amps. With a time setting of sixty minutes, it automatically shuts off after the set time, effectively managing power consumption for fans, lights, and electric motors.

• Mechanical timer does not require electricity for operation
• Compatible with incandescent, fluorescent, CFL, and LED fixtures
• Quick and easy installation with teeter-type electrical connections

Product Highlights

This timer is suitable for replacing standard or decorator-style wall switches. It can handle loads for heating and lighting and is ideal for use in residential and commercial settings.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer Part No: FD60MH

Technical Specifications

• Power Rating: 1 hp, 2 hp
• Voltage Rating: 125/257 VAC
• Amperage Rating: 15 A
• Time Setting: 60 min
• Mounting Type: Wall
• Temperature Rating: -40 to 104 degrees F
• Dimensions: 1.6 inches W x 1.19 inches D x 2.79 inches H
• Contact Form: 1NO/SPST
• Electrical Connections: Teeter
• Number of Poles: 1
