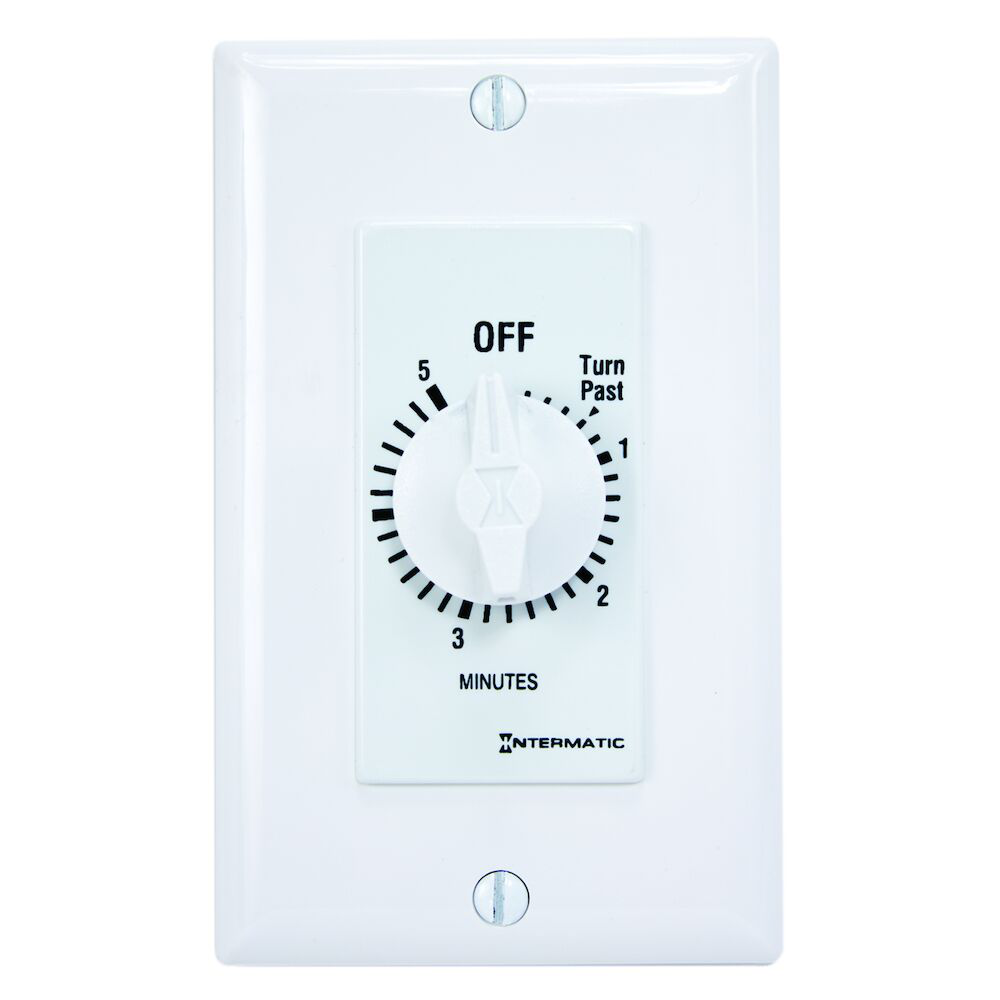

Intermatic FD5MW 5 Minute 125-277 V SPST White

Product Description

The Intermatic FD5MW is a mechanical timer designed for use in a variety of applications. This timer is suitable for walls and can replace any standard or decorator wall switch. It operates without electricity and manages the ON time for various devices like fans, lights, motors, and heaters. This model is capable of handling voltages between one hundred twenty-five and two hundred seventy-seven volts.

• 5-minute countdown feature.
• SPST action for versatile control.
• Compatible with incandescent, fluorescent, CFL, and LED bulbs.

Product Highlights

The timer is user-friendly, requires no neutral connection and includes a sturdy design made for easy installation.

Product Information

Standard Information

• Brand: Intermatic
• Model Number: FD5MW

Technical Specifications

• Voltage Range: 125-277 VAC
• Amperage Rating: 15 Amp
• Dimensions: 2.79 inches height x 1.6 inches width x 1.19 inches depth
• Weight: 0.299 lb
• Contact Configuration: 1 NO
• Operating Temperature: -40 to 104 degrees F
• Type: SPST
• Applications: Indoor lighting control, motor control, HVACR
