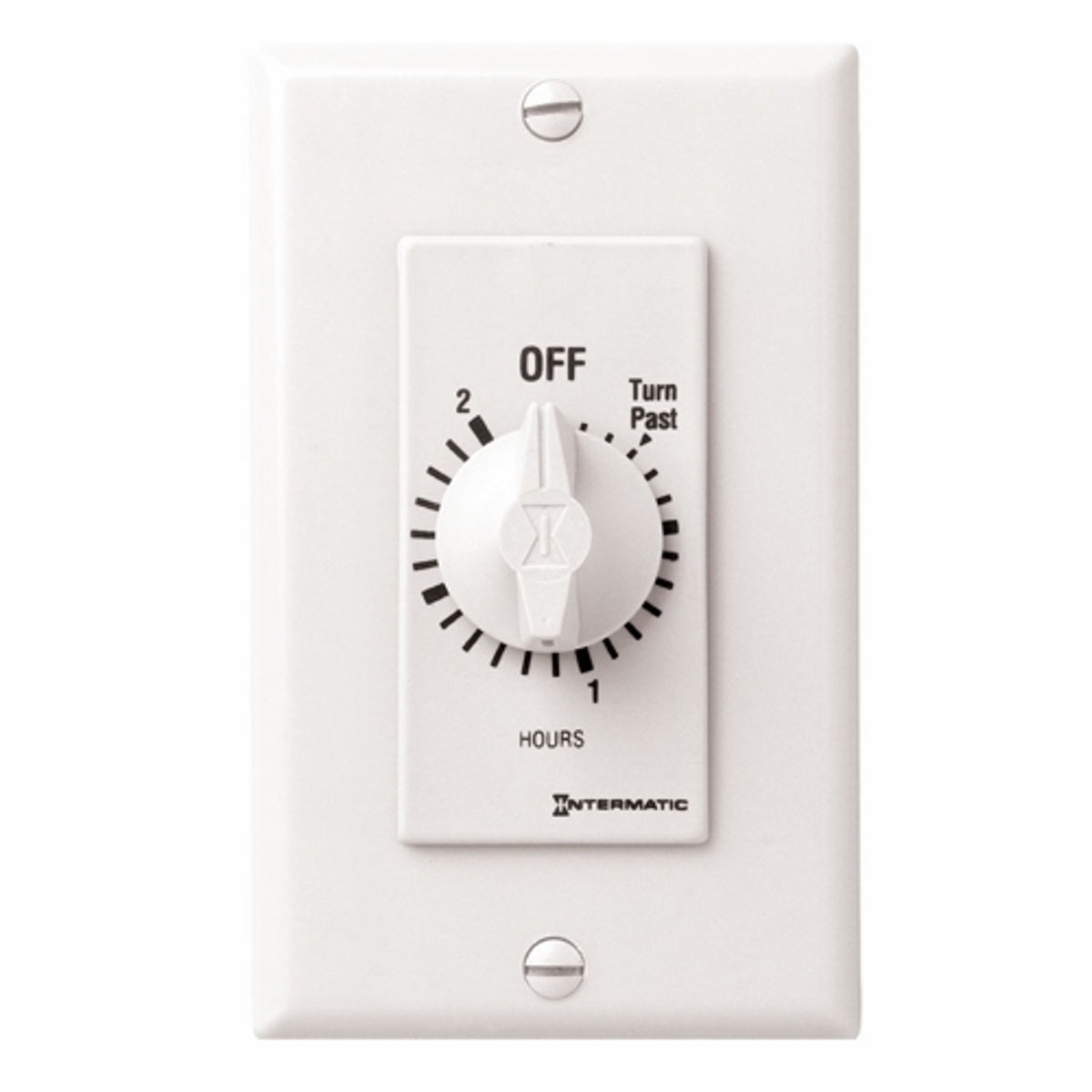

Intermatic FD32HW Spring Wound Countdown Timer, Decorator Style, 125-277 VAC, 50/60 Hz, SPDT, 2 Hour Max, Without Hold

Product Description

The Intermatic FD32HW is a spring wound countdown timer designed to replace any standard or decorator style wall switch, whether single- or multi-gang. This mechanical timer operates without electricity and limits the ON time for fans, lighting fixtures, motors, heaters, and other electrical loads. It is not suitable for sunlamps, saunas, or any load that could cause injury if timed incorrectly.

• Operates without electricity
• Supports various applications like indoor lighting and HVACR
• Easy installation with no neutral wire required

Product Highlights

This timer offers a straightforward solution for managing power consumption by automatically turning off devices after a preset time.

Product Information

Standard Information

• Brand: Intermatic
• MPN: FD32HW

Technical Specifications

• Catalog Number: FD32HW
• Manufacturer: Intermatic
• Voltage Rating: 125 to 277 VAC
• Amperage Rating: 15 Amps
• Temperature Rating: -40 to +104 Degrees F
• Time Setting: 2 Hours
• Dimensions: 2.79 inches height x 1.6 inches width x 1.19 inches depth
• Mounting Type: Wall
• Number of Poles: 1
• Special Features: Energy-efficient operation, spiral time scale for easy setting, one-year warranty
• Application: Indoor use, compatible with CFL and LED lighting, fans, and electric motors
• Contact Configuration: 1 NO/1 NC
