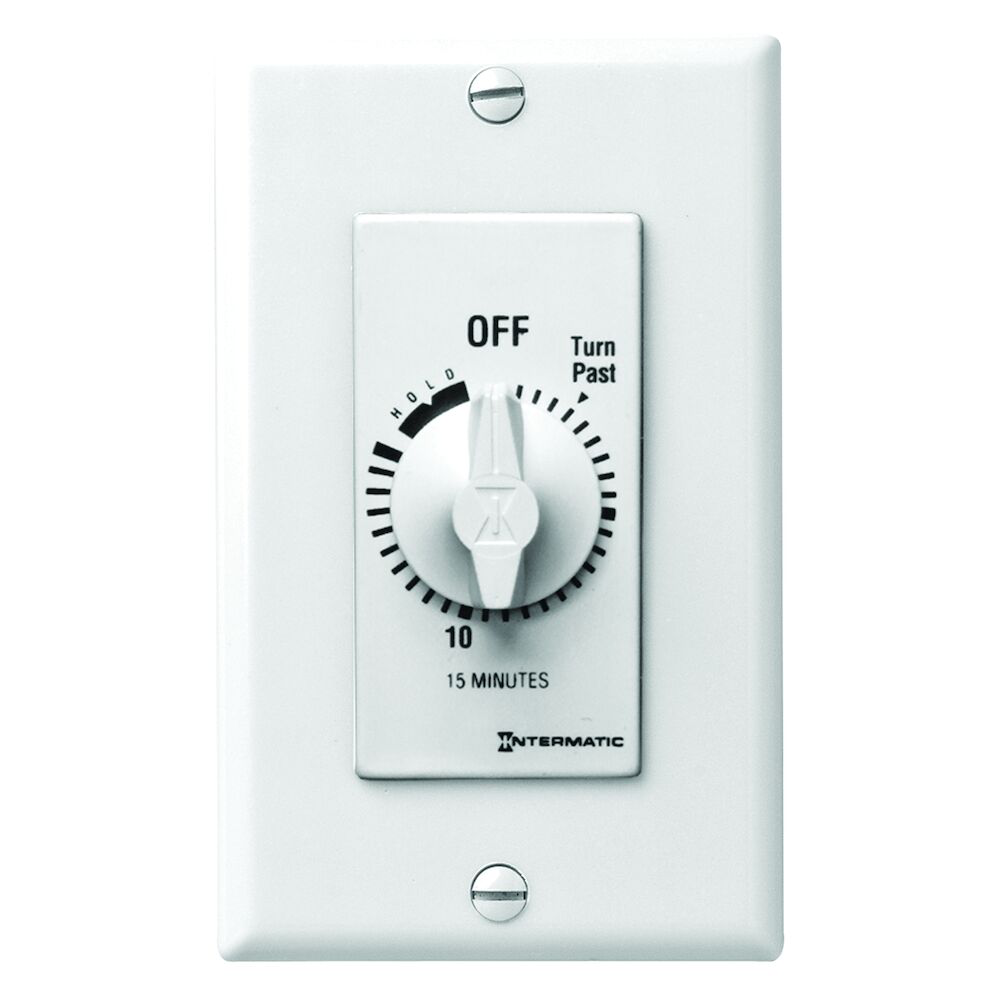

Intermatic FD15MHW Countdown Timer 15 Minute 125 to 277 VAC 60 Hz SPST White

Product Description

The Intermatic FD15MHW is a reliable mechanical countdown timer designed to replace standard wall switches. This timer operates without electricity and limits the ON time for various loads including fans, lighting, and motors. It is ideal for use in residential and commercial settings where efficient energy management is necessary.

• 15-minute timer functionality with hold feature
• SPST (Single-Pole Single-Throw) design
• No electricity required for operation

Product Highlights

This timer helps manage energy consumption by automatically shutting off after a set duration. It is a suitable choice for HVAC, indoor lighting control, and motor management.

Product Information

Standard Information

• Manufacturer: Intermatic
• Product Type: Countdown Timer

Technical Specifications

• MPN: FD15MHW
• Voltage Rating: 125 - 277 VAC
• Amperage Rating: 15 A
• Height: 4-1/8 inches
• Width: 1.75 inches
• Depth: 1-1/4 inches
• Temperature Range: -40 to 104 degrees F
• Mounting Type: Wall
• Contact Rating: 7 A @ 125 VAC
• Frequency: 50/60 Hz
