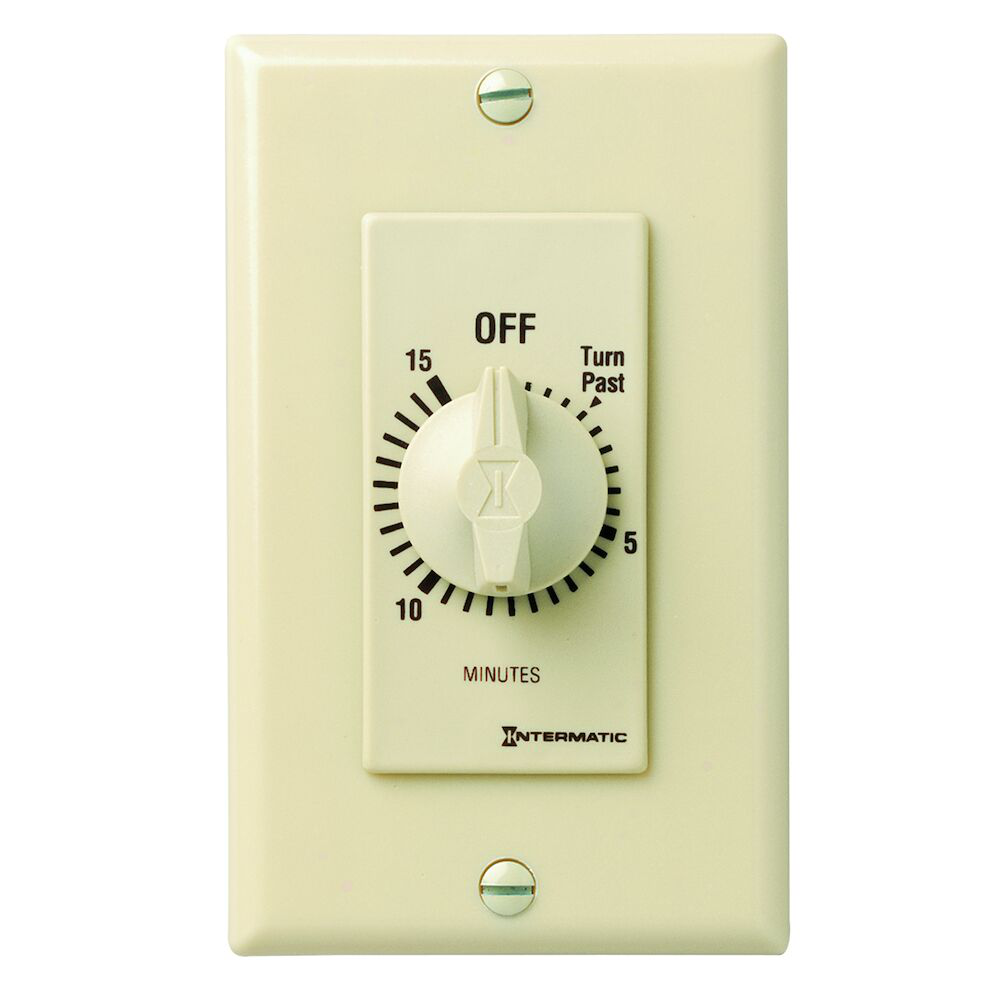

Intermatic FD15MC 15 Minute 125 to 277 VAC 60 Hz SPST Ivory Countdown Timer

Product Description

The Intermatic FD15MC is a fifteen-minute mechanical countdown timer designed for 125 to 277 VAC operations. This timer is suitable for use in various applications such as fans, lighting systems, electric motors, and heaters. Its mechanical design ensures it does not require an external power supply to function, making installation simple and efficient.

• Mechanical operation with no external power required
• Quick installation with teeter-type connections
• Compatible with incandescent, fluorescent, CFL, and LED lighting

Product Highlights

This countdown timer can replace standard or decorator style wall switches, both single and multi-gang. It automatically limits the ON time of energy-consuming devices, enhancing energy efficiency.

Product Information

Standard Information

• Brand: Intermatic
• MPN: FD15MC

Technical Specifications

• Voltage Rating: 125-277 VAC
• Amperage Rating: 15 A
• Frequency: 50/60 Hz
• Time Setting: 15 minutes
• Operating Temperature: -40 to 104 degrees F
• Dimensions: 2.79 inches height x 1.6 inches width x 1.19 inches depth
• Contact Type: SPST - 1 NO
• Application: Indoor use for lighting, fans, motors, and heaters
